Brushless DC Motors (BLDC)

A brushless DC motor (BLDC motor) replaces the brushes and commutator of a conventional DC motor with electronic commutation, so there is no sliding contact to wear out. SLW Motor manufactures brushless DC motors from 16mm to 60mm in diameter — bare BLDC motors, brushless coreless motors, and BLDC gear motors paired with planetary or worm gearboxes — built in-house at our Shenzhen factory as a direct BLDC motor manufacturer, with 15+ years of R&D experience and clients across 30+ countries.

Get a Quote View Brushless DC Motors (BLDC)

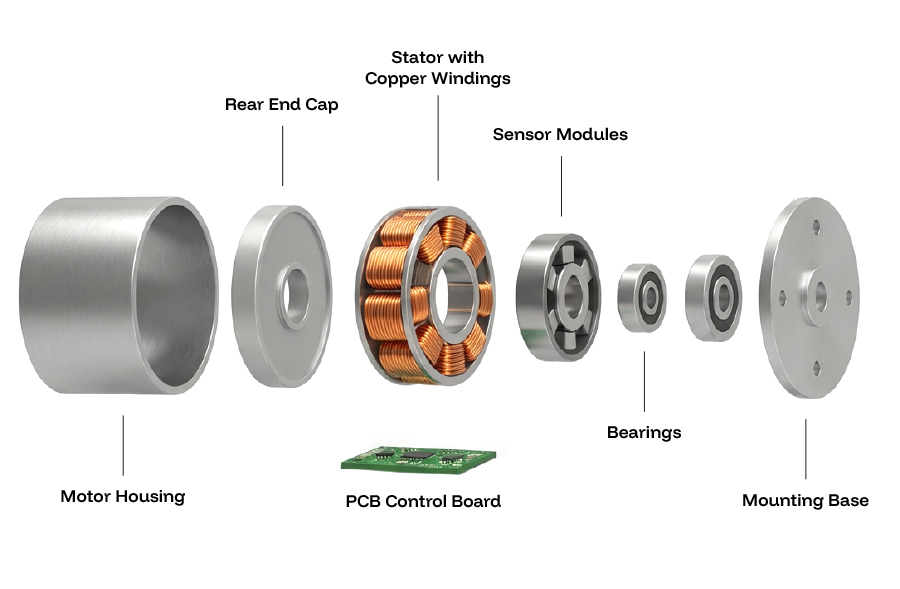

Brushless DC Motors (BLDC) Featured Image
Home Products Brushless DC Motors (BLDC)
Products

Explore Our Motors

18 Item(s) Found
Sort by :
  • Brushless DC Motors (BLDC)

Advantages

Why Source Your Brushless DC Motors From SLW Motor

In-house winding, gearbox production, and engineering support keep your brushless DC motor program moving from prototype to volume.

  • In-House Winding and Gearbox

    Motor and gearbox are built and matched under one roof, not sourced separately and mated after the fact.

  • 15+ Years of Engineering

    Engineering experience includes work for Japanese manufacturing customers, where dimensional consistency requirements run tight.

  • 30+ Countries Served

    Buyers span medical, automation, robotics, and precision equipment markets across more than 30 countries.

  • OEM/ODM Flexibility

    Start from a catalog configuration or specify a fully custom build; both run through the same production line.

  • ISO 9001:2015 Certified

    ISO 9001:2015 certification is in place, with RoHS and Halogen-Free reporting available on request.

For a lower-cost build without electronic commutation, brushed DC motors span the overlapping 12–42mm size classes, trading electronic commutation for brush wear over time; the full catalog of DC gear motors lists every motor and gearbox family side by side.

Range

Our Brushless DC Motor Range

Choose a BLDC motor by frame size, feedback method, speed, and output requirements. Our range includes Hall sensor brushless motors, sensorless brushless motors, BLDC motors with encoders, and high-speed brushless motors. For applications requiring step-by-step positioning, see our stepper gear motors.

BLDC + Gearbox

Brushless DC Gear Motors

Specifications

Specifications & Customization

Voltage, speed, torque, and gear ratio shift with winding and gearbox selection, so brushless DC motors are configured per platform rather than sold to one fixed spec. Reference figures from the catalog datasheets:

PlatformDiameterRated Voltage / Applied RangeSpeed (rated or no-load)TorqueGearbox
1636 brushless coreless motor16mm12V or 24V winding (3–24V)10,000 / 10,100 rpm rated32.6 g·cm rated, 205–215 g·cm stallNone (bare motor)
1638PT coreless BLDC + planetary16mm12–24V7–855 rpm rated (by ratio)0.45–51.87 kg·cm ratedPlanetary, 14:1–1621:1
22mm BLDC motor22mm12V / 18V / 24V (6–24V)3,100–8,600 rpm no-load270–380 g·cm at max efficiencyNone (bare motor)

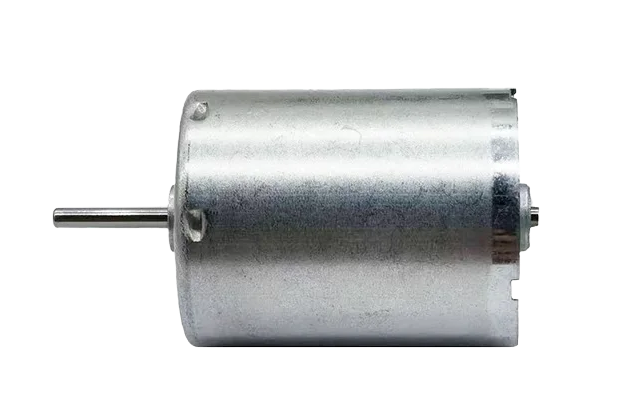

24mm BLDC gear motor24mm12V (3–12V)96–2,125 rpm no-load (by ratio)0.2–4 kg·cm rated, 8WRatios 4:1–500:1
28mm BLDC planetary gear motor28mm12V (6–48V)100–2,000 rpm no-load (by ratio)0.5–8 kg·cm rated, 11.2WPlanetary, 4:1–625:1
36mm 3650 BLDC planetary gear motor36mm24V (6–48V)Set by ratioHigh torque density, 4 gearbox lengthsPlanetary, 3.7:1–721:1
42mm BLDC planetary gear motor42mm24V (6–48V)296–2,162 rpm no-load (by ratio)2–13.5 kg·cm rated, 44.2WPlanetary, 3.7:1–721:1
58mm right-angle BLDC worm gear motor58mm12V (6–48V)129–516 rpm no-load (by ratio)2.5–20 kg·cm rated, 25.6WWorm, 15.5:1–62:1, 90° output
60mm BLDC motor60mm12V / 18V / 24V (6–48V)Per winding10–27W at max efficiencyNone (bare motor)

Voltage, speed, torque, and gear ratio shift with winding and gearbox selection, so each brushless DC motor is configured per platform rather than sold to one fixed spec.

Options

Customization Options

Every brushless dc motor build can be adjusted along several axes before it goes into production.

  • Performance

    Torque, speed, voltage, and power are tuned to the driven load.

  • Transmission

    Planetary, spur, or worm gearboxes, or plastic gear trains for lighter-duty mechanisms.

  • Materials

    Brass, stainless steel, powder-metallurgy alloys, or engineering plastics for housings and gears.

  • Operating Conditions

    Quiet operation, extended life-cycle targets, and temperature-resistant builds for harsh environments.

  • Value-Added Integration

    Hall sensor or encoder feedback, PCB soldering, and wire harness assembly, so the motor arrives ready to wire in.

Before requesting a quote, see Linear Actuator Torque & Gear Ratio Math and Motor Torque & Speed Specs: What to Check.

Applications

Brushless DC Motor Applications

Robotics & Automation

Brushless DC motors suit joint actuation and precision positioning, where their low electrical noise matters.

In robotics and automation applications, smooth motion control keeps positioning accurate.

Explore Robotics & Automation Applications
Medical Equipment

Brushless DC motors run long duty cycles in medical equipment without brush wear or maintenance intervals.

In medical equipment applications, that long life reduces service needs.

Explore Medical Equipment Applications
Industrial Machinery

Brushless DC motors drive continuous-run mechanisms in industrial machinery where brush replacement would mean downtime.

In industrial machinery applications, avoiding brush changes keeps lines running.

Explore Industrial Machinery Applications
Drones & UAVs

Brushless DC motors offer a favorable power-to-weight ratio for onboard actuation in drones and UAVs.

In drone and UAV applications, that ratio supports lightweight actuation.

Explore Drone & UAV Applications
HVAC & Air Systems

Brushless DC motors give quiet, long-life operation in dampers and actuators for HVAC and air systems.

In HVAC and air system applications, quiet, long-life operation suits dampers and actuators.

Explore HVAC & Air System Applications
Quality

Certifications & Quality Process

SLW Motor holds ISO 9001:2015 certification, with RoHS and Halogen-Free test reporting on file.

Every order runs through incoming inspection, in-process testing, and final verification, supporting consistent performance and dimensional accuracy across a production run. For a side-by-side on when brushless is worth the added electronic-commutation cost versus a brushed build, see the brushless motors vs alternatives comparison, or start from fundamentals with the brushless motors explained guide.

Quote

Request a Quote for Your Brushless DC Motor Project

Send your target voltage, torque, speed, and envelope dimensions, and an engineer will confirm feasibility and configuration options before quoting. Talk directly to our motor engineers through Contact SLW Motor to request a sample quote or scope a custom build.

Share your application requirements and our engineers will confirm feasibility and configuration options before quoting.

Built to your design

OEM/ODM & Custom Engineering

From Prototype to Production

Sample customization and stable bulk delivery run on the same production line, so your brushless dc motor design can move from prototype to production run without switching suppliers mid-project.

What We Customize

  • Winding changes: tailored to your performance needs
  • Gearbox pairing: matched to your application
  • Connector & harness assembly: ready to install
FAQ

FAQ

Answers on how a brushless dc motor works, what it needs to run, and how SLW Motor handles sizing, samples, tooling, and shipping.

Brushless DC motor vs brushed DC motor?
A brushed motor switches current mechanically through carbon brushes and a commutator; a brushless DC motor switches it electronically through a driver, with no sliding contact.
Does a BLDC motor need a controller?
Yes. Every brushless DC motor needs an electronic driver (ESC) to commutate its windings and cannot run directly from a battery the way a brushed motor can.
What size brushless DC motors does SLW Motor make?
The BLDC line runs from 16mm coreless brushless motors up to 60mm frames, in 12V, 18V, and 24V windings across a 6–48V applied range, as bare motors or with gearboxes.
Is there a minimum order quantity (MOQ)?
SLW Motor does not publish a fixed MOQ. Sample runs and small-batch customization are supported alongside stable bulk production, with batch size confirmed during quoting.
How long does a sample take?
Sample timing depends on whether the build is a catalog configuration or a custom design. Production runs on optimized scheduling with strict process control; confirm timing at quote.
Is there a tooling cost for custom builds?
Tooling cost, when required, depends on the customization scope — custom housings, shafts, or connector integration typically involve tooling, while catalog configurations do not.
How long does full customization take?
Timeline scales with scope — winding changes, gearbox pairing, and encoder or PCB integration each add engineering steps. Inquiry replies and quotation feedback come back promptly.
What shipping terms apply?
Shipping terms are confirmed per order based on destination, order size, and configuration. Contact SLW Motor directly to arrange terms for your specific shipment.
