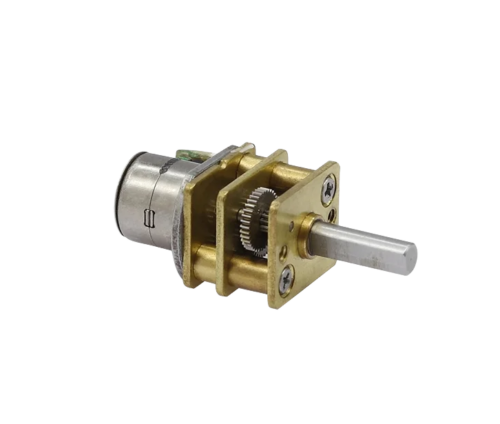

8mm Diameter Stepper Motor With 12mm Gearbox

The 12mm gearbox provides additional structural support while retaining the compact 8mm motor platform.

Get a Quote
8mm stepper motor with 12mm gearbox for compact positioning systems
Specs

Key Features

By pairing an 8mm stepper motor with a larger gearbox platform, this configuration improves mechanical tolerance while maintaining precise step-by-step motion control.

  • Compact stepper motor designed for accurate incremental movement
  • Larger gearbox platform offering improved installation tolerance
  • Inline transmission structure for straightforward mechanical alignment
  • Suitable for low-voltage stepper control systems
  • Designed for compact mechanisms requiring added structural margin
technical Specs

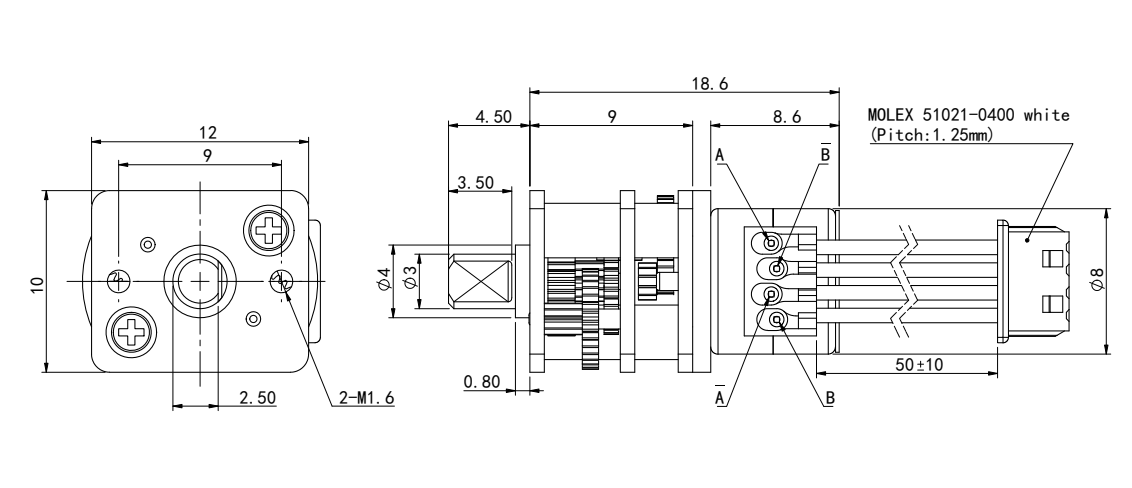

Motors Specifications

Reduction ratio 10 30 50 100 150 210 250 298
Gearbox length mm 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0
Step angle ° 1.800 0.600 0.360 0.180 0.120 0.086 0.072 0.060
Pull in torque(500pps) g.cm 35 92 154 308 462 647 770 918
Rated speed(500pps) rpm 150 50 30 15 10 7.14 6.0 5.03

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Expanded Gearbox Platform

    The 12mm gearbox provides more internal space, helping reduce sensitivity to assembly tolerance.

  • Precise Step Control

    Stepper motor design supports consistent and repeatable positioning.

  • Stable Integrated Assembly

    Motor and gearbox are assembled as a matched unit to maintain alignment accuracy.

  • Better Tolerance for Compact Systems

    Suitable for designs where slightly increased structural margin improves reliability.

Custom

Beyond the Standard: Performance Customized

  • 01

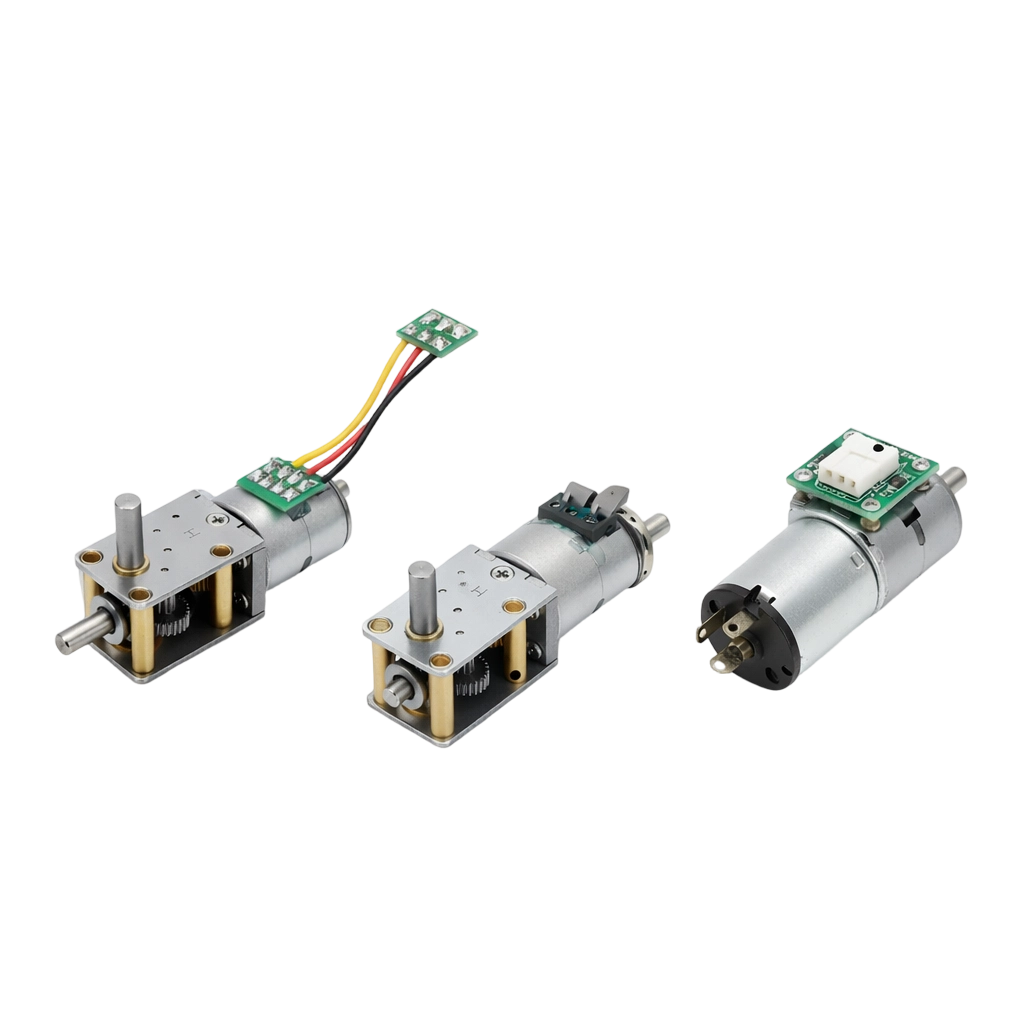

    Wiring & Lead Arrangement
    Lead wire length and routing can be adapted to fit compact enclosures and controller placement.
  • 02

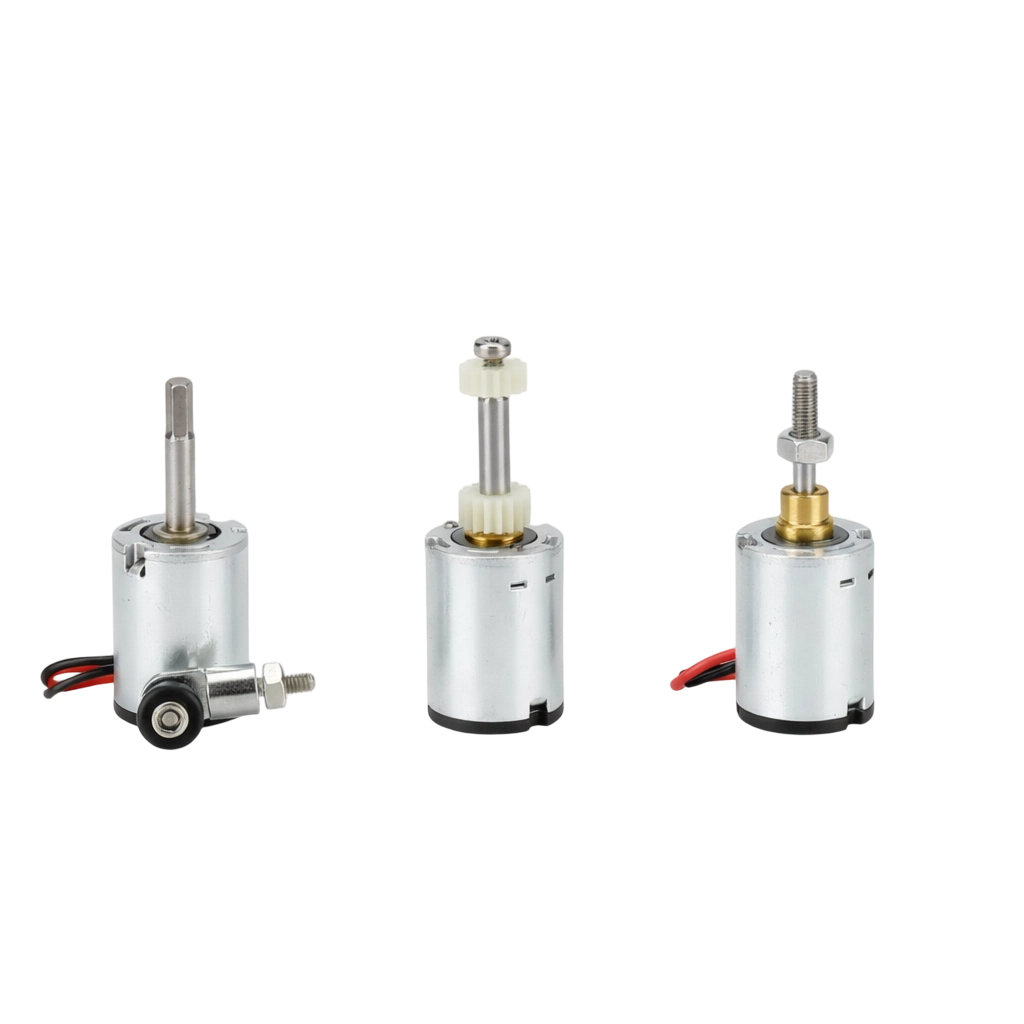

    Output Shaft Interface
    Output shaft configuration can be reviewed to match different driven components.
  • 03

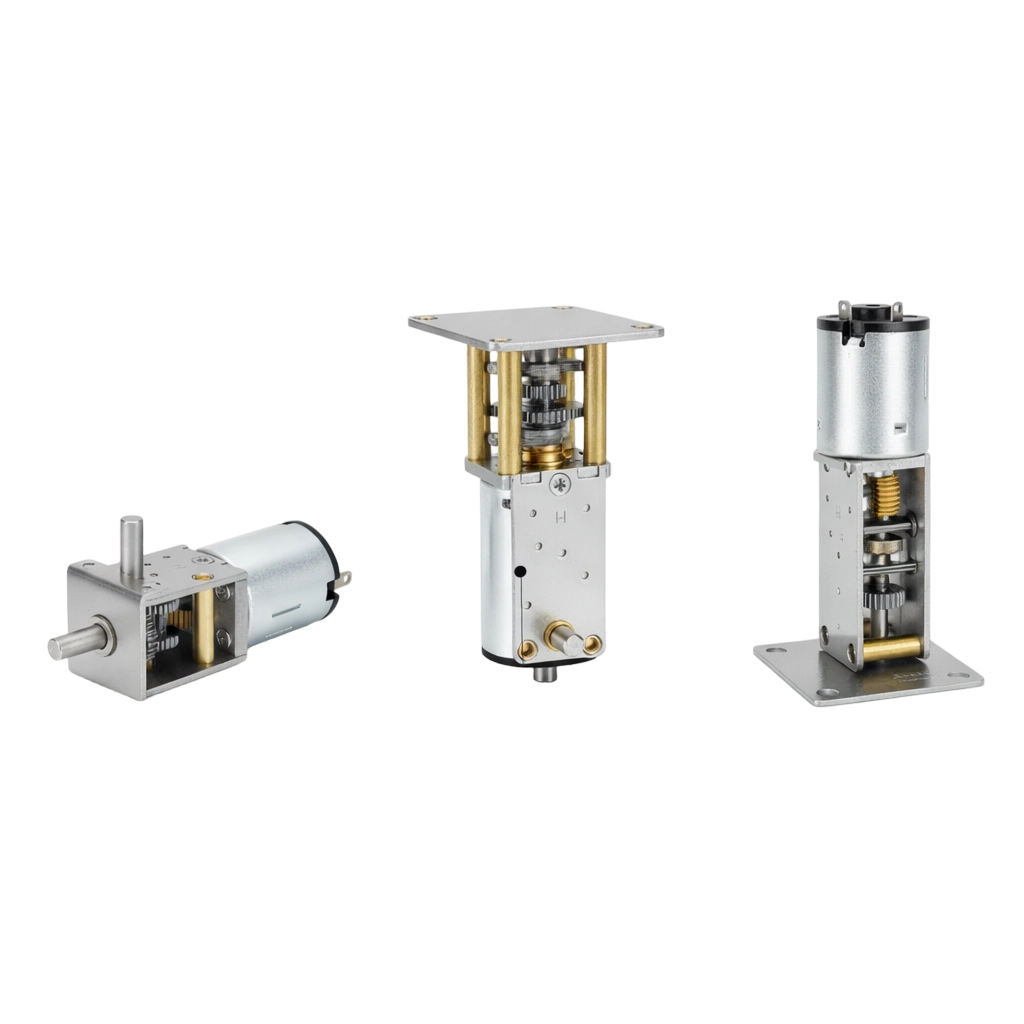

    Installation Orientation
    The inline gearbox structure supports flexible mounting directions within compact layouts.
  • 04

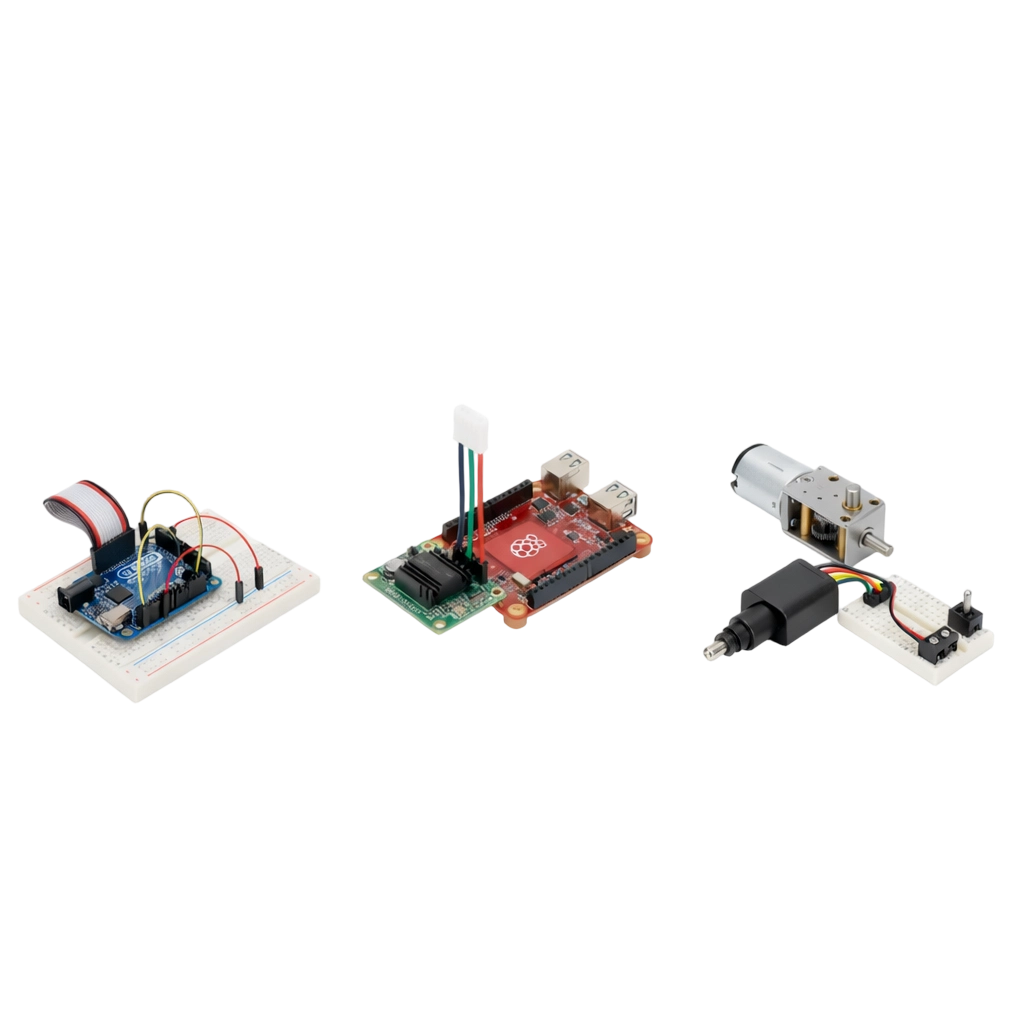

    Control System Matching
    Stepper configuration can be aligned with driver settings and control methods.
  • 05

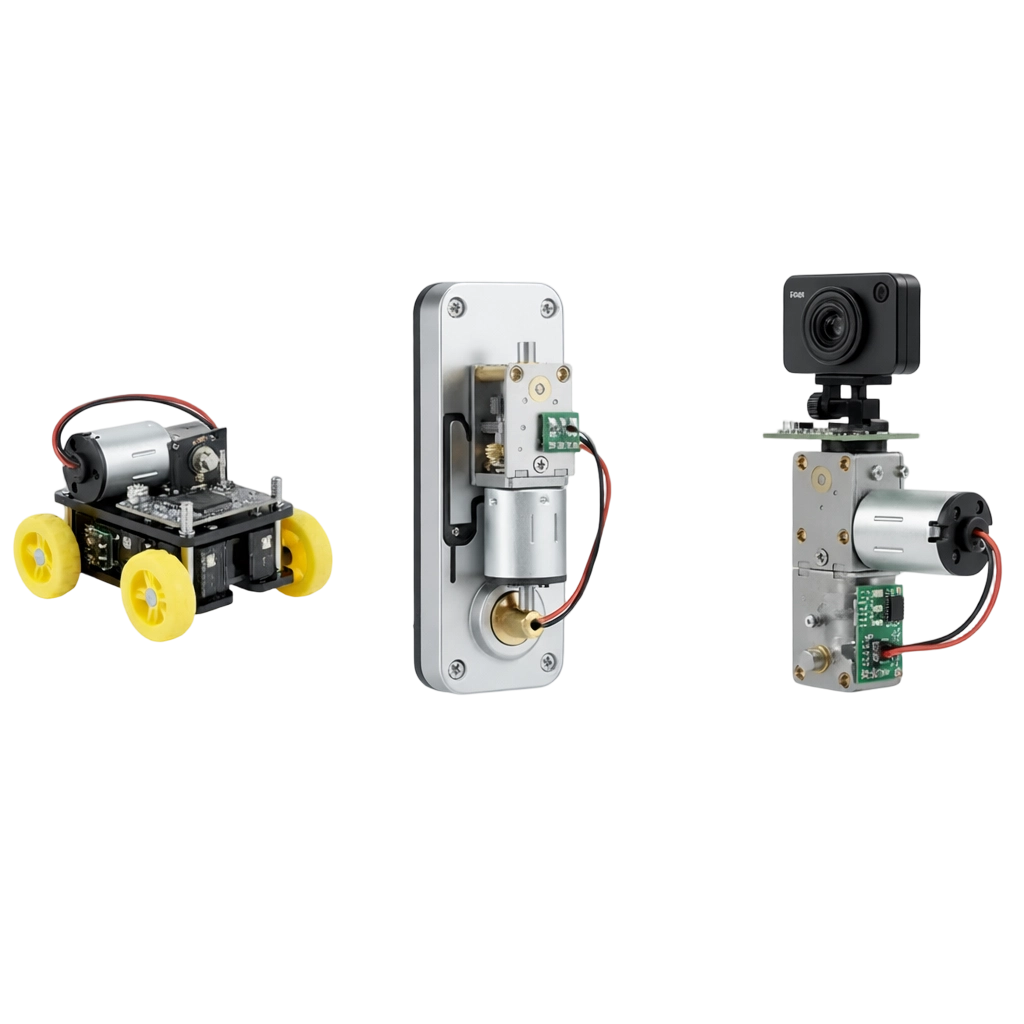

    Application-Level Adaptation
    Customization is evaluated based on layout tolerance and motion control requirements.
  • Wiring & Lead Arrangement
  • Output Shaft Interface
  • Installation Orientation
  • Control System Matching
  • Application-Level Adaptation

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

Our team can help determine whether the 10mm or 12mm gearbox platform better suits your layout.

How does this model differ from the 10mm gearbox version?
The larger gearbox platform provides improved installation tolerance while keeping the motor size compact.
Is this motor suitable for precision positioning?
Yes. It maintains accurate step control with improved mechanical robustness.
Can this model be used in compact devices?
Yes. It is designed for compact systems that benefit from added structural margin.
Is this product suitable for repeat production?
Yes. It supports stable production for standard configurations.
