15mm Diameter Stepper Motor With 90 Degree Shaft Gearbox

The 15mm platform provides greater structural robustness for right-angle positioning systems with higher mechanical demands.

Get a Quote

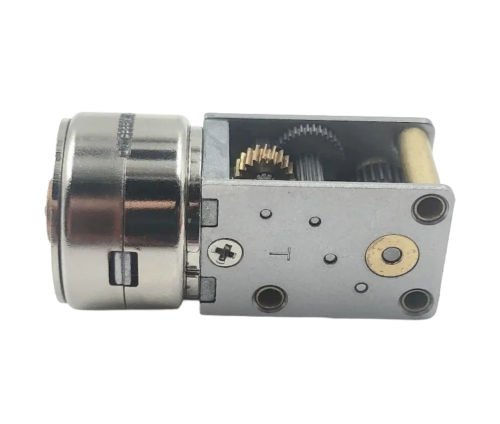

15mm stepper motor with 90 degree shaft gearbox for robust positioning
Specs

Key Features

This configuration combines a larger stepper motor with a right-angle gearbox for improved rigidity in compact layouts.

  • 15mm stepper motor for enhanced mechanical stability
  • 90 degree output shaft for directional transmission
  • Gearbox structure designed for compact right-angle layouts
  • Compatible with low-voltage stepper control systems
  • Designed for stability-focused positioning applications

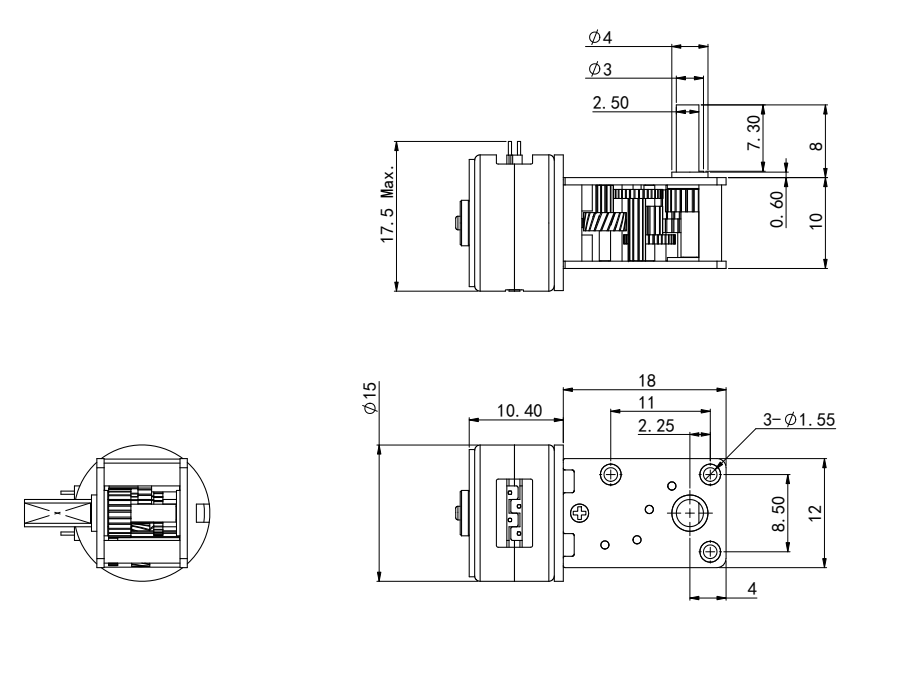

technical Specs

Motors Specifications

Reduction ratio 42 63 80 105  118 121 127 158 200 230
Gearbox length

mm

 10 10 10 10 10 10 10 10 10 10
Step angle ° 0.429 0.286 0.225 0.171 0.153 0.149 0.142 0.114 0.090 0.078
Pull in torque(500pps) g.cm 529 794 896 1176 1322 1355 1422 1770 2240 1932
Rated speed(500pps) rpm 150 50 30 15 10 7.14 6.0 5.03 3.94 1.5

For additional customization or reference configurations, please feel free to contact us.
