10mm Diameter Stepper Motor With Gearbox

The larger motor diameter improves balance and rigidity for compact systems that require smoother, repeatable positioning.

Get a Quote

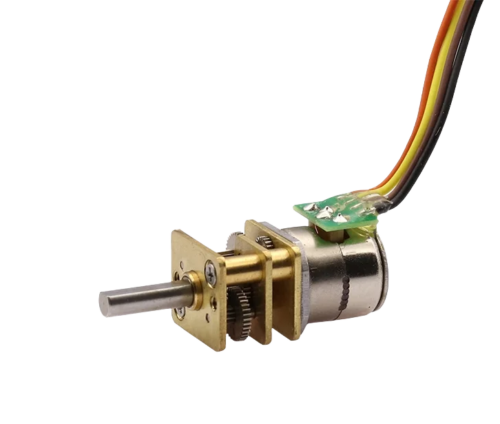

10mm stepper motor with gearbox for smooth precise positioning
Specs

Key Features

With a larger motor diameter, this configuration improves overall rigidity while maintaining precise step-by-step motion control in compact assemblies.

  • 10mm stepper motor designed for stable incremental movement
  • Compact inline gearbox for direct axial transmission
  • Improved mechanical balance compared to smaller stepper motors
  • Suitable for low-voltage stepper control systems
  • Designed for compact mechanisms requiring smoother motion behavior
technical Specs

Motors Specifications

Reduction ratio 10 30 50 100 150 210 250 298 380 1000
Gearbox length mm 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 12.0
Step angle ° 1.800 0.600 0.360 0.180 0.120 0.086 0.072 0.060 0.047 0.018
Pull in torque(500pps) g.cm 59 158 264 528 792 1109 1320 1573 2006 3960
Rated speed(500pps) rpm 150 50 30 15 10 7.14 6.0 5.03 3.94 1.5

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Improved Structural Stability

    The 10mm motor diameter provides better balance during operation than smaller stepper motors.

  • Compact Gearbox Integration

    The gearbox size supports compact layouts without adding installation complexity.

  • Consistent Assembly Quality

    Motor and gearbox are assembled as a matched unit to maintain alignment accuracy.

  • Suitable for Precision Motion Systems

    Well suited for positioning mechanisms requiring smooth and repeatable movement.

Custom

Beyond the Standard: Performance Customized

  • 01
    Wiring & Lead Arrangement
    Lead length and exit direction can be adapted to match controller placement and enclosure layout.
  • 02
    Output Shaft Interface
    Output shaft configuration can be reviewed to ensure compatibility with driven components.
  • 03
    Installation Orientation
    Inline gearbox structure supports flexible mounting directions within compact systems.
  • 04
    Control System Matching
    Stepper configuration can be aligned with driver settings for smooth operation.
  • 05
    Application-Level Adaptation
    Customization is evaluated based on motion stability and installation environment.
  • Wiring & Lead Arrangement
  • Output Shaft Interface
  • Installation Orientation
  • Control System Matching
  • Application-Level Adaptation

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

Our team can help assess whether an 8mm or 10mm stepper motor better suits your motion requirements.

How does this model differ from 8mm stepper motor versions?
The 10mm motor provides improved mechanical stability and smoother operation.
Is this motor suitable for precision positioning systems?
Yes. It supports accurate and repeatable step control.
Does the gearbox affect installation complexity?
The compact inline gearbox allows straightforward mechanical integration.
Is this model suitable for repeat production?
Yes. It supports stable supply for standard configurations.
