8mm Diameter Stepper Motor With 90 Degree Shaft Gearbox

The smallest right-angle option redirects output by 90° for tightly packed mechanisms with limited axial space.

Get a Quote

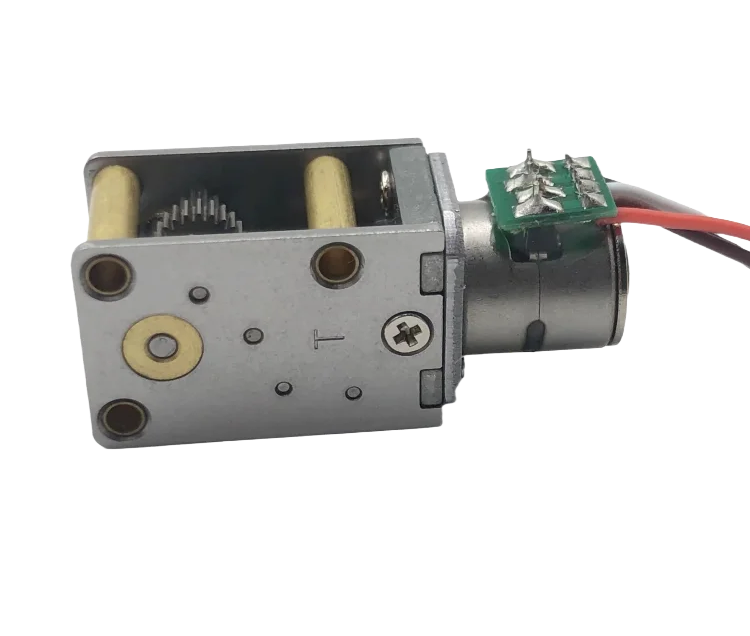

8mm stepper motor with 90 degree shaft gearbox
Specs

Key Features

This configuration separates the motor axis from the output shaft, allowing greater flexibility in compact mechanical layouts.

  • Right-Angle Output Layout: Transmits motion through a 90° output direction, making it easier to integrate the motor into space-constrained mechanisms.
  • Compact Direction Change: Changes the transmission direction without requiring the motor and driven component to share the same axis.
  • Precise Low-Speed Positioning: Combines stepper motor control with gearbox reduction for stable, controlled movement at low output speeds.
  • Flexible Gear Ratios: Multiple reduction ratios are available to match different output speed and torque requirements.

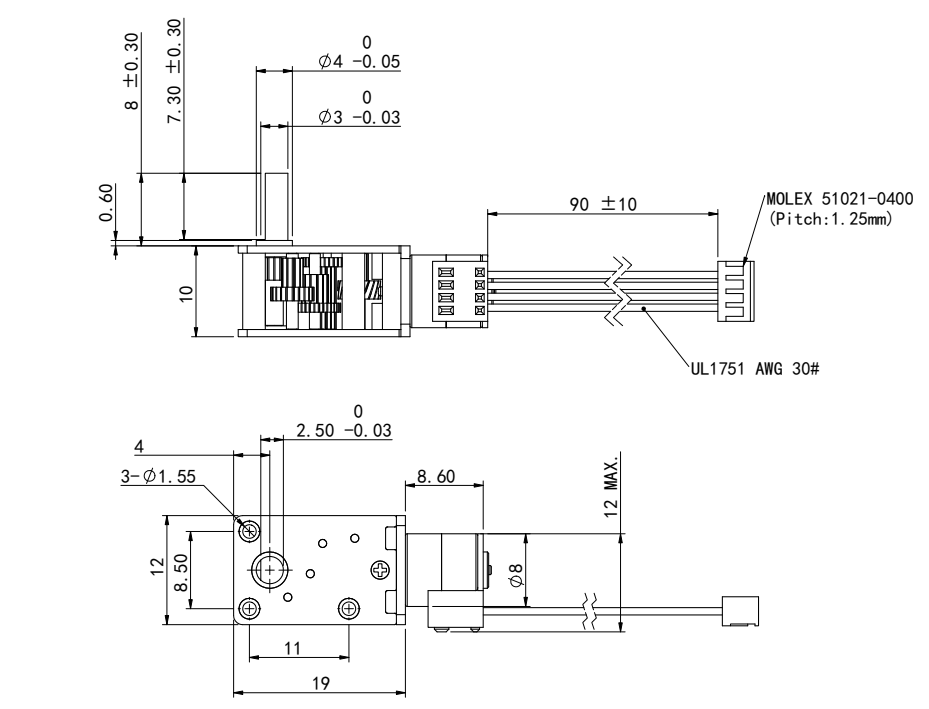

technical Specs

Motors Specifications

 Reduction ratio 42 63 80 105 118 121 127 158
Gearbox length

mm

 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0
Step angle ° 0.429 0.286 0.225 0.171 0.153 0.149 0.142 0.114
Pull in torque(500pps) g.cm 146 194 246 323 363 373 391 487
Rated speed(500pps) rpm 150 50 30 15 10 7.14 6.0 5.03

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Right-Angle Output Layout

    The 90° output shaft redirects motion for mechanisms where the driven component cannot be aligned directly with the motor.

  • Compact Direction Change

    Provides a compact way to change the transmission direction while reducing the axial installation space required.

  • Precise Low-Speed Positioning

    Gear reduction supports controlled low-speed movement and accurate incremental positioning in compact mechanisms.

  • Flexible Gear Ratios

    Available reduction ratios allow designers to balance output speed, torque and positioning requirements for different applications.

Custom

Beyond the Standard: Performance Customized

  • 01
    Wiring & Lead Arrangement
    Lead routing adapted to suit offset installation layouts.
  • 02
    Output Shaft Interface
    Shaft length and end form reviewed to match driven components.
  • 03
    Installation Orientation
    Parallel structure supports varied mounting directions.
  • 04
    Control System Matching
    Stepper configuration aligned with driver requirements.
  • 05
    Application-Level Adaptation
    Customization evaluated based on mechanical layout needs.
  • Wiring & Lead Arrangement
  • Output Shaft Interface
  • Installation Orientation
  • Control System Matching
  • Application-Level Adaptation

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

90° output configurations are often chosen to solve layout constraints rather than power needs.

Why choose a 90° output shaft instead of inline?
It allows more flexible layouts when direct axial alignment is not possible.
Is positioning accuracy affected?
No. Step control accuracy is maintained.
Does the 90 degree gearbox change the step resolution?
No. The step resolution remains determined by the stepper motor and control settings.
Is this model suitable for intermittent positioning tasks?
Yes. It is commonly used in applications requiring controlled, intermittent motion within compact layouts.
