25mm Brushed DC Motor with Dual-Output-Shaft Worm Gearbox

Dual output shafts allow the 25mm unit to drive mechanisms on both sides while maintaining high reduction and controlled output speed.

Get a Quote

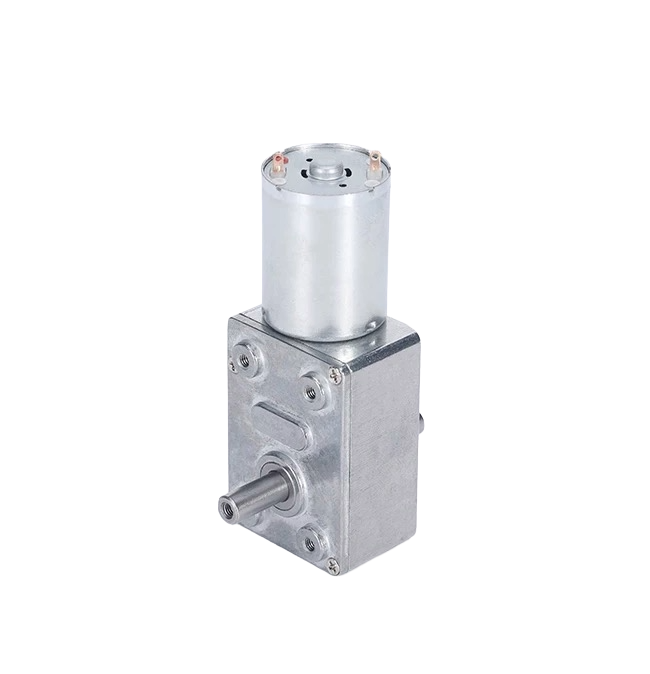

25mm brushed motor with dual output shaft worm gearbox
Specs

Key Features

This model uses a worm gearbox with two-directional shaft output, so you tune output behavior by reduction ratio and keep linkage routing flexible without changing the gearbox layout.

  • Very wide reduction range lets you hit slow output speeds by ratio selection, not by forcing the controller to “fight” the mechanics
  • Torque-dominant output suits mechanisms that need stronger low-speed drive rather than fast response
  • Two-directional shaft layout supports left-right linkage routing and dual-side drive points in the same assembly
  • Stable low-speed behavior fits adjustment, indexing, and actuation mechanisms where the load changes during motion
  • Brushed DC control simplicity works for straightforward forward/reverse and intermittent duty in compact systems
technical Specs

Motors Specifications

Reduction ratio No-Load Rated Load Stall
Rated Voltage Speed (RPM ±10%) Current (A) Speed (RPM ±10%) Current (A) Torque (Kg.cm) Power (W) Torque (Kg.cm) Current (A)
32.5 12 261 0.12 180 0.75 1 2.5 4.1 3.1
53.5 12 158 0.12 120 0.75 1.5 2.5 4.3 3.1
62.4 12 136 0.12 100 0.75 2 2.5 6.1 3.1
68.7 12 124 0.12 95 0.75 2.5 2.5 6.8 3.1
77.7 12 109 0.12 88 0.75 3 2.5 8.1 3.1
100 12 85 0.12 72 0.75 4 2.5 9.6 3.1
132 12 64 0.12 55 0.75 5 2.5 11.5 3.1
150 12 56.6 0.12 50 0.75 5 2.5 12.4 3.1
168 12 50 0.12 45 0.75 6 2.5 16.5 3.1
192 12 44 0.12 40 0.75 6 2.5 17.2 3.1
300 12 28 0.12 23 0.75 10 2.5 22 3.1
324 12 26 0.12 22 0.75 10 2.5 24 3.1
506 12 17 0.12 13 0.75 16 2.5 60 3.1
600 12 14 0.12 11 0.75 20 2.5 70 3.1
1012 12 8 0.12 5 0.75 25 2.5 75 3.1
3037 12 2.8 0.12 2 0.75 25 2.5 120 3.1

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • High Reduction Selection for Output Control

    Choose this worm gearbox option when you need lower output speed and higher torque scaling within a compact gearbox block.

  • Dual-Output Shaft for Layout Flexibility

    A two-directional shaft layout supports mechanisms that drive a linkage from both sides or need a convenient shaft interface on your preferred side.

  • Predictable Low-Speed Drive Behavior

    This platform fits applications that prioritize controlled motion and steady output over high-speed performance.

  • Simple Integration for Compact Assemblies

    A compact motor and gearbox package helps reduce mechanical rework when you need a self-contained drive unit.

Custom

Beyond the Standard: Performance Customized

  • 01
    Reduction Ratio Window Planning
    We help you narrow a “safe ratio window” based on your target output speed and load behavior, so you avoid ratios that feel too slow, too weak, or too sensitive to friction.
  • 02
    Dual-Shaft Drive-Side Definition
    We confirm which side actually drives the mechanism, whether the opposite side needs to be free, supported, or coupled, and how you prevent unwanted loading on the non-drive side.
  • 03
    Worm Output Behavior Tuning
    Worm transmissions behave differently under back-force and friction changes. We align your application expectations with the chosen ratio so the output remains controllable through the full travel.
  • 04
    Current & Heat Under High Reduction
    High ratios can increase dwell time and low-speed load exposure. We match motor choice and control approach to keep current peaks and heat rise within a practical operating envelope.
  • 05
    Linkage Integration & End-Stop Protection
    For actuators and adjustment mechanisms, end-stops and jams happen. We review your linkage style and suggest ratio and control safeguards that reduce shock loading and stall stress in real use.
  • Reduction Ratio Window Planning
  • Dual-Shaft Drive-Side Definition
  • Worm Output Behavior Tuning
  • Current & Heat Under High Reduction
  • Linkage Integration & End-Stop Protection

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

If you share your available space and the driven load type, we can help narrow the most suitable configuration quickly.

How do I choose the right reduction ratio from the table?
Start from your required output speed, then confirm the rated torque margin you need at that speed based on your real load and duty cycle.
When should I choose a worm gearbox instead of a planetary gearbox?
Choose a worm gearbox when you prefer higher reduction selection in a compact block and your mechanism benefits from controlled low-speed output.
What does two-directional shaft mean for integration?
It supports a dual-ended output shaft layout, which helps you route power to your mechanism from the side that best matches your assembly.
What should I share to confirm the best-fit configuration quickly?
Share supply voltage, target output speed, estimated load torque, duty cycle, and whether your mechanism back-drives the output shaft.
Is this suitable for repeat production?
Yes. It supports standard configurations with selectable ratios for consistent sourcing and assembly planning.
