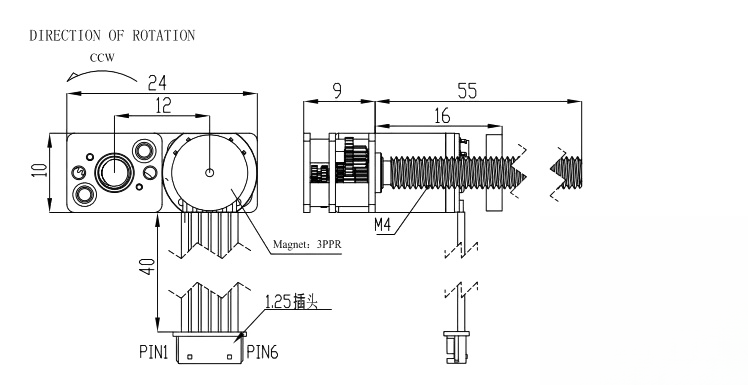

12mm Diameter Brushed Motor With M4 Screw Output Shaft Gearbox And Encoder

This 12mm brushed motor combines an M4 screw output shaft gearbox with an integrated encoder for controlled linear motion and position feedback in compact electromechanical systems.

Get a Quote

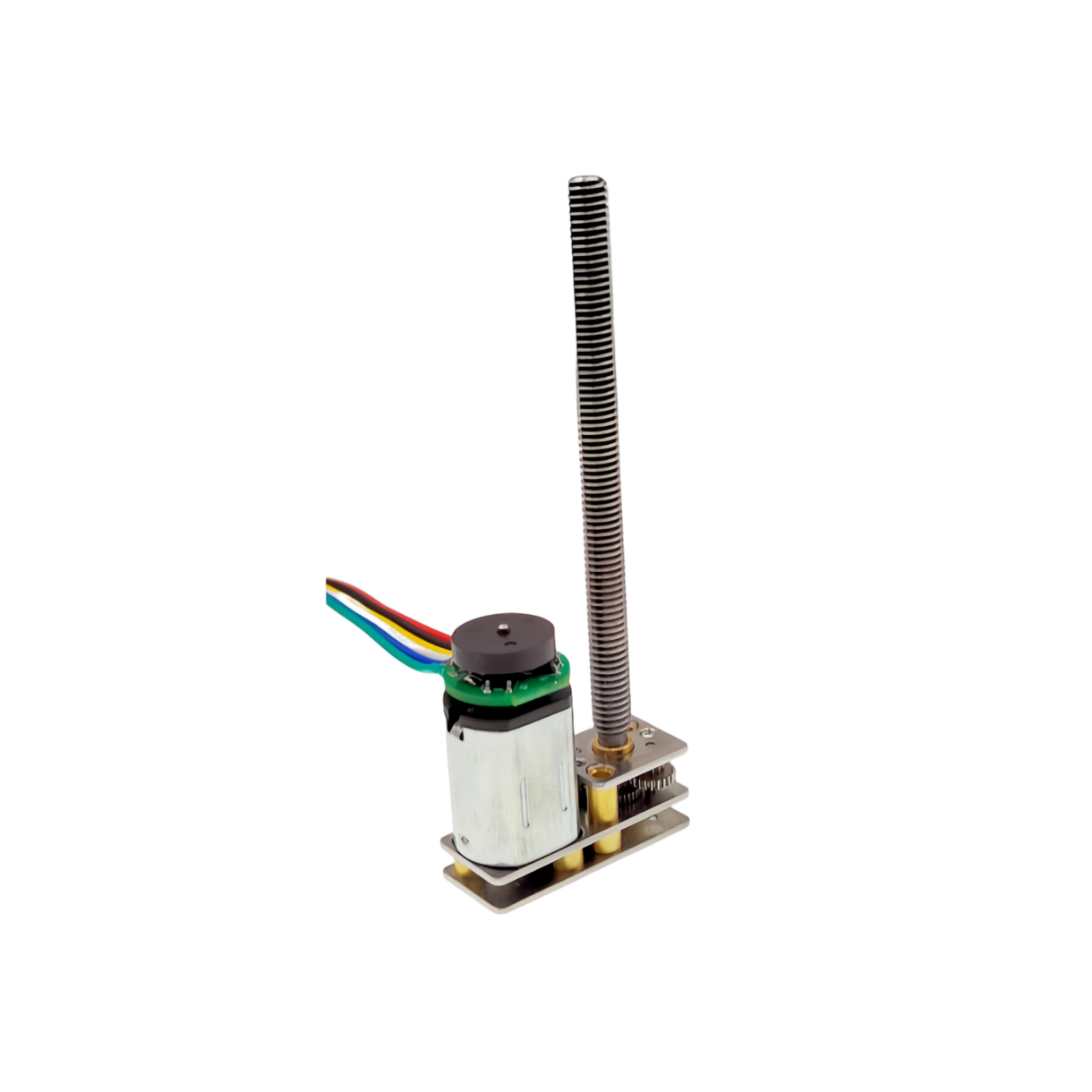

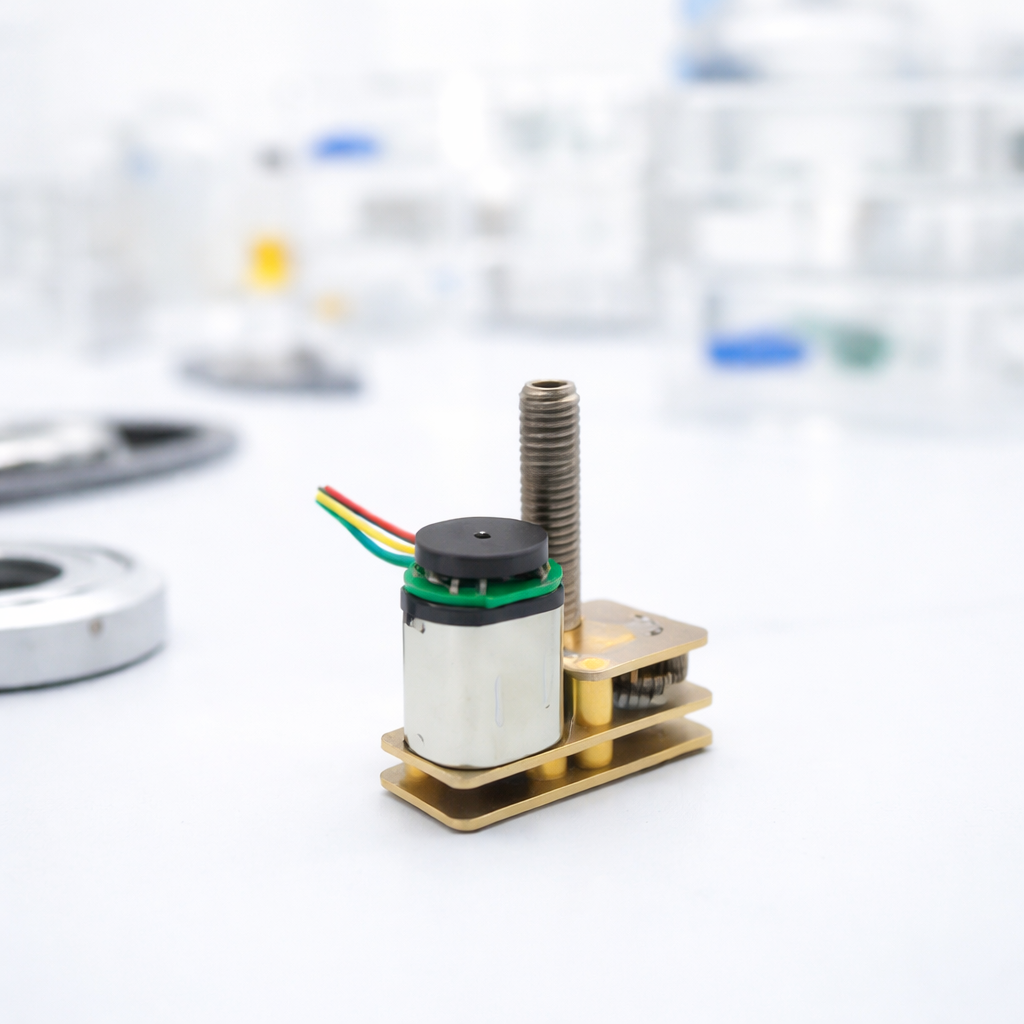

12mm brushed motor with M4 screw shaft gearbox and encoder for linear systems
Specs

Key Features

This model integrates a 12mm brushed motor, M4 screw output shaft gearbox, and encoder for controlled linear movement and position feedback in compact electromechanical designs.

  • Integrated M4 screw output shaft for direct linear motion
  • Built-in encoder supports position and movement feedback
  • Compact gearbox structure for miniature mechanisms
  • Combined motor, gearbox, screw shaft, and encoder assembly
  • Multiple reduction ratios for different speed and travel requirements
  • Designed for low-voltage applications within a 3V–12V range
technical Specs

Motors Specifications

Reduction ratio No-Load Rated Load Stall
Rated Voltage (V) Speed (RPM±10%) Current (A) Speed (RPM±10%) Current (A) Torque (Kg.cm) Power (W) Torque (Kg.cm) Current (A)
18 12 1055 21 9000 65 16 0.80 110 340
42 12 452 21 385 65 38 0.80 257 340
63 12 301 21 257 65 57 0.80 385 340
80 12 237 21 202 65 72 0.80 490 340
102 12 186 21 158 65 92 0.80 624 340
105 12 180 21 154 65 95 0.80 642 340
115 12 165 21 140 65 104 0.80 703 340
121 12 157 21 103 65 109 0.80 740 340
127 12 149 21 108 65 114 0.80 777 340
157 12 121 21 103 65 141 0.80 960 340
244 12 77 21 66 65 220 0.80 1493 340
298 12 63 21 54 65 268 0.80 1823 340
302 12 62 21 53 65 272 0.80 1848 340
311 12 61 21 52 65 280 0.80 1903 340
345 12 55 21 46 65 310 0.80 2111 340
604 12 31 21 26 65 543 0.80 3696 340
898 12 21 21 18 65 808 0.80 5459 340
992 12 19 21 16 65 992 0.80 6071 340
1032 12 18 21 15 65 928 0.80 6315 340
1576 12 12 21 10 65 1418 0.80 9645 340

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Linear Motion Integration

    This model combines rotary motor drive and screw transmission to support compact linear actuation.

  • Encoder-Assisted Control

    The integrated encoder provides motion feedback for position monitoring and closed-loop control in compact linear actuation systems.

  • Compact Multi-Function Assembly

    The motor, gearbox, M4 screw shaft, and encoder are integrated into one compact unit, reducing separate installation and alignment work.

  • Designed for Precision-Oriented Systems

    Suitable for applications where controlled displacement and repeatable positioning are required.

Custom

Beyond the Standard: Performance Customized

  • 01
    Screw Shaft Parameters
    Screw pitch, effective stroke length, and end configuration can be reviewed based on linear travel requirements.
  • 02

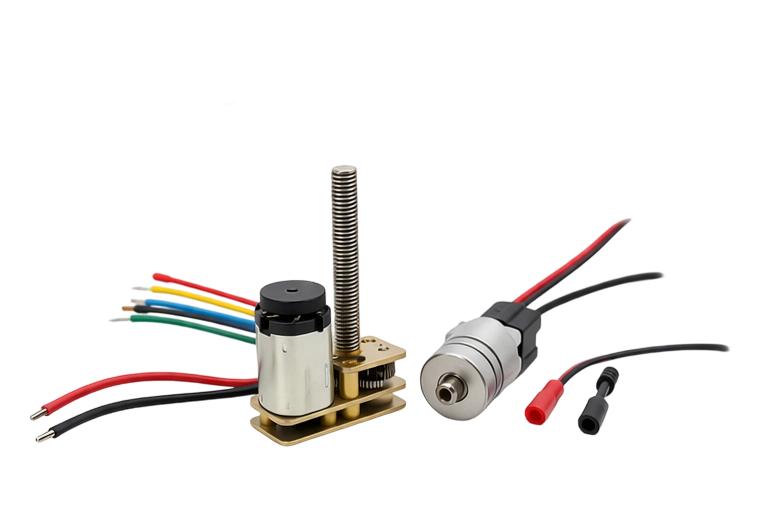

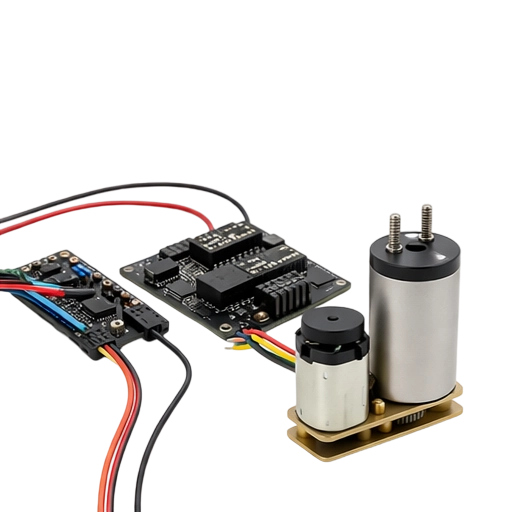

    Encoder Output Options
    Encoder resolution or signal type can be discussed to match control system needs.
  • 03
    Linear Load Considerations
    Configuration can be evaluated according to expected axial load and duty cycle.
  • 04

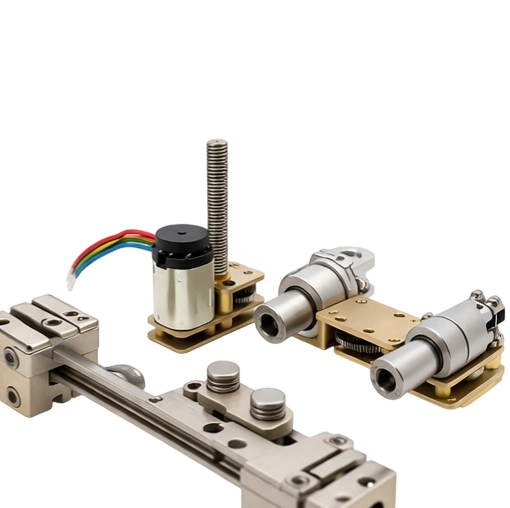

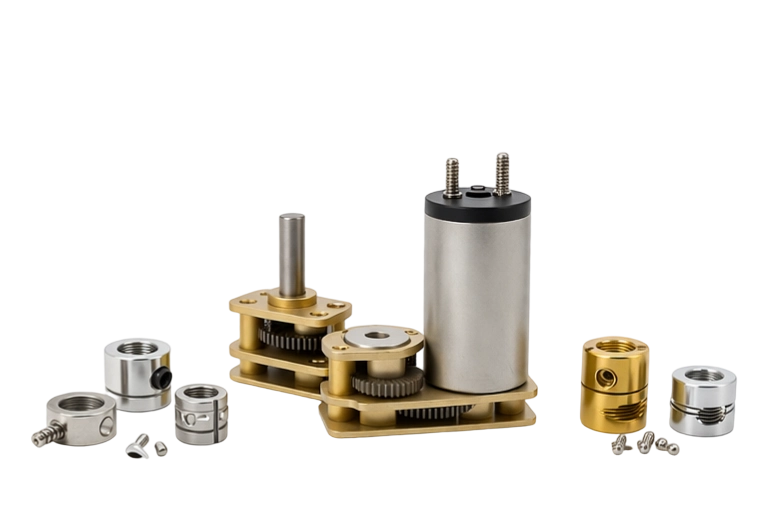

    Mounting and Reference Design
    Housing interfaces and reference surfaces can be adapted for linear module integration.
  • 05
    System-Level Integration Review
    Customization can be discussed based on complete linear actuation and control requirements.
  • Screw Shaft Parameters
  • Encoder Output Options
  • Linear Load Considerations
  • Mounting and Reference Design
  • System-Level Integration Review
  • Screw Shaft Parameters

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

For detailed selection guidance or project-specific requirements, please contact our team for further support.

What type of motion does this motor provide?
It is designed to provide linear motion through an integrated screw shaft mechanism.
What is the role of the encoder?
The encoder provides basic feedback for position or movement monitoring.
What voltage range does this model support?
It operates within a 3V to 12V voltage range.
Is the screw shaft supplied as standard?
Yes. The screw shaft is integrated into the gearbox as part of the assembly.
Can this model be customized for specific linear applications?
Customization options are available depending on linear motion and control requirements.
