10mm Diameter Stepper Motor With 90 Degree Shaft Gearbox

A larger 10mm motor platform adds rigidity while the right-angle gearbox supports compact directional transmission.

Get a Quote

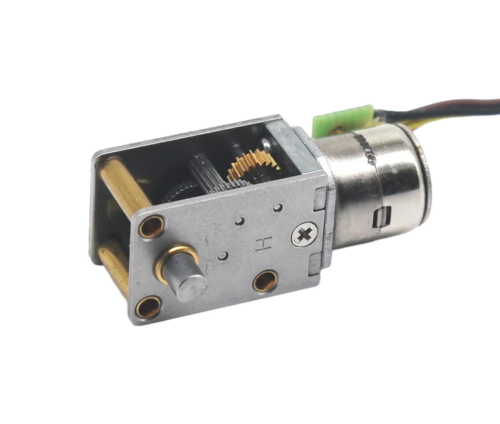

10mm stepper motor with 90 degree shaft gearbox for right-angle drive
Specs

Key Features

By increasing motor diameter, this model improves stability while maintaining right-angle transmission capability.

  • 10mm stepper motor for improved mechanical balance
  • 90 degree output shaft for directional flexibility
  • Compact gearbox suited for controlled layouts
  • Suitable for low-voltage stepper control systems
  • Designed for stable right-angle positioning applications

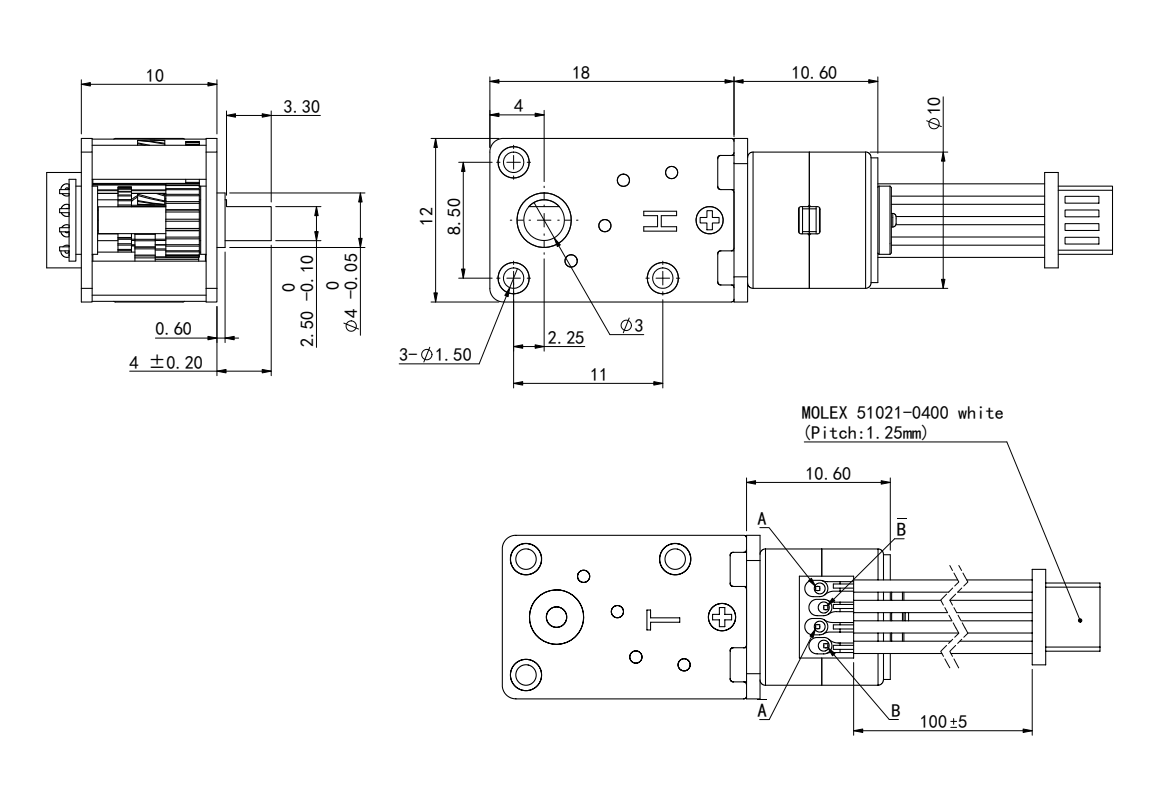

technical Specs

Motors Specifications

Reduction ratio 42 63 80 105  118 121 127 158 200 230
Gearbox length

mm

 10 10 10 10 10 10 10 10 10 10
Step angle ° 0.429 0.286 0.225 0.171 0.153 0.149 0.142 0.114 0.090 0.078
Pull in torque(500pps)

g.cm

 249 333 422 554 623 639 671 834 1056 911
Rated speed(500pps) rpm 150 50 30 15 10 7.14 6.0 5.03 3.94 1.5

For additional customization or reference configurations, please feel free to contact us.
