36mm Diameter BLDC Motor With Worm Gearbox

The 36mm brushless motor with worm gearbox combines efficient brushless drive and stable worm reduction, supporting controlled motion for applications requiring smoother operation and longer duty cycles.

Get a Quote

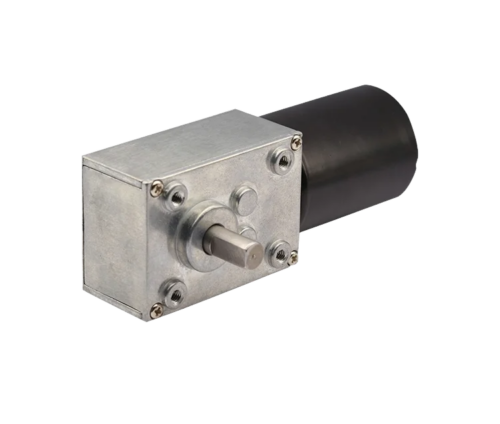

  • 36mm Diameter BLDC Motor With Worm Gearbox Featured Image
Specs

Key Features

Built around a 36mm brushless motor and a worm gearbox platform, this model focuses on drive efficiency and operational smoothness rather than purely mechanical size or load presence.

  • Brushless motor design supports smoother continuous operation
  • Worm gearbox provides controlled speed reduction and stable output
  • Compact mid-size gearbox platform for integrated assemblies
  • Integrated motor and gearbox structure simplifies system design
  • Supports applications operating within a 6V–24V voltage range
technical Specs

Motors Specifications

Reduction ratio No-Load Rated Load Stall
Rated Voltage (V) Speed (RPM±10%) Current (A) Speed (RPM±10%) Current (A) Torque (Kg.cm) Power (W) Torque (Kg.cm) Current (A)
15.5 12 516 0.55 432 3.5 2.5 25.6 9 12.2
25 12 320 0.55 280 3.5 5 25.6 14 12.2
31 12 258 0.55 210 3.5 10 25.6 16.5 12.2
50 12 160 0.55 125 3.5 15 25.6 28 12.2
62 12 129 0.55 105 3.5 20 25.6 33 12.2
73.5 12 108 0.55 98 3.5 20 25.6 40 12.2
96 12 83 0.55 73 3.5 25 25.6 55 12.2
100 12 80 0.55 72 3.5 25 25.6 55 12.2
120 12 66 0.55 55 3.5 30 25.6 65 12.2
147 12 54 0.55 44 3.5 30 25.6 68 12.2
156 12 51 0.55 42 3.5 35 25.6 70 12.2
193 12 41 0.55 32 3.5 35 25.6 80 12.2
239 12 33 0.55 28 3.5 40 25.6 90 12.2
313 12 26 0.55 21 3.5 50 25.6 100 12.2
328 12 24 0.55 20 3.5 50 25.6 110 12.2
448 12 17 0.55 14 3.5 60 25.6 200 12.2
657 12 12 0.55 9 3.5 80 25.6 400 12.2
896 12 9 0.55 7 3.5 80 25.6 400 12.2

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Efficiency-Oriented Drive Platform

    The brushless motor architecture supports efficient operation and smoother output compared with traditional brushed solutions.

  • Stable Reduction Integration

    Worm gearbox integration provides predictable speed reduction and controlled motion for precision-oriented systems.

  • Balanced Mechanical Profile

    Shorter motor length helps reduce axial space requirements while maintaining a stable gearbox footprint.

  • Designed for Continuous Operation

    This configuration is suitable for applications where longer operating periods and consistent performance are required.

Custom

Beyond the Standard: Performance Customized

  • 01
    Operating Speed Profile
    Motor and gearbox behavior can be reviewed to match target operating speed ranges and response characteristics.
  • 02
    Duty Cycle Considerations
    Configuration can be evaluated based on continuous or intermittent operation requirements.
  • 03
    Output Shaft Adaptation
    Output shaft dimensions and end styles can be adjusted to match coupling or driven components.
  • 04
    System Integration Requirements
    Wiring layout, connector orientation, and installation references can be adapted for system-level integration.
  • 05
    Application-Specific Evaluation
    Customization can be discussed based on complete system performance expectations.
  • Operating Speed Profile
  • Duty Cycle Considerations
  • Output Shaft Adaptation
  • System Integration Requirements
  • Application-Specific Evaluation

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

For detailed selection guidance or project-specific requirements, please contact our team for further support.

What is the main difference between this model and brushed worm gear motors?
This model uses a brushless motor, which emphasizes smoother operation and efficiency.
What voltage range does this motor support?
It operates within a 6V to 24V voltage range.
Is the worm gearbox integrated as standard?
Yes. The motor and worm gearbox are supplied as a single integrated assembly.
Is this suitable for continuous operation?
It is designed for applications where consistent and smoother operation is required.
Can this motor be customized for specific system requirements?
Customization options are available depending on operational and integration needs.
