10mm Diameter Micro Brushed Motor With Gearbox

A compact inline layout and stable low-voltage operation make this 10mm unit suitable for miniature mechanisms with limited installation space.

Get a Quote

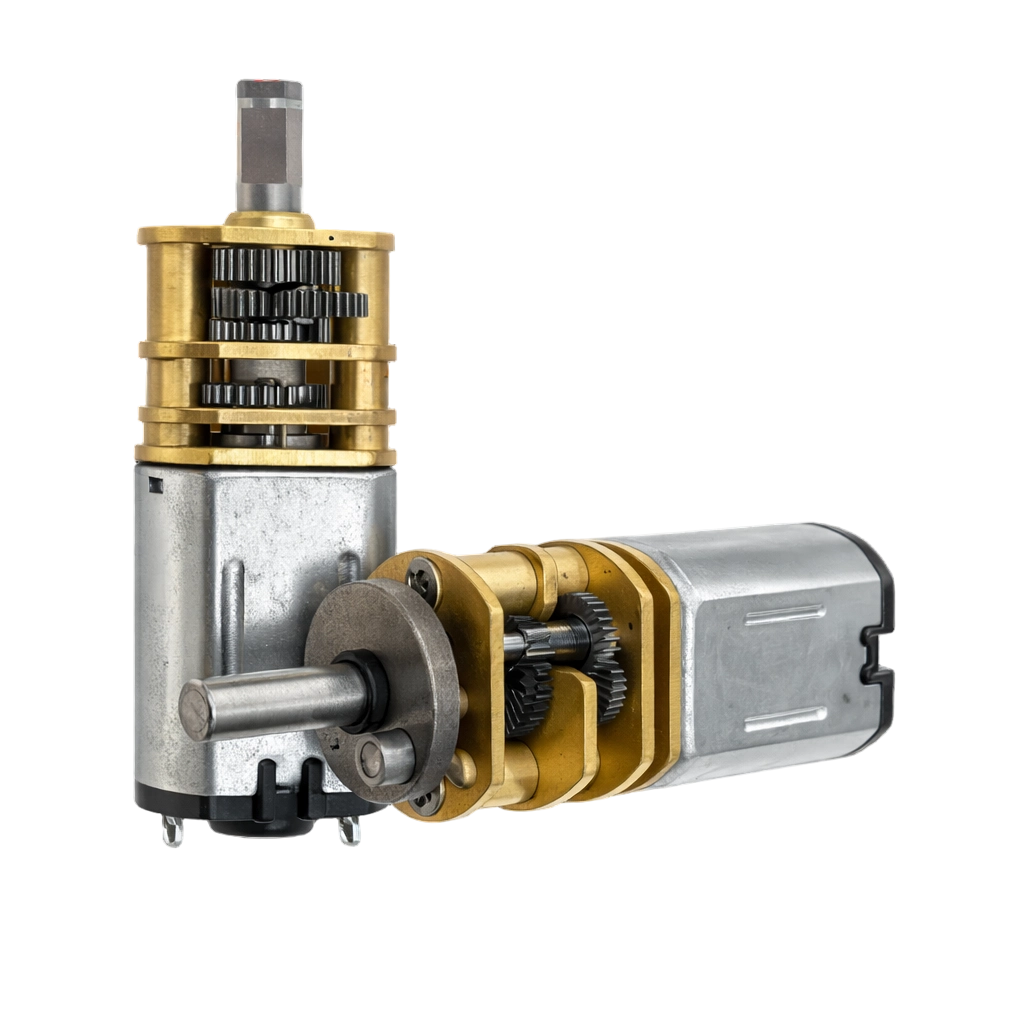

10mm micro brushed DC motor with gearbox for compact low-voltage devices
Specs

Key Features

Designed around a miniature N10 brushed motor and compact gearbox, this model focuses on dimensional efficiency and simple mechanical integration for small-scale drive systems.

  • Compact 10mm diameter gearbox for space-limited installations
  • Integrated motor and gearbox assembly for consistent structure
  • Supports low-voltage applications within a 3V–12V range
  • Inline output configuration suitable for basic transmission needs
  • Commonly used in lightweight and miniature mechanical systems
technical Specs

Motors Specifications

Reduction ratio 20 50 100 150 250
Gearbox length mm 6 9 9 9 9
No-load speed rpm 550 220 110 73 44
Rated speed rpm 425 170 85 57 34
Rated torque kgf·cm 0.0098 0.0245 0.0489 0.0734 0.1224
Max. momentary tolerance torque kgf·cm 0.030 0.080 0.150 0.230 0.380

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Focused on Micro Gear Solutions

    SLW Motor specializes in small-diameter brushed motor gear assemblies, supporting stable production for compact drive components.

  • Consistent Assembly Structure

    Standardized assembly processes help maintain uniform size and alignment across production batches.

  • Design-Friendly Dimensions

    Clear dimensional definitions simplify mechanical integration during product development.

  • Suitable for Volume Applications

    This model is designed to support repeatable production for small electromechanical products.

Custom

Beyond the Standard: Performance Customized

  • 01
    Voltage Configuration
    Selectable operating voltage within the supported low-voltage range.
  • 02
    Gearbox Structure
    Inline spur gearbox matched to the N10 motor platform.
  • 03
    Gear Materials
    Material options available to suit different application conditions.
  • 04
    Output Shaft Options
    Output shaft length and end style can be adjusted upon request.
  • 05
    Application-Based Requests
    Customization can be discussed according to specific design needs.
  • Voltage Configuration
  • Gearbox Structure
  • Gear Materials
  • Output Shaft Options
  • Application-Based Requests

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

For detailed selection guidance or project-specific requirements, please contact our team for further support.

What type of applications is this motor suitable for?
It is commonly used in compact devices, miniature mechanisms, and lightweight electromechanical systems where installation space is limited.
Is this motor suitable for low-voltage systems?
Yes. It is designed to operate within a low-voltage range suitable for small electronic and battery-powered applications.
Does this motor include a gearbox as standard?
Yes. The motor is supplied as an integrated motor-and-gearbox assembly.
Can this motor be customized for specific projects?
Basic customization options are available depending on application requirements and production volume.
Is this model suitable for long-term supply?
This model supports stable production and is suitable for continuous supply in standard configurations.
