10mm Diameter Micro Brushed Motor With Plastic Gearbox

The lightweight plastic gearbox supports stable low-speed movement while reducing assembly weight and integration complexity.

Get a Quote

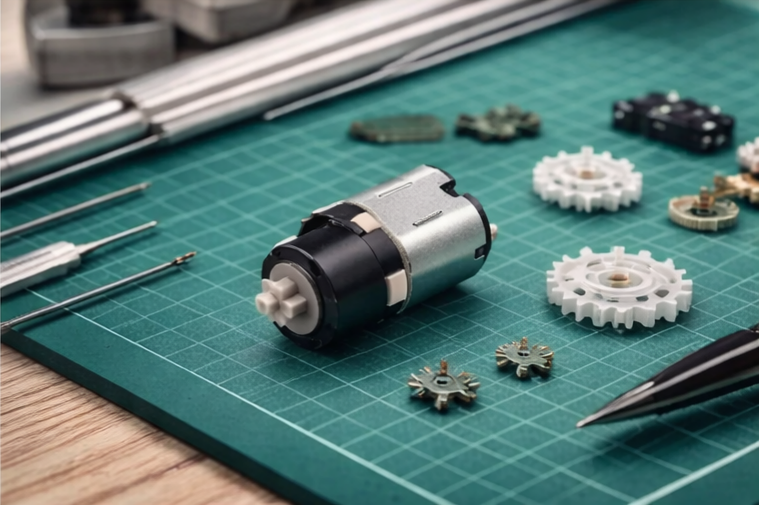

10mm micro brushed motor with lightweight plastic gearbox
Specs

Key Features

This model combines a 10mm brushed motor and a compact plastic gearbox for space-limited assemblies where layout simplicity and controlled output matter.

  • Compact 10mm platform suitable for tight enclosures
  • Plastic gearbox design helps keep weight low for small mechanisms
  • Integrated assembly supports consistent fit during installation
  • Works well in low-speed drive or positioning-related mechanisms
  • Designed for compact consumer and light-duty automation modules
technical Specs

Motors Specifications

Motor Model Rated voltage No-load No-load Rated speed Rated torque Rated current Output power Stall torque Stall current
VDC r/min mA r/min g.cm mA W g.cm A
FM1013-015 1.5 10500 65 7600 0.86 150 0.1 2 0.35
FM1013-019 3 11000 23 8500 0.76 65 0.1 2.5 0.18
FM1013-024 6 16500 20 12500 1 55 0.15 3 0.17

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Compact Drive for Tight Layouts

    A small overall footprint helps you keep mechanisms compact without sacrificing basic drive capability.

  • Plastic Gearbox for Lightweight Assemblies

    A practical option when weight and packaging volume matter more than heavy-duty load capacity.

  • Stable Assembly Consistency

    Factory-assembled motor + gearbox reduces fit variation and simplifies your installation workflow.

  • Flexible for System Integration

    Works as a compact drive unit for small mechanisms that need controlled output and simple wiring.

Custom

Beyond the Standard: Performance Customized

  • 01

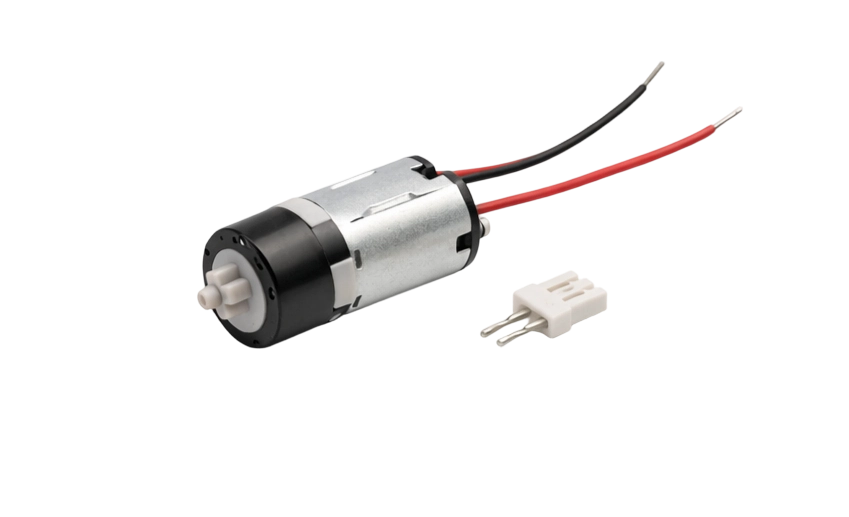

    Wiring & Lead Arrangement
    Lead length, exit direction, and connector style can be adapted to match enclosure routing.
  • 02

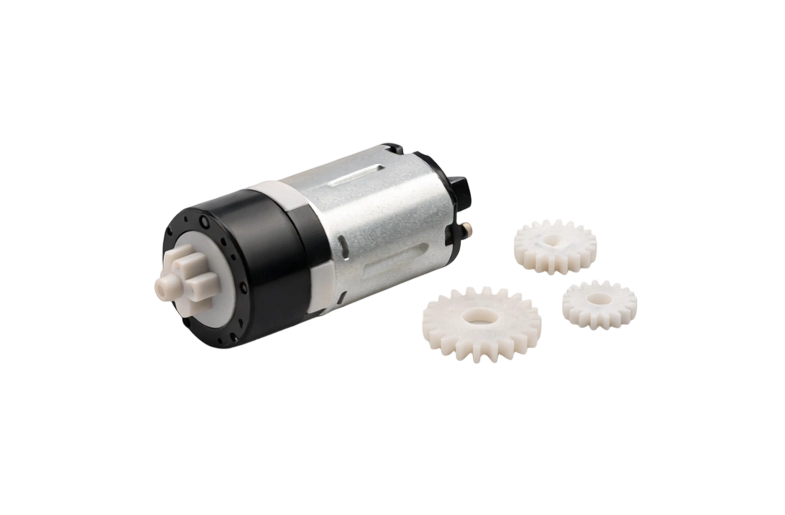

    Output Shaft Interface
    Shaft length and end style can be reviewed to match couplers, wheels, or small transmission parts.
  • 03

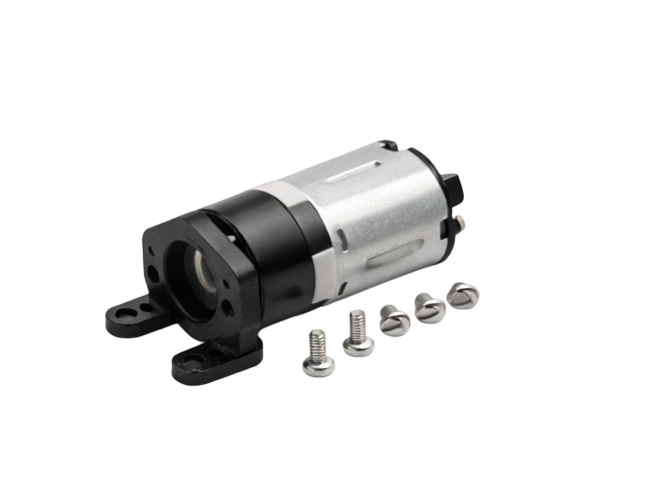

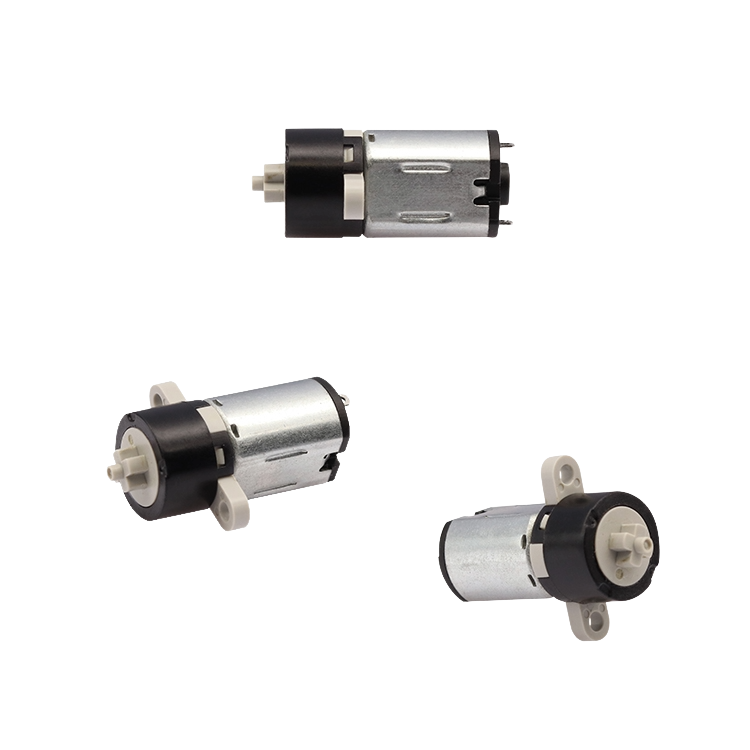

    Mounting & Housing Fit
    Mounting alignment and installation clearance can be checked against your mechanism envelope.
  • 04

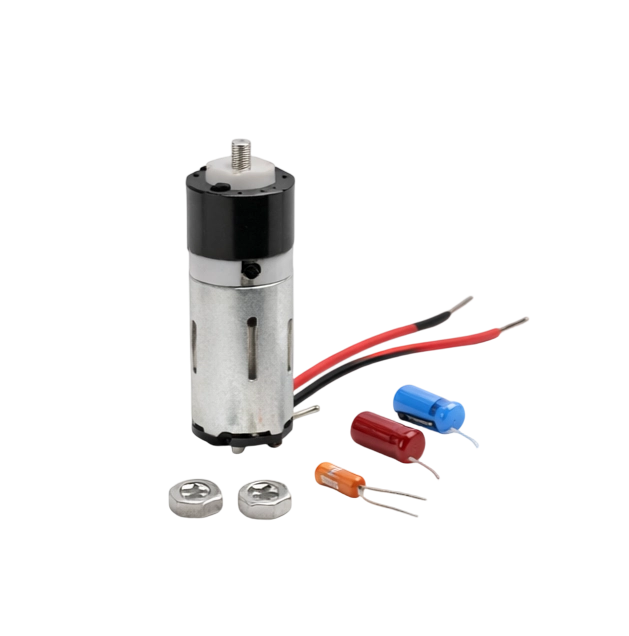

    Voltage & Winding Options
    Rated voltage can be matched to your control scheme based on available windings.
  • 05

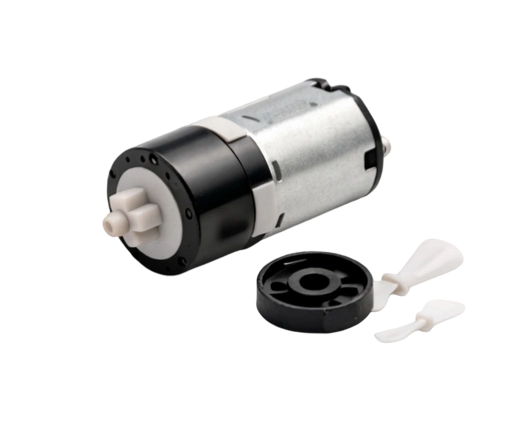

    Application-Based Adaptation
    Customization is evaluated by how the unit fits your layout and duty profile, not by repeating fixed dimensions.
  • Wiring & Lead Arrangement
  • Output Shaft Interface
  • Mounting & Housing Fit
  • Voltage & Winding Options
  • Application-Based Adaptation

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

If you share your available space and the driven load type, we can help narrow the most suitable configuration quickly.

What makes this motor suitable for compact mechanisms?
It combines a 10mm motor body with a short plastic gearbox, helping keep installation size and assembly complexity low.
When should I choose a plastic gearbox version?
Choose it when lightweight design and compact packaging matter, and your application is not heavy-load or high-shock.
Can I request a specific lead wire routing?
Yes. Lead length and exit direction can be adapted to match your internal wiring path.
Can the output shaft be adapted for my coupling method?
Yes. Shaft length and end style can be reviewed to match your driven component.
How should I interpret the rated voltage options?
Rated voltage depends on winding configuration. You can match the option to your control system requirements.
Is this model suitable for repeat production?
Yes. It is designed for stable supply in standard configurations.
