12mm Diameter High Torque Brushed Motor With Gearbox

A longer N50 motor body provides greater output potential while retaining the same compact gearbox diameter.

Get a Quote

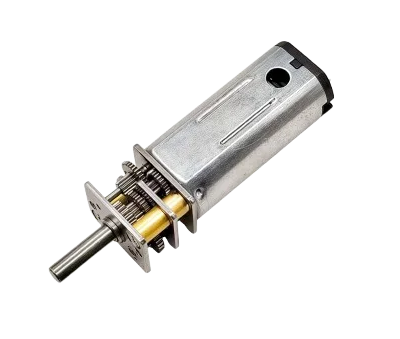

12mm N50 high torque brushed motor with compact gearbox
Specs

Key Features

Built on the N50 motor platform, this model extends motor length while keeping the same 12mm gearbox size, offering structural flexibility for compact layouts.

  • 12mm diameter gearbox compatible with standardized compact designs
  • Longer motor body compared to N20 and N30 configurations
  • Integrated motor and gearbox for simplified mechanical matching
  • Supports a wide applied voltage range for flexible system design
  • Suitable for compact systems that allow additional motor length
technical Specs

Motors Specifications

Motor Modle Rated voltage No-load speed No-load current Rated-load Speed Rated-load Current Stall torque Stall current
VDC r/min mA r/min mA kg.cm mA
GM12-N50 6VDC 285±10%rpm 280mA MAX. 265±10%rpm 650mA MAX. 2Kg.cm (min.) 6000mA (max.)

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Extended-Length Motor Options

    The N50 platform provides additional motor length within the same diameter, supporting different structural requirements without changing gearbox size.

  • Consistent 12mm Gearbox Platform

    Shared gearbox dimensions across the 12mm series help simplify design reuse and component standardization.

  • Stable Assembly Structure

    Controlled assembly processes support consistent alignment and repeatable dimensions.

  • Designed for Ongoing Supply

    This model supports stable production for standard configurations.

Custom

Beyond the Standard: Performance Customized

  • 01
    Voltage Configuration
    Selectable operating voltage within the supported application range.
  • 02
    Gearbox Structure
    Inline spur gearbox matched to the extended N50 motor body.
  • 03
    Gear Materials
    Material selection available based on application requirements.
  • 04
    Output Shaft Options
    Output shaft length and end form can be adjusted if required.
  • 05
    Application-Based Adjustments
    Project-specific requirements can be reviewed upon request.
  • Voltage Configuration
  • Gearbox Structure
  • Gear Materials
  • Output Shaft Options
  • Application-Based Adjustments

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

This model is commonly selected when additional motor length is required without increasing gearbox diameter.

How does the N50 version differ from N20 and N30 models?
It features a longer motor body while maintaining the same 12mm gearbox diameter.
Is this model suitable for compact installations?
Yes. It is suitable for compact layouts that can accommodate increased motor length.
Does this motor include the gearbox as standard?
Yes. The motor and gearbox are supplied as an integrated assembly.
Can this motor be customized for specific applications?
Basic customization options are available depending on project needs.
Is this model suitable for long-term supply?
Yes. It is designed to support stable, repeat production.
