22mm Diameter DC Brushed Coreless Motor With Planetary Gearbox

This Φ22 brushed coreless drive combines a fixed Φ22×L30 planetary gearbox with a single ultra-low-speed configuration for compact mechanisms that need controlled 9–10 rpm movement. The reference model is rated at 7V DC, supports a broader 6–24V application range, and provides clearly defined current and stall-torque boundaries for driver and mechanism planning.

Get a Quote

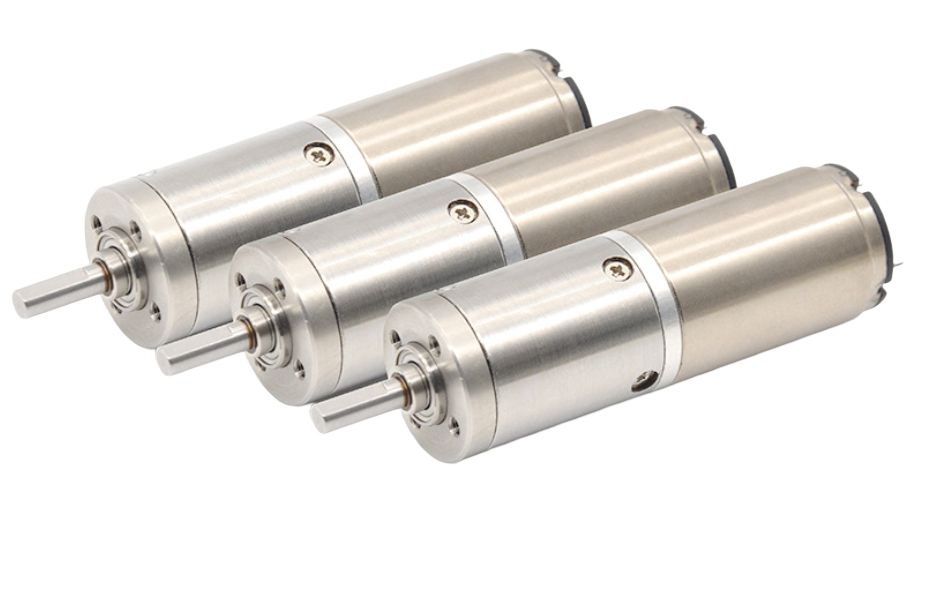

22mm brushed coreless planetary gear motor with ultra-low-speed output
Specs

Key Features

This model is a Φ22 brushed coreless planetary gear motor platform defined by a fixed gearbox envelope (Φ22×L30) and a single ultra-low-speed configuration, making selection straightforward when your mechanism prioritizes slow output and compact installation.

  • 6V–24V applied range supports broad low-voltage DC architectures while the table anchors performance at 7V DC
  • Planetary gearbox with Φ22×L30 envelope targets ultra-low-speed output behavior rather than high-speed actuation
  • No-load speed is listed as 10 ±10% rpm, providing a clear free-run speed anchor for slow mechanisms
  • Rated speed is listed as 9 ±10% rpm with rated current 250mA MAX., defining driver sizing boundaries under working load
  • No-load current is listed as 80mA MAX., helping you estimate baseline draw and heat at light load
technical Specs

Motors Specifications

Motor Model Rated voltage No-load speed No-load current Rated speed Rated current Stall torque Stall current
VDC r/min mA r/min mA kg-cm A
1KMGP2232001 7VDC 10 ±10%rpm 80mA MAX. 9 ±10%rpm 250mA MAX. 60 kg-cm /

For additional customization or reference configurations, please feel free to contact us.
