15mm Diameter Brushed Motor With 20mm Diameter Planetary Gearbox

15mm brushed DC motor with 20mm planetary gearbox delivers high torque density and efficient inline transmission for robotics, locks, and precision drives.

Get a Quote

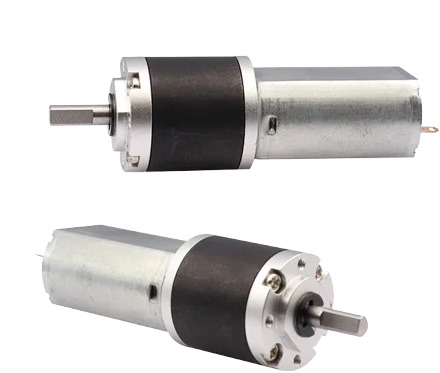

  • 15mm Diameter Brushed Motor With 20mm Diameter Planetary Gearbox Featured Image
Specs

Key Features

Standard 20mm planetary platform, this model offers high torque density in a compact cylindrical form factor.

  • 20mm diameter planetary gearbox for standardized mechanical layouts
  • 15.4mm diameter (Length 32mm) brushed motor for stable output
  • Planetary gear structure for stable torque distribution
  • Integrated motor and gearbox assembly for reliable alignment
  • Suitable for designs requiring compact size with added strength
technical Specs

Motors Specifications

Reduction ratio No-Load Rated Load Stall Gearbox Length (MM)
Rated Voltage (V) Speed (RPM±10%) Current (A) Speed (RPM±10%) Current (A) Torque (Kg.cm) Power (W) Torque (Kg.cm) Current (A)
4.4 6 2272 0.17 1590 1.36 0.16 6.12 0.5 3.6
5.4 6 1851 0.17 1295 1.36 0.2 6.12 0.6 3.6 13.8
19 6 526 0.17 368 1.36 0.8 6.12 2.2 3.6
24 6 416 0.17 291 1.36 1 6.12 2.8 3.6 17.2
29 6 344 0.17 240 1.36 1.2 6.12 3.5 3.6
84 6 119 0.17 83 1.36 3 6.12 9.2 3.6
104 6 96 0.17 67 1.36 4.5 6.12 12.5 3.6
128 6 78 0.17 55 1.36 5.5 6.12 15.5 3.6 20.7
157 6 63 0.17 44 1.36 6 6.12 19 3.6
370 6 27 0.17 19 1.36 14 6.12 40.5 3.6
455 6 22 0.17 16 1.36 17 6.12 49.6 3.6
560 6 18 0.17 13 1.36 22 6.12 61 3.6 24.2
690 6 14.5 0.17 10 1.36 25 6.12 75 3.6
850 6 11.5 0.17 8 1.36 35 6.12 93 3.6

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Compact Planetary Platform

    The 20mm gearbox provides a robust industrial standard solution for tight spaces.

  • Optimized Motor Ratio

    The 15.4mm motor ensures high performance within a slim profile.

  • Consistent Assembly Quality

    Ensures alignment and dimensional stability across production.

  • Suitable for Compact Load-Bearing Designs

    Ideal for applications needing more strength than small platforms.

Custom

Beyond the Standard: Performance Customized

  • 01
    Gearbox Platform Selection
    20mm planetary gearbox chosen for optimal compactness and strength.
  • 02
    Motor Capacity Matching
    180 motor selected for moderate torque requirements.
  • 03
    Output Shaft Adaptation
    Shaft dimensions reviewed to match transmission needs.
  • 04
    Mounting Interface Review
    Mounting details adjusted to suit layout constraints.
  • 05
    Application-Specific Requests
    Customization evaluated based on size and load balance.
  • Gearbox Platform Selection
  • Motor Capacity Matching
  • Output Shaft Adaptation
  • Mounting Interface Review
  • Application-Specific Requests

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

Our team can help confirm whether the 22mm platform suits your application requirements.

Where does the 22mm platform fit compared to 20mm and 24mm?
It offers a middle-ground option with improved strength over 20mm while remaining more compact than 24mm.
Is this model suitable for compact load-bearing designs?
Yes. It balances size and planetary gearbox strength.
