12mm Diameter Brushed Coreless Motor With Planetary Gearbox

Low rotor inertia and a compact 12mm planetary stage support smooth response, controlled speed reduction, and consistent output in miniature mechanisms.

Get a Quote

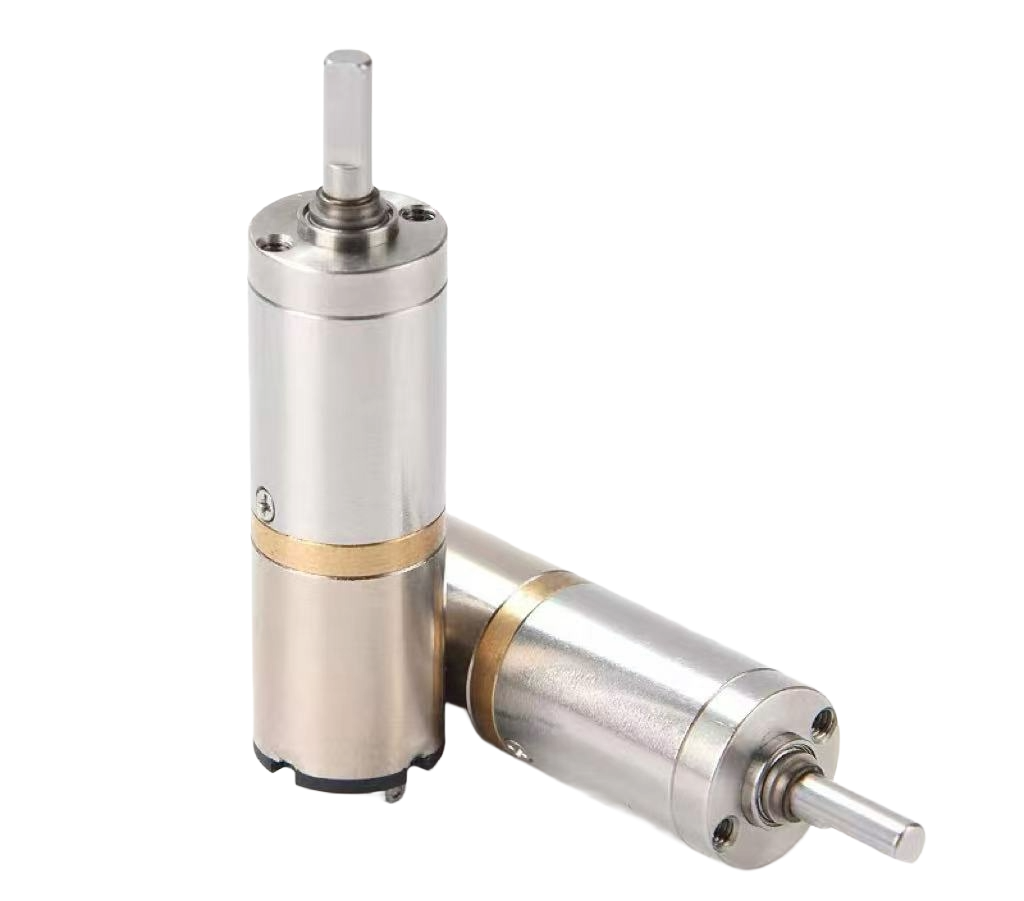

12mm brushed coreless motor with planetary gearbox for smooth low-inertia drive
Specs

Key Features

This model pairs a brushed coreless motor with a compact planetary gearbox for applications that prioritize smooth response and controlled output within limited space.

  • Coreless rotor design supports fast response and smoother operation
  • Planetary gearbox structure suits compact builds needing stable reduction
  • 12mm platform fits space-limited mechanisms without complex installation
  • Suitable for low-voltage systems within a controlled operating range
  • Designed for applications requiring steady output at lower speeds
technical Specs

Motors Specifications

Motor Model Rated voltage No-load speed No-load current Rated speed Rated torque Rated current Stall torque
VDC r/min mA r/min g. cm mA g. cm
BLC1221-01 12 2000 20 1280 3.7 120 80
BLC1221-02 12 400 20 260 150 120 360
BLC1221-03 12 80 20 52 700 120 1500
BLC1221-04 12 16 20 10 3000 120 7500

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Coreless Response in Compact Drives

    The coreless design supports responsive control behavior where small size and smooth output matter.

  • Planetary Gearbox for Stable Reduction

    Planetary structure suits compact reduction needs while keeping the output centered for easier alignment.

  • Consistent Output Across Options

    Multiple motor configurations help you match target speed bands while staying on the same platform.

  • Integration-Friendly 12mm Form Factor

    A practical size for compact assemblies that still need controlled output and stable fit.

Custom

Beyond the Standard: Performance Customized

  • 01
    Wiring & Lead Arrangement
    Lead length, exit direction, and connector style can be adapted to match your internal routing.
  • 02
    Output Shaft Interface
    Shaft length and end style can be reviewed to suit couplers, gears, or driven parts.
  • 03
    Mounting & Housing Fit
    Mounting clearance and interface details can be checked against your mechanism envelope.
  • 04
    Gear Ratio & Output Targeting
    Configuration can be aligned to your target speed range and load profile using the technical data.
  • 05
    Application-Level Adaptation
    Customization is evaluated by duty cycle, load type, and integration needs rather than repeating fixed dimensions.
  • Wiring & Lead Arrangement
  • Output Shaft Interface
  • Mounting & Housing Fit
  • Gear Ratio & Output Targeting
  • Application-Level Adaptation

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

If you share your target speed and load type, we can help shortlist the most suitable motor model quickly.

What is the advantage of a brushed coreless motor in compact drives?
It supports smoother response and lower inertia behavior, which helps in compact motion systems that need controllable output.
Why choose a planetary gearbox structure for this size?
It keeps the output aligned and supports stable reduction in a compact package, making integration easier in tight assemblies.
How do I choose between BLC1221-01 to BLC1221-04?
Start from your target output speed and load behavior, then compare rated speed and rated torque in the technical data table to narrow the best match.
Can I request a different lead wire routing or connector style?
Yes. Wiring length and exit direction can be adapted to match your layout.
