An integrated encoder enables closed-loop speed control and position feedback, while multiple reduction ratios support controlled low-speed movement in miniature robotics, smart locks, and automation equipment.

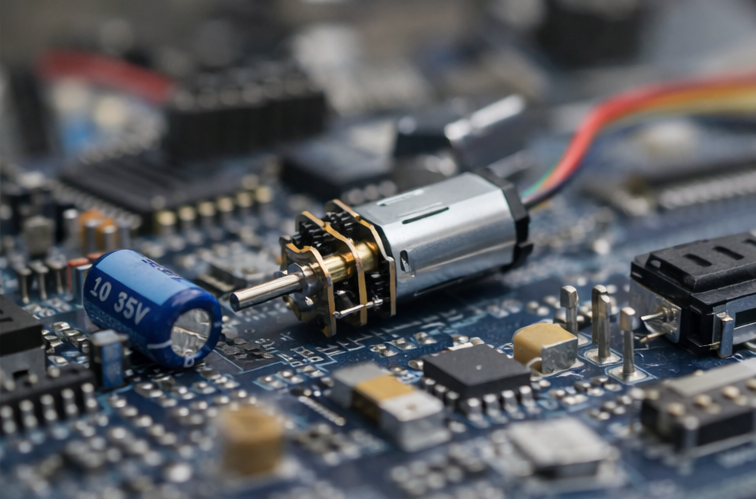

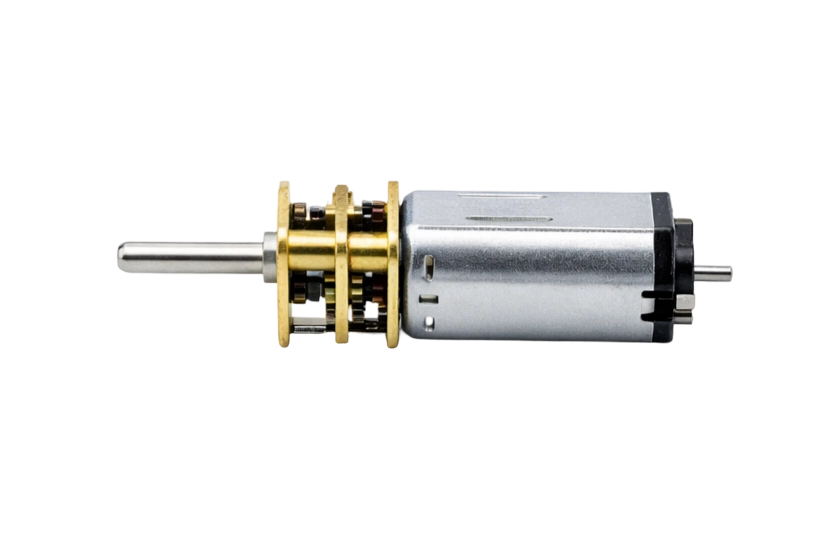

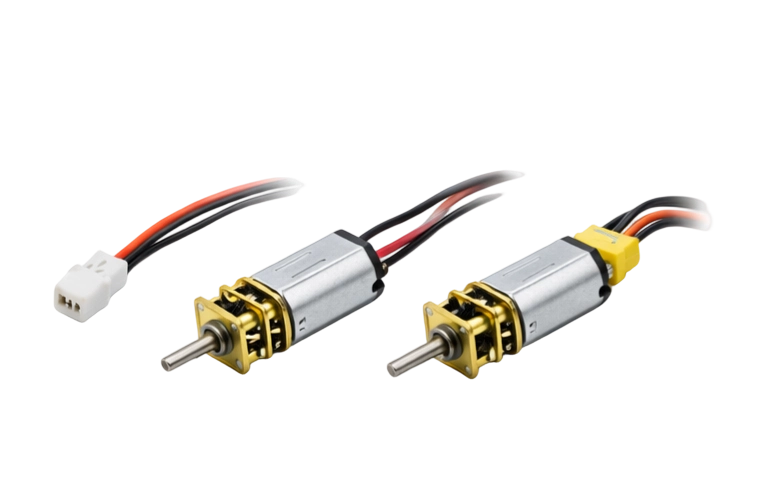

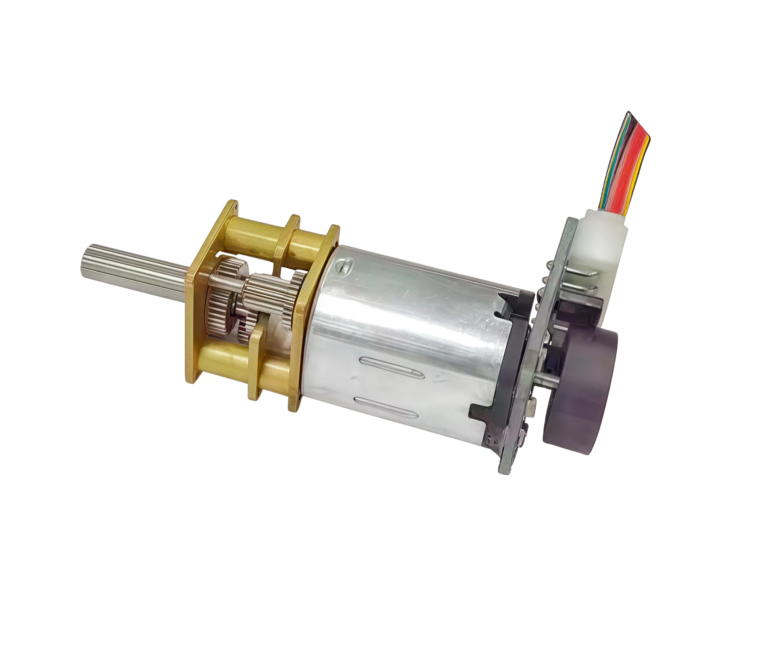

The motor integrates an N20 brushed DC motor, compact gearbox and rear-mounted encoder into one miniature drive assembly.
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 | 1000 | |
| Gearbox length | mm | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 12.0 |
| No-load speed | rpm | 1550 | 530 | 310 | 160 | 110 | 78 | 60 | 55 | 43 | 16 |
| Rated speed | rpm | 1100 | 400 | 250 | 125 | 83 | 60 | 50 | 42 | 33 | 13 |
| Rated torque | Kg.cm | 0.02 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 | 1.0 |
| Max. momentary tolerance torque | Kg.cm | 0.1 | 0.2 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 | 3.0 |
For additional customization or reference configurations, please feel free to contact us.

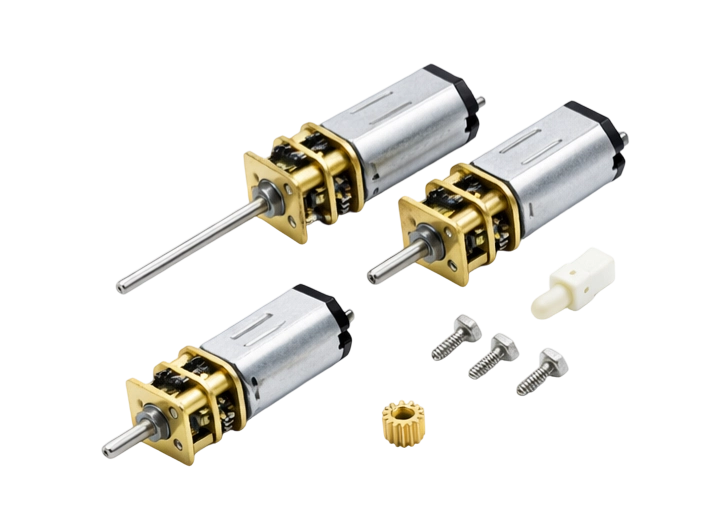

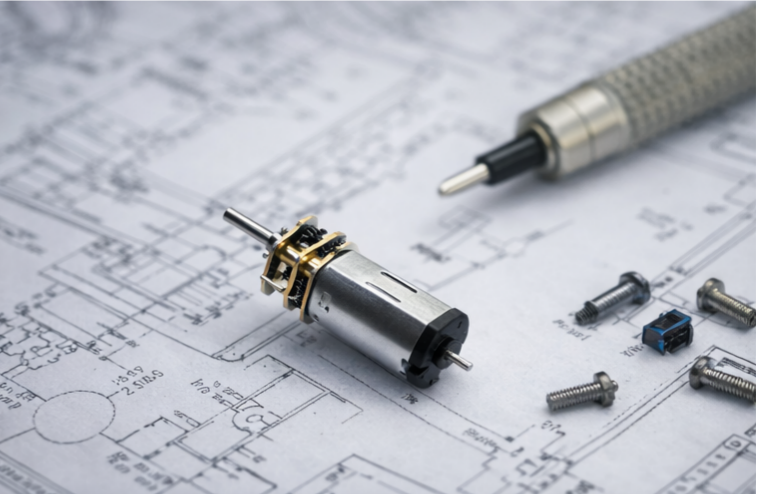

This model is built on a mature N20 gearbox structure, supporting reliable mechanical consistency.

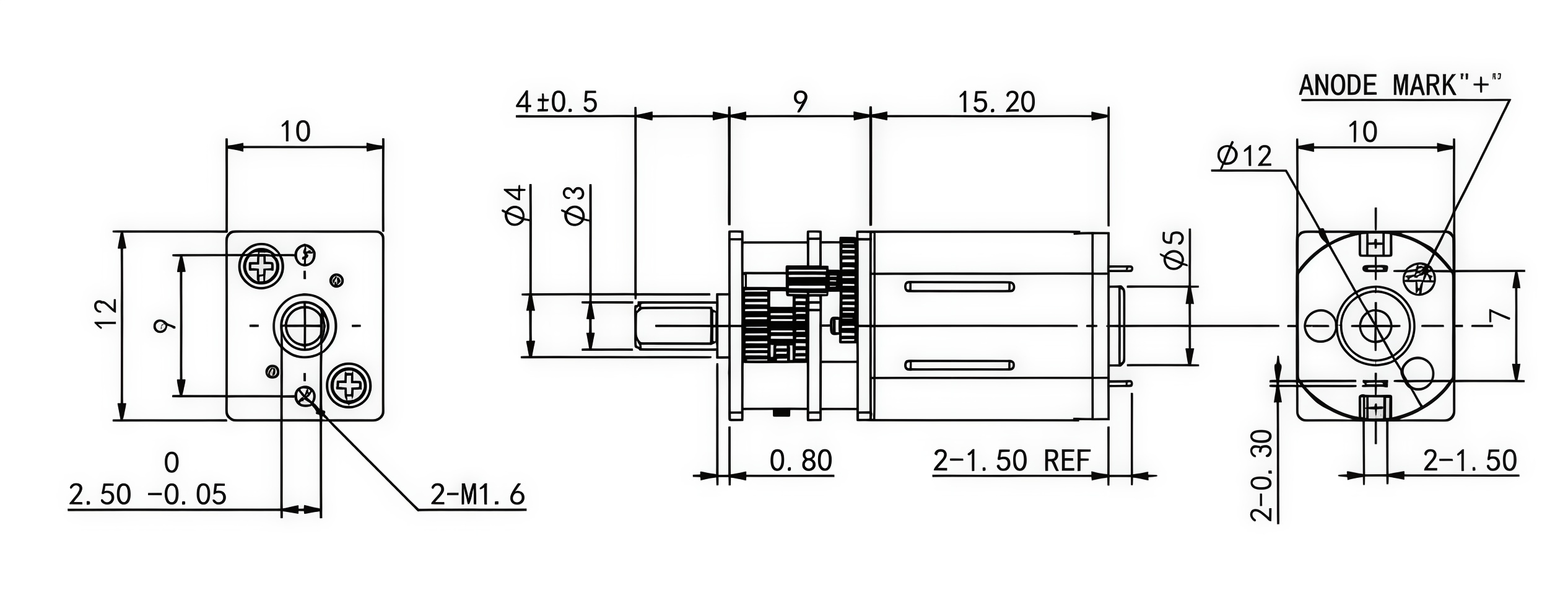

Clear and consistent size definitions help reduce integration uncertainty during product development.

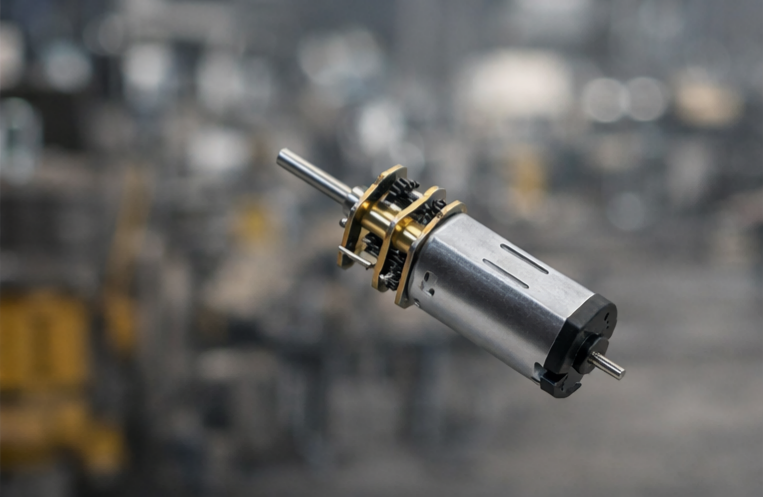

The rear-mounted encoder provides motion feedback for speed monitoring and closed-loop motor control in compact applications.

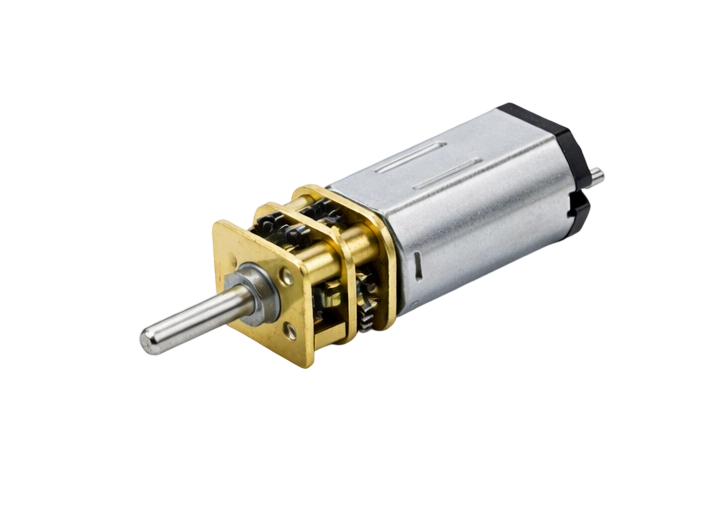

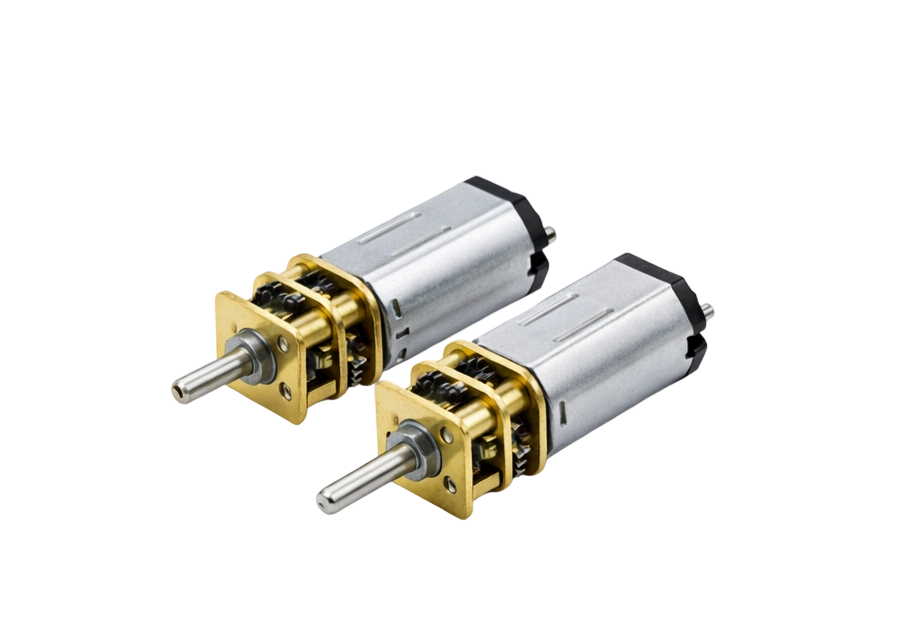

The motor, gearbox and encoder are integrated into one compact assembly, reducing separate installation and alignment work.
For selection guidance or application discussion, our team is available to assist.
Tell us your project or application requirements, and our team will get back to you with technical support, product recommendations, or a customized motor solution.
