Planetary vs Spur Gearboxes: Which One Fits Your Compact Motor Design?

If your compact motor needs to deliver high torque in a small inline footprint with low backlash, choose a planetary gearbox. If you need a low-cost, quieter solution for light, intermittent loads where size and precision aren’t critical, a spur gearbox almost always wins on value. The trick is matching gearbox topology to load profile, duty cycle, and budget — not just picking the one with bigger numbers on the datasheet.

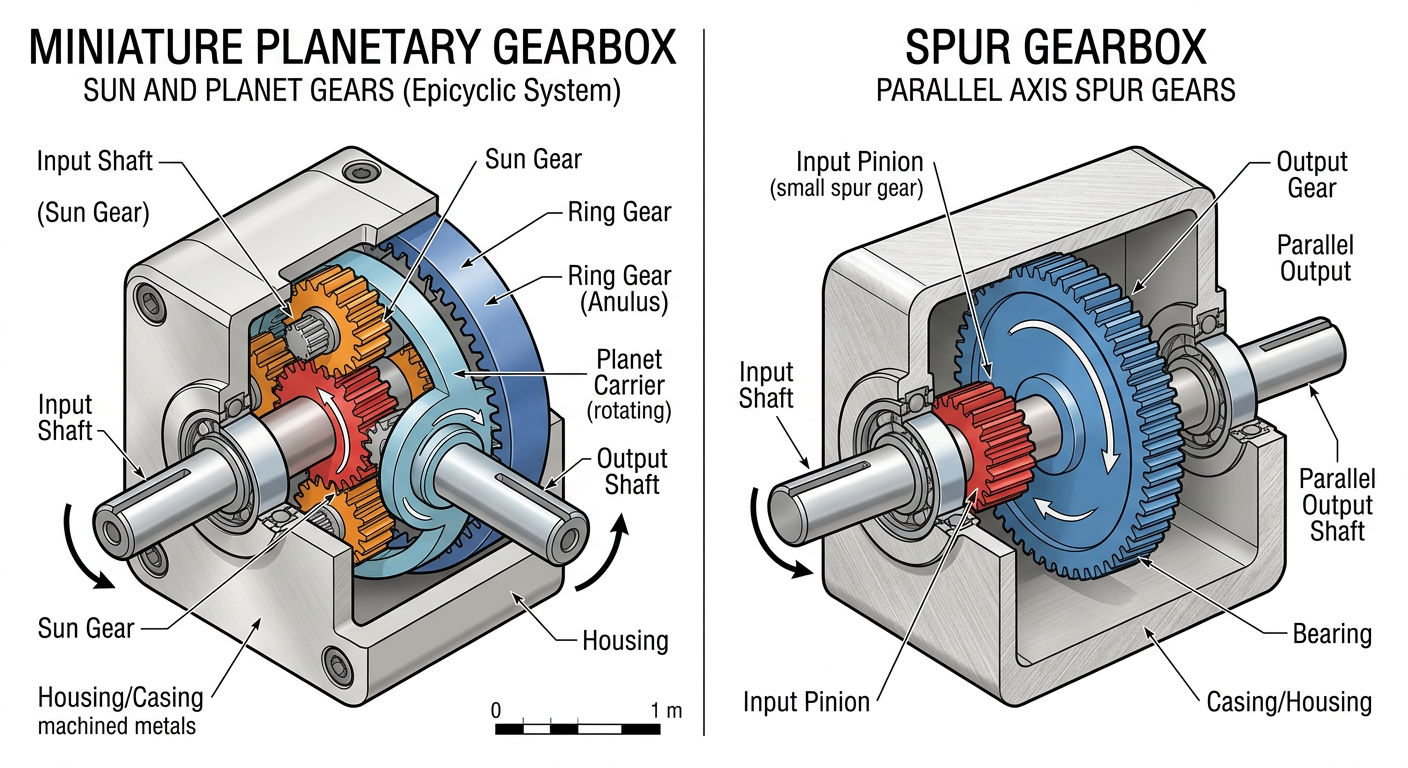

The Core Difference in 60 Seconds

A spur gearbox uses parallel-shaft gear pairs stacked stage by stage. Power flows through one tooth mesh at a time. Simple, cheap, easy to manufacture.

A planetary gearbox does something cleverer: a central sun gear drives three (sometimes four) planet gears, which orbit inside a fixed ring gear. Three teeth mesh simultaneously, so the load is split three ways. That’s why a planetary box of the same diameter can handle roughly 2–3x the torque of a comparable spur unit.

That single design choice — load sharing vs. single-path transmission — drives almost every other difference: torque density, backlash, cost, noise, and shock tolerance. Keep that in mind as you read the rest.

When a Planetary Gearbox Is the Right Call

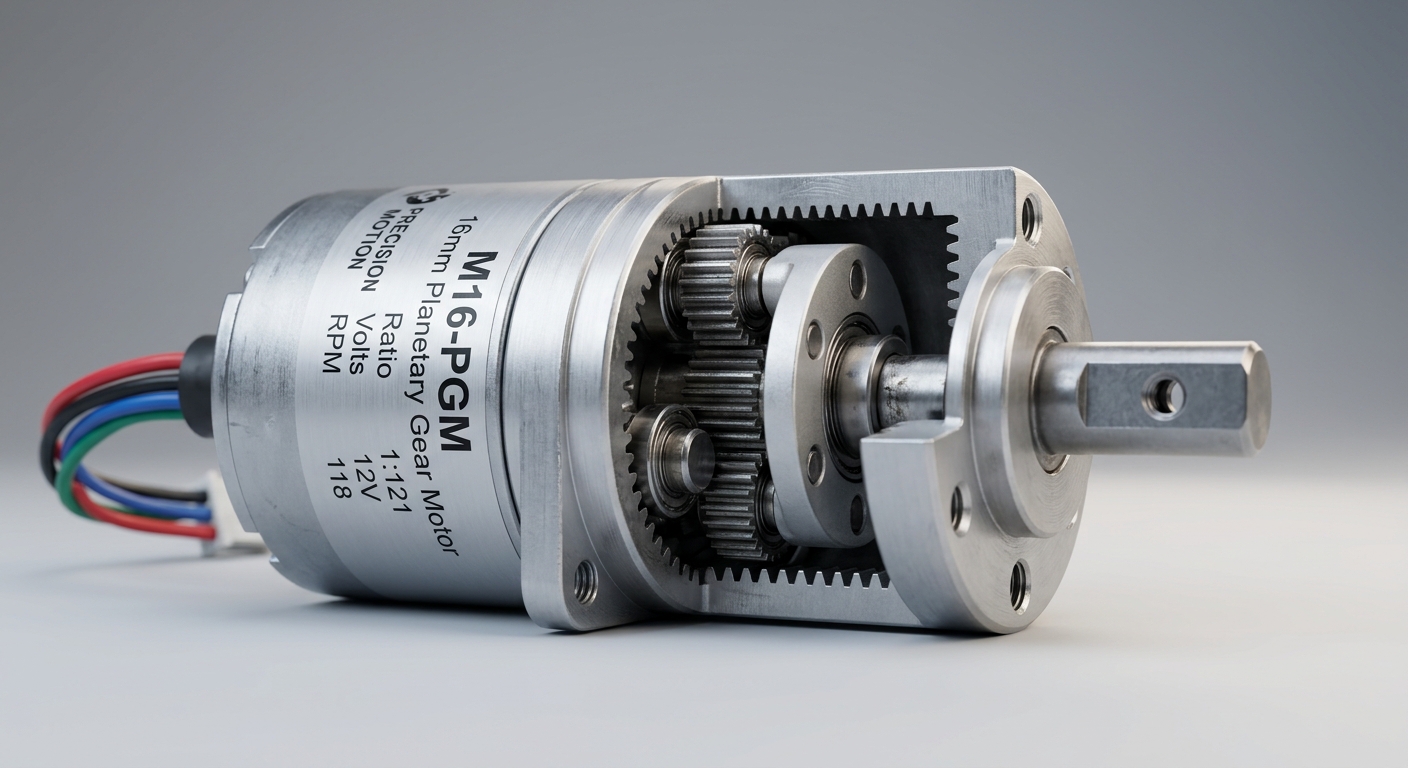

Planetary gearboxes shine when torque-per-cubic-millimeter matters. In a 16 mm or 22 mm diameter package, a planetary stage can typically deliver 0.3–1.5 Nm of continuous torque — values that a spur gearbox of the same OD simply can’t reach without growing longer.

Pick planetary when you have:

• High continuous or peak torque demand in a small diameter
• Frequent shock loads (a gripper hitting a hard stop, for example)
• Tight backlash requirements — typically under 1° for positioning
• An inline shaft layout where length is flexible but diameter is constrained
• High reduction ratios (100:1 to 500:1) without stacking many stages

For instance, a medical device OEM building a syringe pump actuator needs precise linear travel, repeatable positioning, and zero tolerance for backlash-induced dosing error. A 3-stage planetary gear motor at 100:1 with under 1° backlash hits that spec in a 12 mm body — a spur stack would need to be 30–40% longer and still wouldn’t match the backlash.

See our guidance on torque and speed specs to verify before buying if you’re still firming up your load profile.

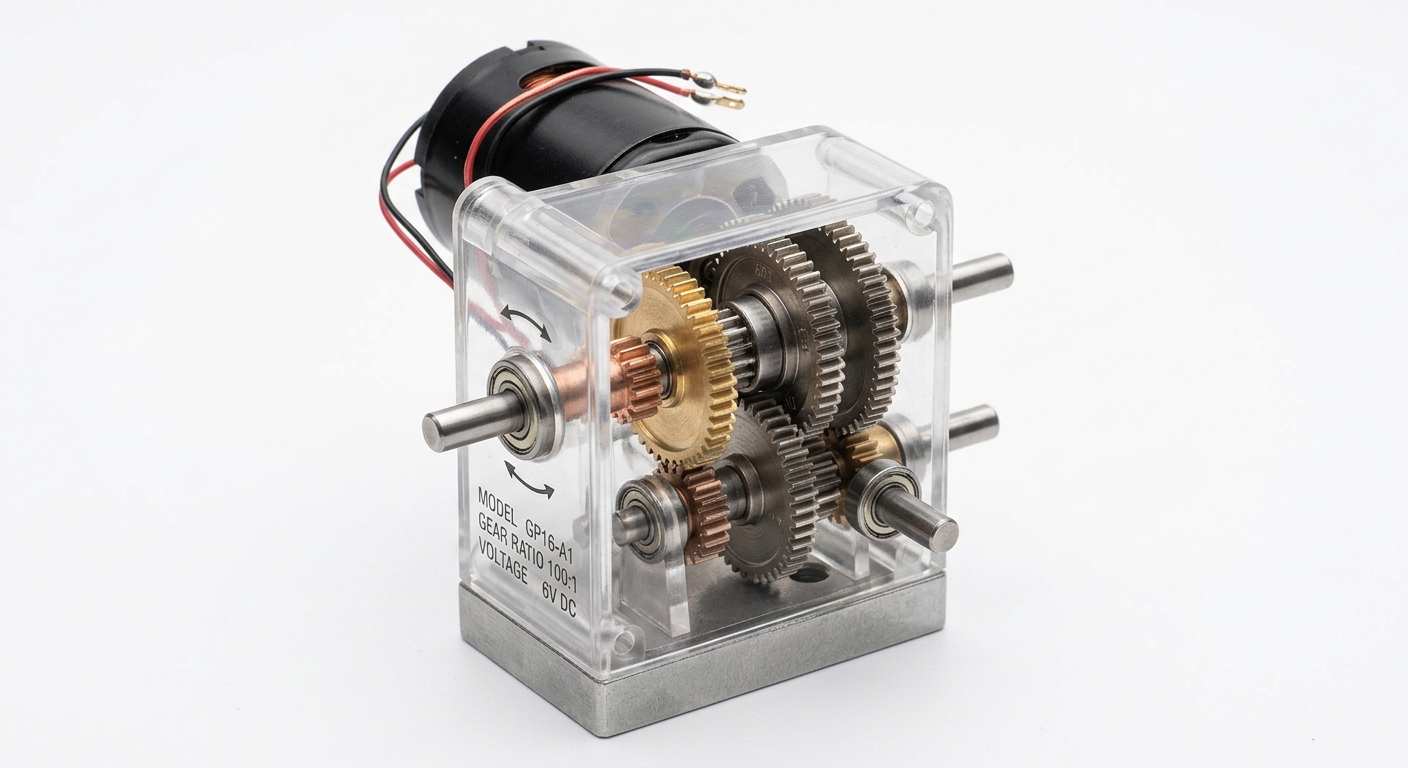

When a Spur Gearbox Is Actually the Smarter Choice

Engineers default to planetary too often. Spur gearboxes win more design battles than people give them credit for — and they cost 30–50% less.

Choose spur when you have:

• Light, predictable loads — under ~0.3 Nm at the output
• Cost-sensitive consumer products at high volumes
• Low-noise requirements at low torque (spur gears can run quieter at light loads)
• Non-critical positioning where 2–3° backlash is acceptable
• Intermittent duty cycles — a few seconds on, minutes off

A vending machine dispenser, an electric soap dispenser, a small kitchen appliance, a desktop toy robot — all run perfectly on a spur gear motor. Paying for planetary here is just burning BOM cost.

One consumer electronics customer we worked with originally specified a 12 mm planetary gear motor for a smart pet feeder. The actual load was about 80 mNm, intermittent, with no positioning requirement. Switching to a spur gear motor saved roughly $1.80 per unit at 50,000 units annually — that’s $90,000 a year, with zero performance compromise.

Head-to-Head Comparison

Here’s the side-by-side at a glance. Use it as a quick filter, then dig into the application-specific sections below.

Notice that spur actually edges out planetary on per-stage efficiency. People assume planetary is more efficient because it’s “higher-end” — it isn’t. The advantage is torque capacity, not efficiency.

Backlash, Noise, and the Real Cost of Each

Backlash

Planetary gearboxes typically hold 0.5°–1° of backlash in standard grades, and precision versions can hit under 0.3°. Spur gearboxes — because each stage adds its own slop — usually accumulate 1°–3° across a multi-stage train. If you’re driving a closed-loop positioning system with an encoder, that backlash directly limits your repeatability.

Noise

Counterintuitive but true: at light loads, spur gearboxes are often quieter than planetary because there are fewer mesh points and less rolling contact. Push the load up, though, and spur gears start to whine while planetary stays composed. If your product runs near a user’s ear — a CPAP device, a desktop robot, a smart home gadget — measure noise at actual operating load, not at no-load.

Cost

A typical 12 mm planetary gear motor lands 30–50% above a spur equivalent. The gap widens at higher precision grades. At 10,000+ unit volumes, that delta becomes a real number on your COGS sheet.

Matching Gearbox to Application: A Decision Framework

Skip the spec-sheet rabbit hole. Walk through these four questions in order:

1. What’s the peak torque, and how often does it hit?

If peak torque exceeds 2x your continuous load, or hits more than a few times per minute, lean planetary. Spur gears chip teeth under repeated shock.

2. Does the application need positional accuracy?

Encoder feedback plus tight backlash means planetary. Open-loop on/off motion means spur is fine.

3. What’s the duty cycle?

Continuous duty (>30 minutes on) favors planetary for heat distribution. Short intermittent bursts favor spur for cost.

4. What’s the budget per unit?

Under $5 BOM target? Usually spur. Above $15? Planetary is on the table without question.

For applications that fall outside standard catalog options, our guide on when to specify a custom gearbox walks through the decision in more depth. And if you’re still nailing down the motor side, the complete DC motor types guide pairs naturally with this one.

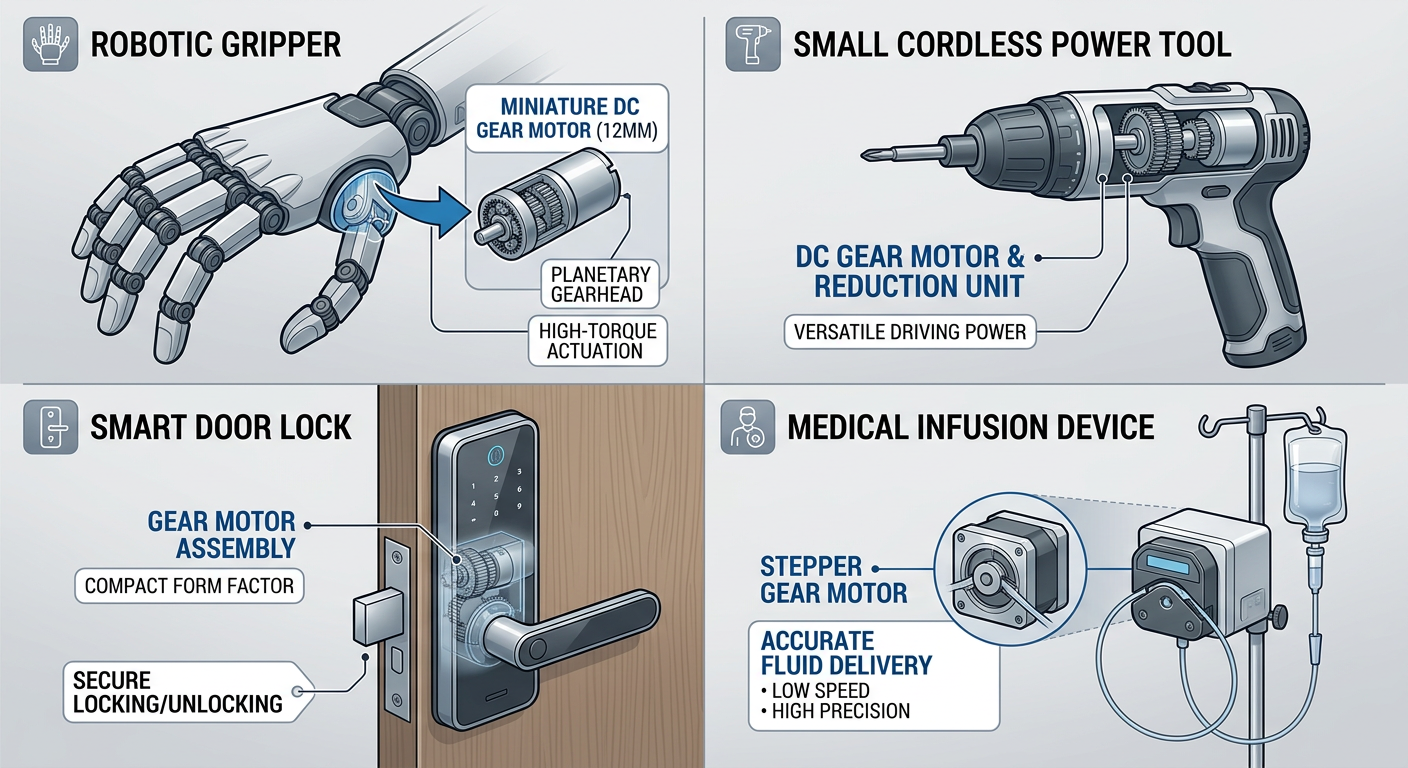

Real Applications — What Engineers Actually Pick

Robotic joints and grippers

Planetary, almost always. A 22 mm planetary gear motor with encoder feedback is the workhorse for small robotic arms, cobot end-effectors, and AGV steering modules. Load-sharing handles the unpredictable shock loads of pick-and-place work.

Power tools (compact)

Cordless screwdrivers, mini drills, small grinders — planetary. The torque density and shock tolerance map directly to how tools get abused.

Smart home and appliances

Spur. Automated blinds, soap dispensers, smart locks at the consumer end, pet feeders, vending mechanisms. Loads are light and predictable.

Medical infusion and diagnostic devices

Planetary, often with stepper or BLDC motors. Backlash and repeatability are non-negotiable.

Linear actuators

Depends on load. Light-duty consumer actuators (under 100 N) often use spur with a lead screw. Industrial or medical actuators above 200 N go planetary every time.

Curious how small these solutions can go? Our overview of mini gear motors in everyday devices shows how often these decisions show up in products you’d never think twice about.

Lifespan and Maintenance Realities

A well-designed planetary gear motor in proper operating conditions typically delivers 2,000–10,000 hours of useful life depending on load factor. Spur gear motors land in a similar range at light loads but degrade faster under high loads — single-tooth mesh points wear unevenly.

The biggest killers for both are the same: overloading, overheating, and contamination. Run a gear motor above its rated continuous torque and you’ll see lifespan collapse exponentially, not linearly. Cut load by 20% and you can double service life. That’s why proper sizing beats expensive components every time.

For practical wear-prevention tips that apply to either topology, see our notes on extending DC gear motor lifespan.

Picking the Right Gear Motor for Your Project

Quick recap: planetary for torque density, precision, and shock loads. Spur for cost-sensitive, light-load, intermittent designs. Don’t pay for planetary unless your load profile actually demands it — but don’t try to save a dollar on spur if your application punishes the gear train.

If you’re still weighing options for your specific design, SLW Motor offers both planetary and spur gear motor configurations from 6 mm to 38 mm diameter, with customizable ratios, voltages, and encoder options. Send us your torque, speed, and footprint targets and we’ll spec the right combination — get in touch with our engineering team or browse our full compact motor product range to see what’s available off-the-shelf.
