Brushed vs Brushless DC Motors: Which One Belongs in Your Next Product?

If your product runs intermittently and cost matters most, pick a brushed DC motor. If it runs continuously, needs to last years, or has to be quiet and efficient, pick a brushless DC (BLDC) motor. That single decision usually comes down to duty cycle, expected lifetime, and whether you can afford the driver electronics that BLDCs require — and the rest of this guide will help you weigh those trade-offs with real numbers.

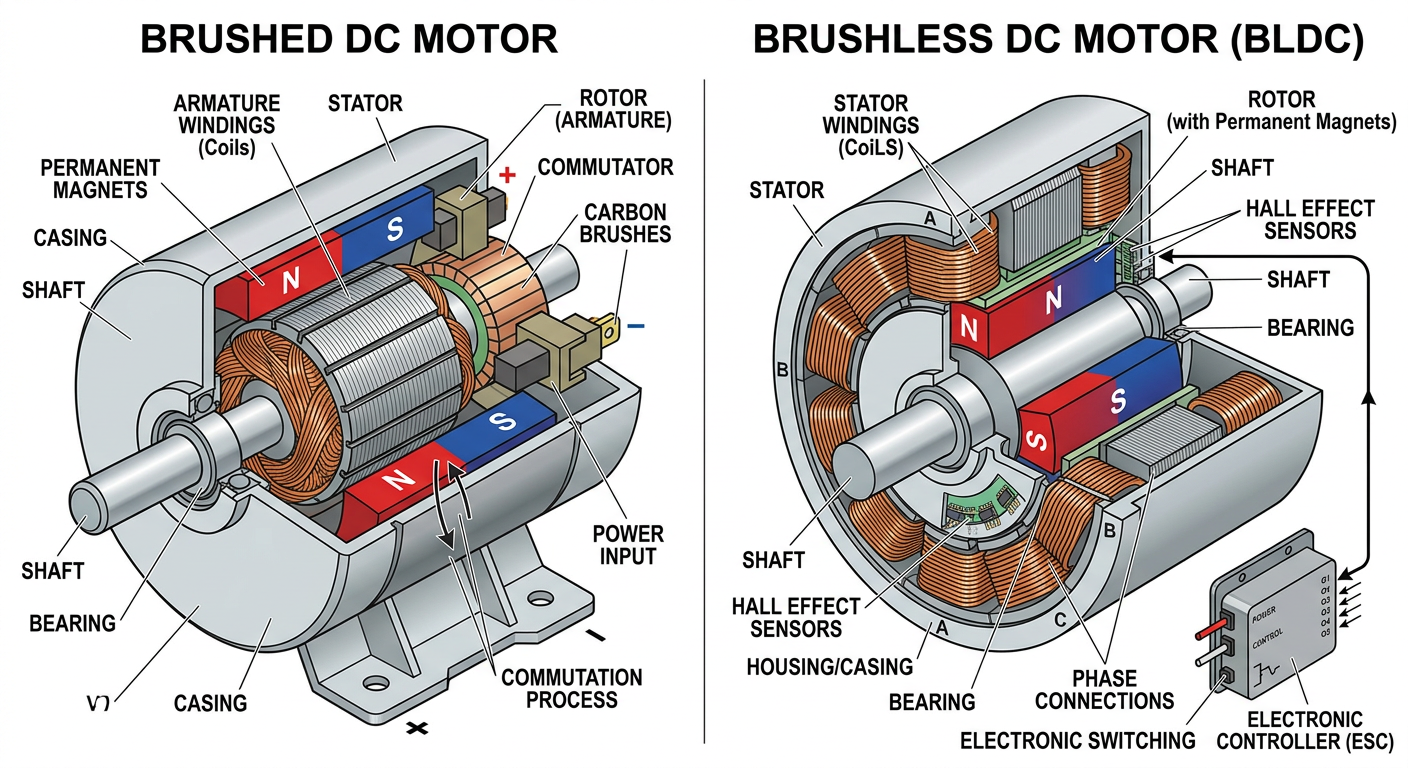

The Core Difference: How Commutation Happens

Everything else flows from one mechanical detail — how the motor switches current direction in the windings.

A brushed motor does it mechanically. Carbon brushes ride on a rotating copper commutator, physically flipping current as the rotor spins. It’s elegant and self-contained. It also wears out.

A brushless motor does it electronically. The windings sit on the stator, permanent magnets sit on the rotor, and an external driver (an ESC or BLDC controller) energizes the right coils at the right moment — typically guided by Hall sensors, back-EMF sensing, or an encoder.

That single design choice cascades into every spec sheet difference: efficiency, noise, lifespan, cost, and control complexity. For a deeper structural breakdown, see our complete guide to DC motor types.

Lifespan: The Single Biggest Practical Difference

Brushes wear. That’s not a flaw — it’s physics. Every brushed motor has a finite life because the brushes literally grind against the commutator.

Typical numbers for small 10–30 mm DC motors:

• Brushed: 1,000–3,000 hours of continuous run time before brush replacement or motor end-of-life.
• Coreless brushed: Often 1,000–5,000 hours — better balance, but still brush-limited.
• Brushless: 10,000–20,000+ hours, often limited by the bearings, not the motor itself.

For a product expected to run a few minutes a day — say, an electric lock or a coffee grinder — a brushed motor will outlast the product. For something running 8 hours a day, like a medical infusion pump or a 24/7 service robot, a BLDC is almost mandatory.

Cost: Where Brushed Still Wins

Don’t dismiss brushed motors. At small sizes, they’re genuinely hard to beat on cost.

A 12 mm brushed gear motor can land at $2–$5 in OEM volumes. An equivalent BLDC with an integrated driver might be $8–$20. Multiply that across 50,000 units a year and the BOM impact is real.

The hidden cost, though, is the driver. A brushed motor needs roughly nothing — a MOSFET and a PWM signal from your MCU. A BLDC needs a three-phase driver, sometimes Hall inputs, sometimes commutation firmware. That can add $1–$5 in components and weeks of firmware work.

Quick rule of thumb: if your product runs less than 1 hour per day and price is the dominant constraint, brushed wins on total cost. Above that, BLDC’s lifespan usually pays for itself.

Side-by-Side: The Comparison Table

Here’s the quick reference. Use it as a starting point, not a verdict — application context still matters more than any single row.

Efficiency and Heat: Why BLDCs Run Cooler

A brushed motor loses energy in three places: brush friction, brush-commutator contact resistance, and arcing. Together that’s typically 25–35% of input power gone as heat.

BLDCs skip all three. Their losses are mostly copper resistance and iron core hysteresis — usually 10–20%. In a tight enclosure, that difference is enormous.

Real example: a customer designing a handheld medical scanner switched from a 16 mm brushed gear motor to a 16 mm BLDC for the same torque output. Surface temperature after 30 minutes of continuous operation dropped from 62°C to 41°C. Same battery, longer runtime, and they could finally remove the heat-spreading copper tape from the housing.

If your design is overheating, our guide on why micro gear motors overheat covers the diagnostic steps before you swap motor types.

Noise, Vibration, and EMI

Brushes spark. That spark is broadband electrical noise — and it gets into nearby sensors, radios, and analog circuits. For a Bluetooth-enabled medical device or a Wi-Fi smart appliance, brushed EMI can fail FCC/CE testing outright.

BLDCs are quieter in three ways:

• Acoustic noise: No brush friction means 5–15 dB quieter at the same speed.
• Vibration: Better rotor balance, especially with slotless or coreless BLDC designs.
• EMI: No arcing. The driver’s PWM still generates noise, but it’s predictable and filterable.

If your product sits near a microphone, a sensitive sensor, or a wireless antenna — pick BLDC and save yourself the EMC re-spin.

Control: Simple PWM vs. Closed-Loop Precision

This is where engineers underestimate BLDC complexity — and overestimate brushed limitations.

A brushed motor: connect power, apply PWM, done. Speed scales roughly with voltage. Add an encoder if you need position feedback. It’s a one-afternoon integration.

A BLDC: you need a driver IC that handles three-phase commutation. Sensored BLDCs use Hall sensors for low-speed smoothness. Sensorless BLDCs use back-EMF detection — cheaper, but tricky at startup and low RPM. Add a microcontroller for closed-loop speed or position control, and now you’re writing firmware.

The upside? BLDCs give you precise, repeatable control. They can hold position, ramp smoothly, and reverse without arcing. For robotics joints, camera gimbals, and precision pumps, that control quality is the whole point.

If you need position accuracy, also check our notes on torque and speed specs to verify before committing to a motor family.

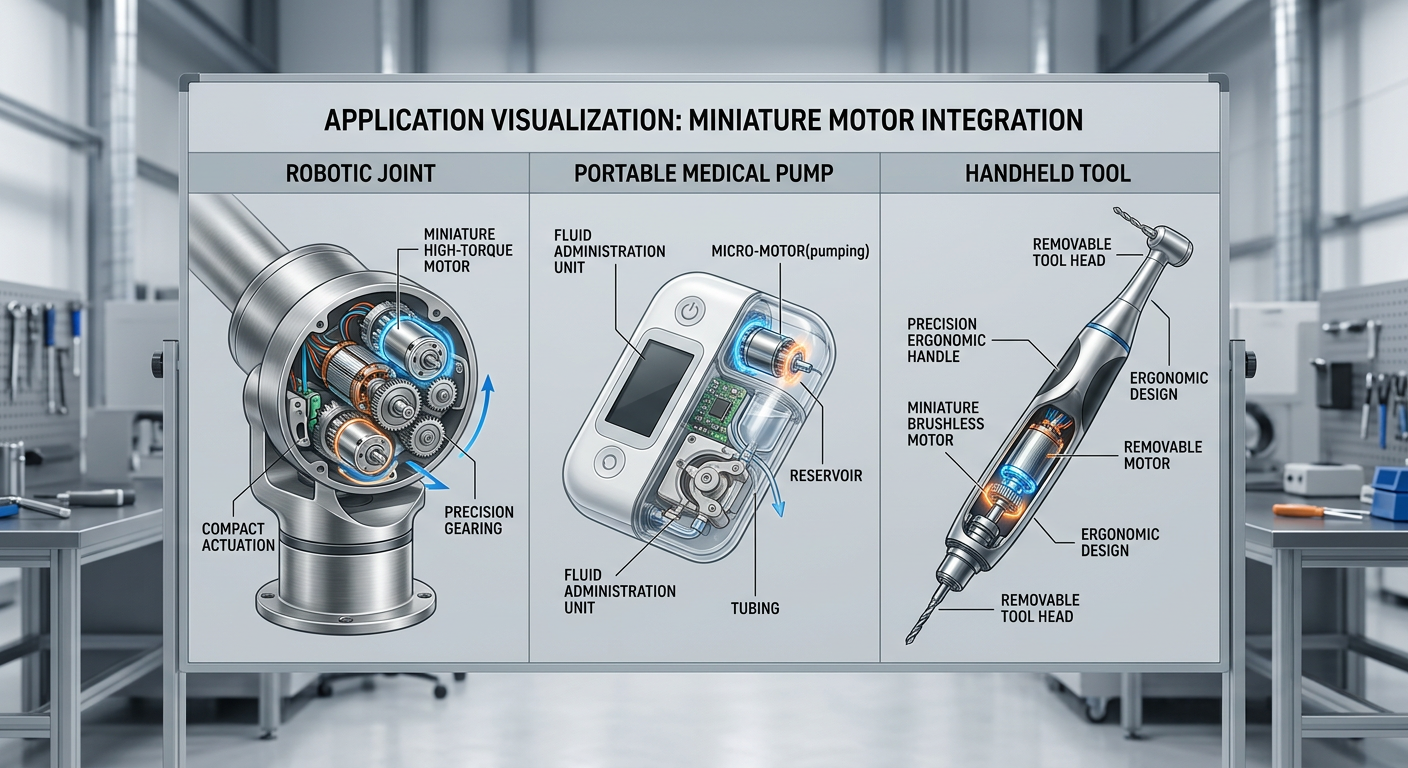

Application Matching: Pick by Use Case

Forget specs for a moment. Match by how the product actually gets used.

Brushed DC is the right call when…

• Low duty cycle — runs minutes, not hours (electric locks, vending dispensers, toy mechanisms)
• Cost is the dominant constraint and lifespan above 1,000 hours isn’t required
• Simple on/off or basic PWM speed is enough (small fans, vibration motors, basic actuators)
• Budget for driver electronics is essentially zero

Brushless DC is the right call when…

• Continuous or near-continuous duty (medical pumps, service robots, HVAC blowers)
• The product must last 5+ years without service
• Low noise or low EMI is non-negotiable (medical, audio, wireless devices)
• You need precise speed or position control with encoder feedback
• Battery efficiency directly affects runtime (drones, handheld tools, portable medical)

For instance, a sourcing manager building a smart pet feeder might happily pick a brushed gear motor — the auger runs 10 seconds, four times a day. A medical device team building a portable suction pump should pick BLDC every time — continuous run, FDA-relevant lifetime, and battery efficiency all line up.

What About Coreless and Slotless Variants?

Both technologies have premium variants worth knowing about.

Coreless brushed motors use a self-supporting copper coil instead of an iron-core rotor. Result: lower inertia, faster response, no cogging, and surprisingly long brush life because the current ripple is smoother. They’re popular in precision medical devices and small drones — but they cost 3–5× a standard brushed motor.

Slotless BLDCs remove the stator slots, eliminating cogging torque entirely. They’re the smoothest small motors money can buy, used in surgical tools and high-end camera gimbals. Again — premium pricing.

If your application needs the absolute lowest noise or smoothest motion at small sizes, these niche options often beat both standard categories. Browse our compact motor lineup to see size and torque ranges.

Don’t Forget the Gearbox

Most compact applications need a gear motor, not a bare motor. The gearbox choice often matters as much as brushed vs brushless.

A brushed motor with a planetary gearhead can deliver high torque cheaply — but the brush life still caps the assembly’s lifetime. A BLDC with the same planetary gearhead lasts as long as the bearings allow, but you’ve added cost on both ends.

One useful pattern: pair a BLDC with a quality planetary gearbox for long-life industrial products, and pair a brushed motor with a spur gearbox for cost-sensitive consumer devices. If standard ratios don’t fit, our piece on when to choose a custom gearbox walks through the decision.

Making the Call for Your Next Project

Here’s the shortcut: estimate annual run hours. Multiply by expected product lifetime in years. If the result is under 1,000 hours, a brushed motor is probably the smarter buy. Above 3,000 hours, BLDC almost always wins on total cost of ownership once you factor in field failures, warranty claims, and replacement labor.

Between those numbers, weigh noise, EMI, control precision, and BOM budget. And remember — the cheapest motor that fails in the field is never actually cheap.

If you’d like a second opinion on your specific torque, speed, voltage, and lifetime targets, send us your spec and our application engineers will recommend a brushed or brushless configuration that actually fits. We stock both families across 6–40 mm diameters, with gearbox, encoder, and driver options ready for OEM integration.
