25mm Diameter Brushed DC Motor With Worm Gearbox

A 370 motor paired with a 25mm worm stage provides controlled low-speed output and right-angle transmission in compact electromechanical assemblies.

Get a Quote

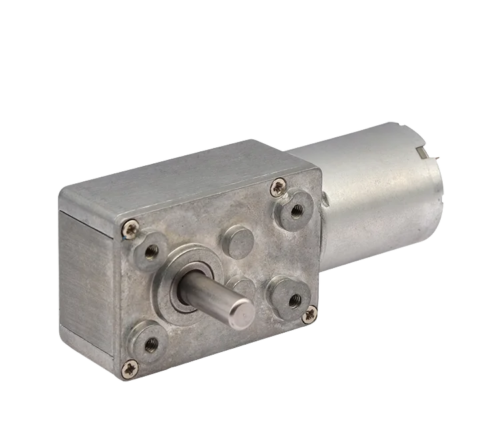

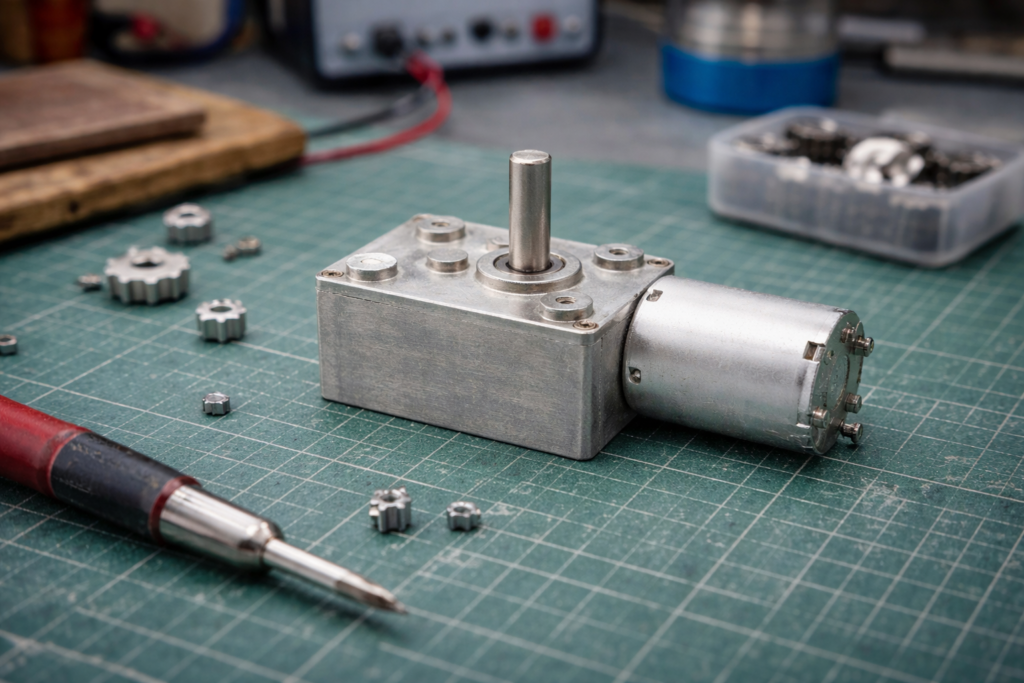

25mm 370 brushed DC motor with worm gearbox for stable speed reduction
Specs

Key Features

Designed around a 370 brushed DC motor and compact worm gearbox, this model emphasizes stable reduction and controlled output for small to mid-size mechanical systems.

  • Worm gearbox structure supports stable speed reduction

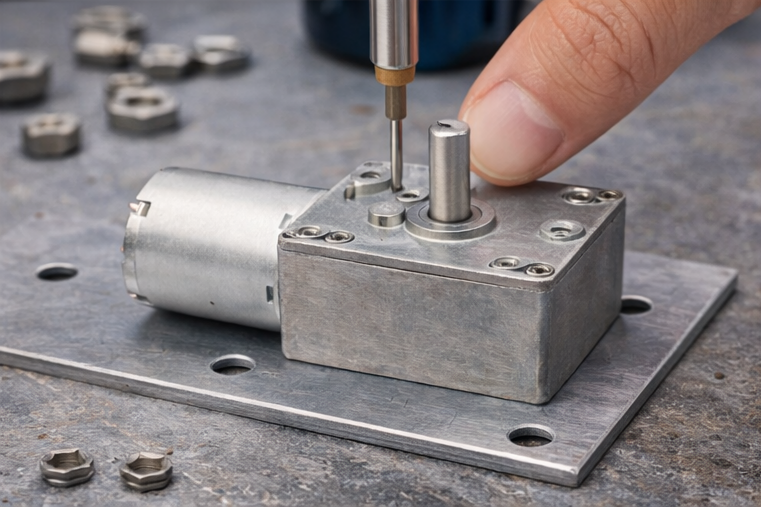

  • Integrated motor and gearbox assembly for simplified installation
  • Supports a wide operating voltage range from 6V to 24V
  • Compact gearbox size suitable for space-limited designs

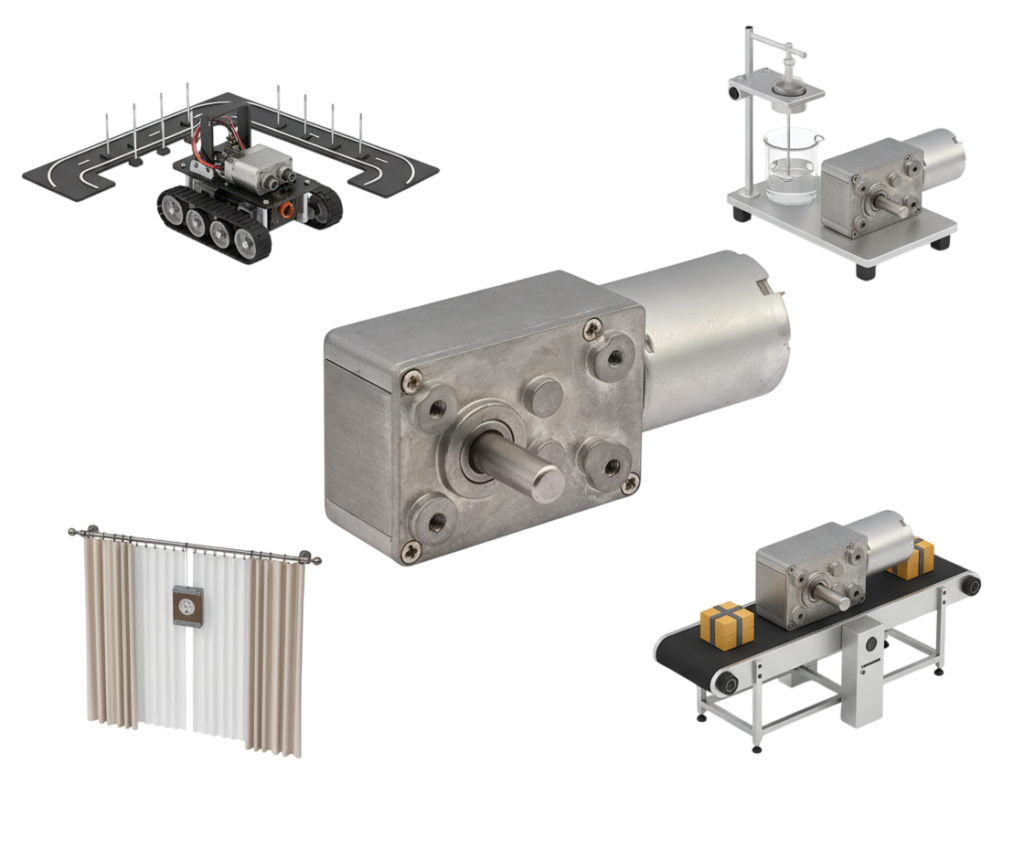

  • Commonly applied in compact drive and positioning mechanisms
technical Specs

Motors Specifications

Reduction ratio No-Load Rated Load Stall
Rated Voltage (V) Speed (RPM±10%) Current (A) Speed (RPM±10%) Current (A) Torque (Kg.cm) Power (W) Torque (Kg.cm) Current (A)
32.5 24 185 0.08 145 0.42 1.0 2.4 3.5 0.93
53.5 24 112 0.08 95 0.42 1.5 2.4 4.2 0.93
62.4 24 96 0.08 85 0.42 2.0 2.4 5.8 0.93
68.7 24 87 0.08 75 0.42 2.5 2.4 6.5 0.93
77.7 24 77 0.08 62 0.42 3.0 2.4 7.5 0.93
100 24 60 0.08 48 0.42 4.0 2.4 9.0 0.93
132 24 45 0.08 40 0.42 5.0 2.4 11 0.93
150 24 40 0.08 34 0.42 5.0 2.4 12 0.93
168 24 35 0.08 31 0.42 6.0 2.4 15 0.93
192 24 31 0.08 28 0.42 6.0 2.4 16 0.93
300 24 20 0.08 17 0.42 10.0 2.4 20 0.93
324 24 18 0.08 15 0.42 10.0 2.4 22 0.93
506 24 12 0.08 8 0.42 16.0 2.4 50 0.93
600 24 10 0.08 7 0.42 20.0 2.4 60 0.93
1012 24 6 0.08 3.5 0.42 25.0 2.4 70 0.93
3037 24 2 0.08 1 0.42 25.0 2.4 120 0.93

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Focused on Worm Gear Motor Integration

    SLW Motor develops integrated worm gear motor solutions designed for stable reduction and controlled output.

  • Stable Assembly Structure

    Standardized motor and gearbox integration helps maintain consistent alignment and mechanical reliability.

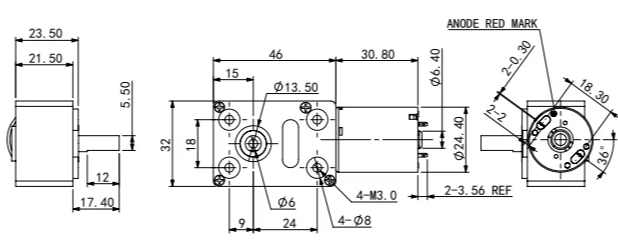

  • Clear Dimensional Definition

    Defined gearbox and motor dimensions support straightforward mechanical layout and enclosure design.

  • Suitable for Continuous Supply

    This model is structured for repeatable production and long-term availability in standard configurations.

Custom

Beyond the Standard: Performance Customized

  • 01

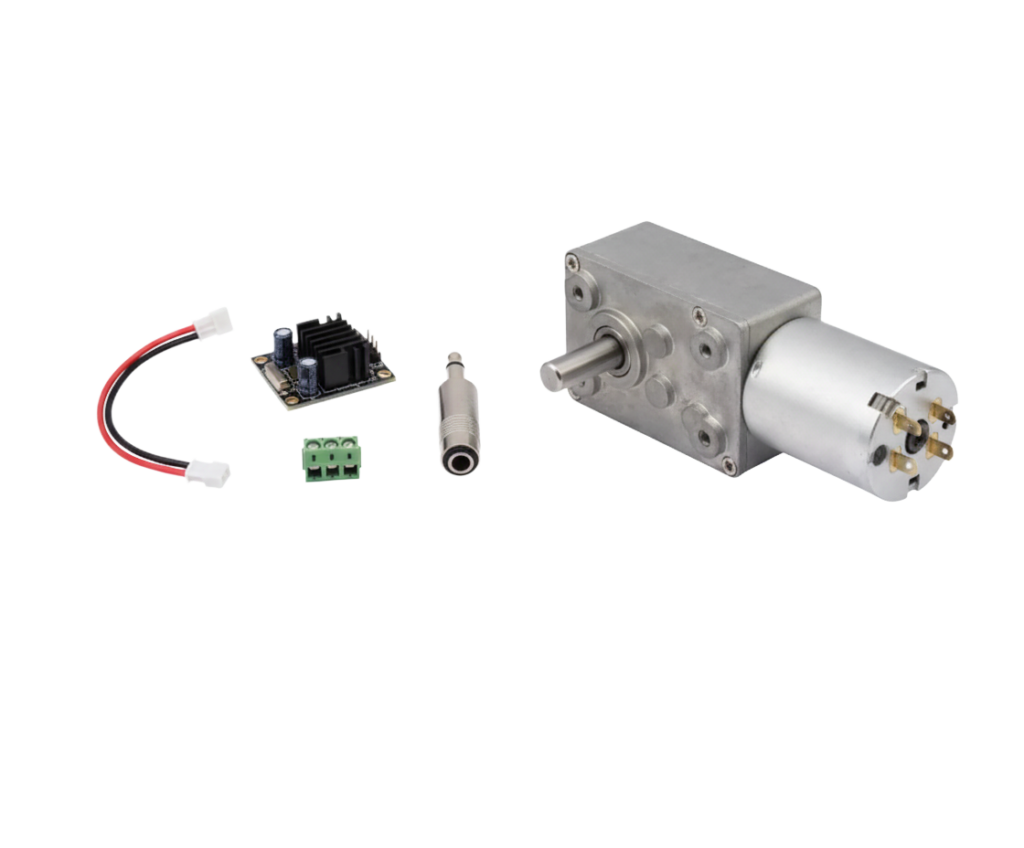

    Voltage Configuration
    Selectable operating voltage within the supported 6V–24V range.
  • 02

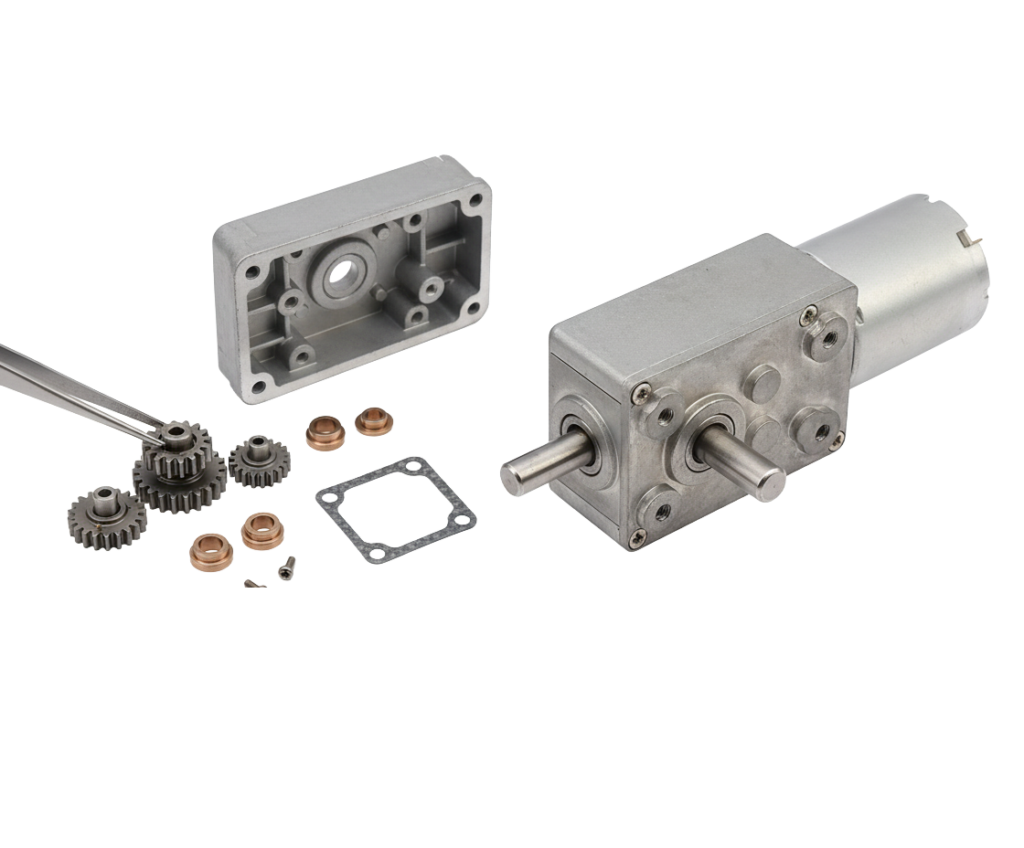

    Gearbox Structure
    Worm gearbox configuration matched to the 370 motor platform.
  • 03

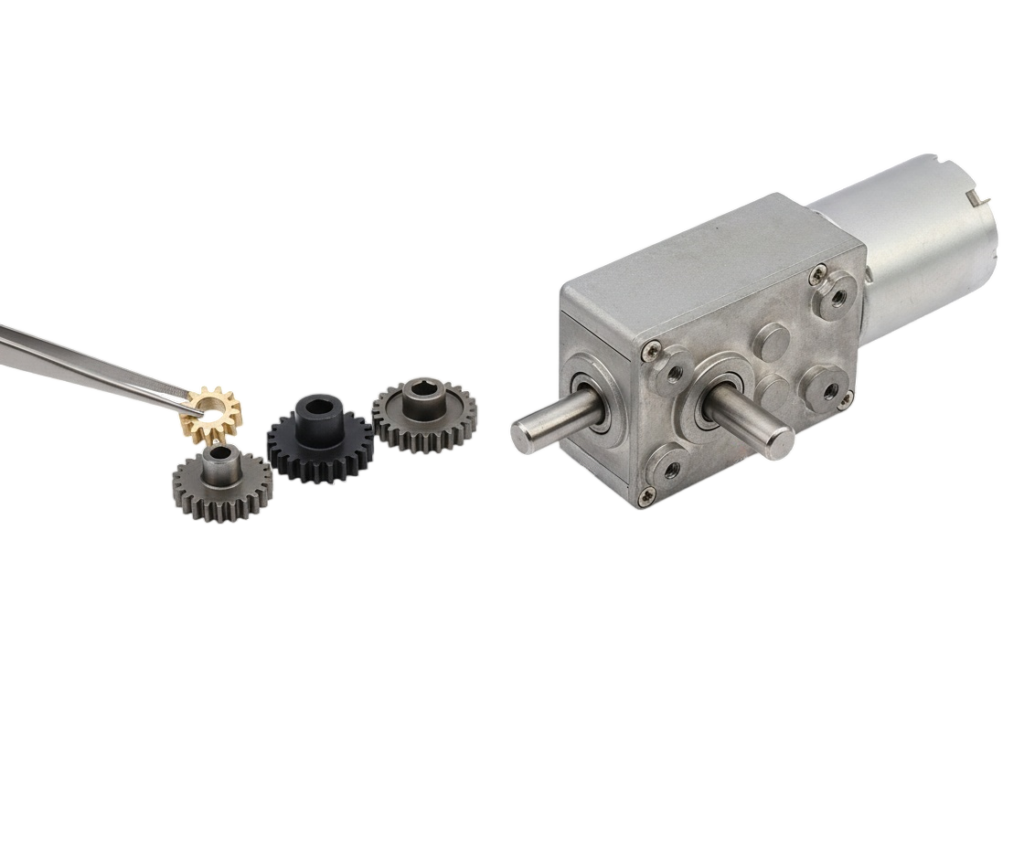

    Gear Materials
    Material options can be selected according to application conditions.
  • 04

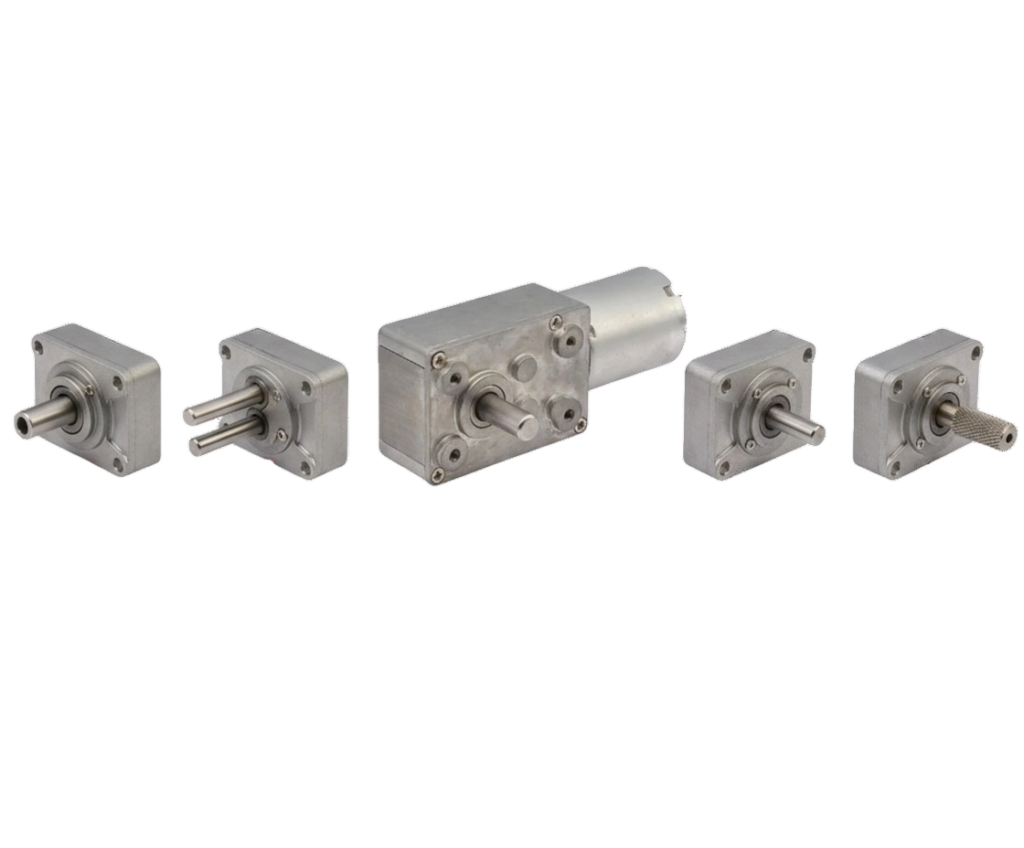

    Output Shaft Options
    Output shaft length and end style can be adjusted upon request.
  • 05
    Application-Based Requests
    Customization can be discussed based on specific design and integration needs.
  • Voltage Configuration
  • Gearbox Structure
  • Gear Materials
  • Output Shaft Options
  • Application-Based Requests

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

For detailed selection guidance or project-specific requirements, please contact our team for further support.

What type of gearbox is used in this motor?
This model uses a worm gearbox designed to provide stable speed reduction.
What voltage range does this motor support?
It supports operation within a 6V to 24V voltage range.
Is the motor and gearbox supplied as a single unit?
Yes. The motor and gearbox are supplied as an integrated assembly.
Is this model suitable for compact installations?
Yes. The gearbox and motor dimensions are designed for space-limited applications.
Can this motor be customized for specific projects?
Basic customization options are available depending on application requirements and production volume.
