12mm Diameter Brushed Motor With Parallel Output Shaft Gearbox

The offset parallel-shaft layout helps route power through confined assemblies where a standard coaxial installation is not practical.

Get a Quote

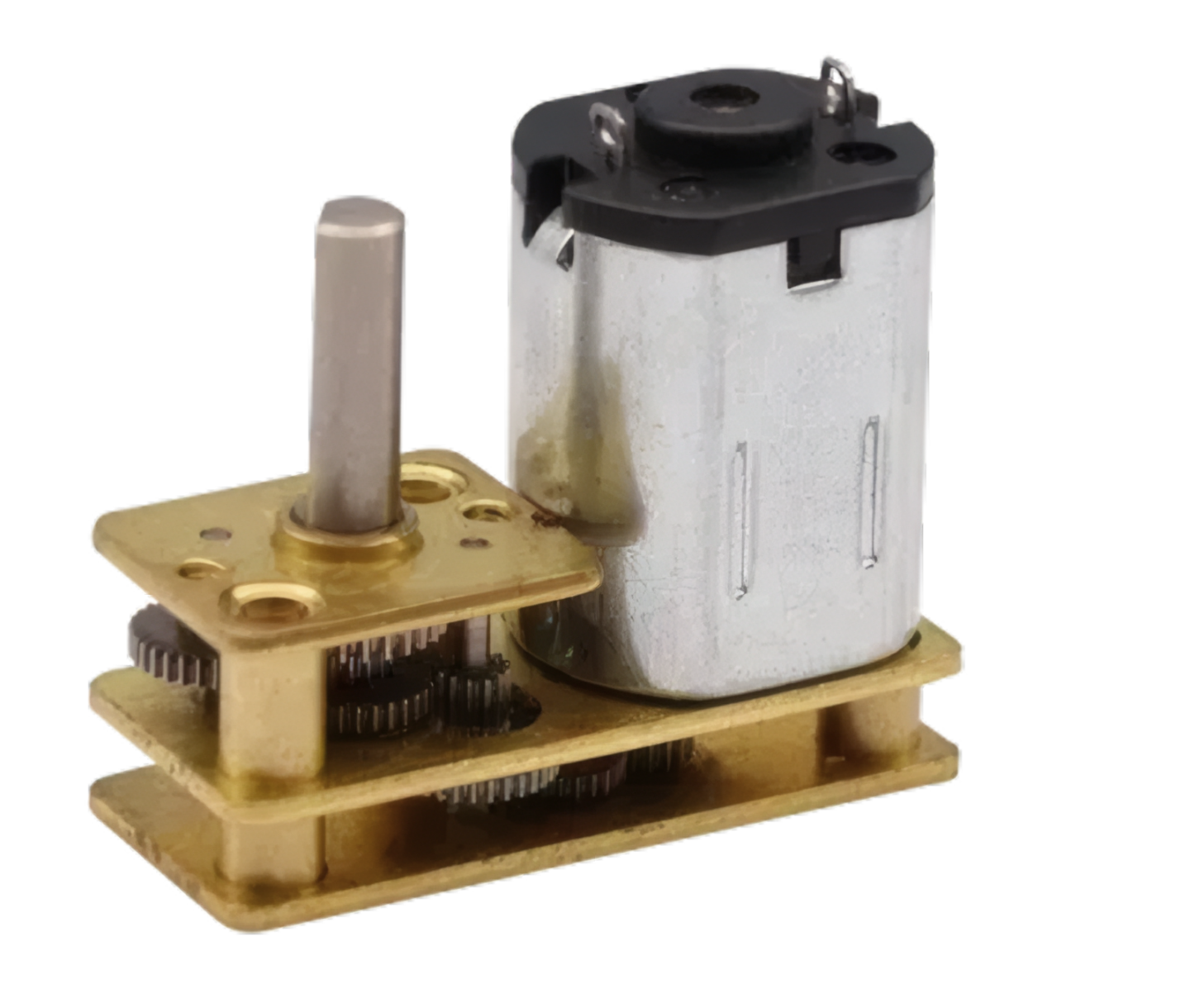

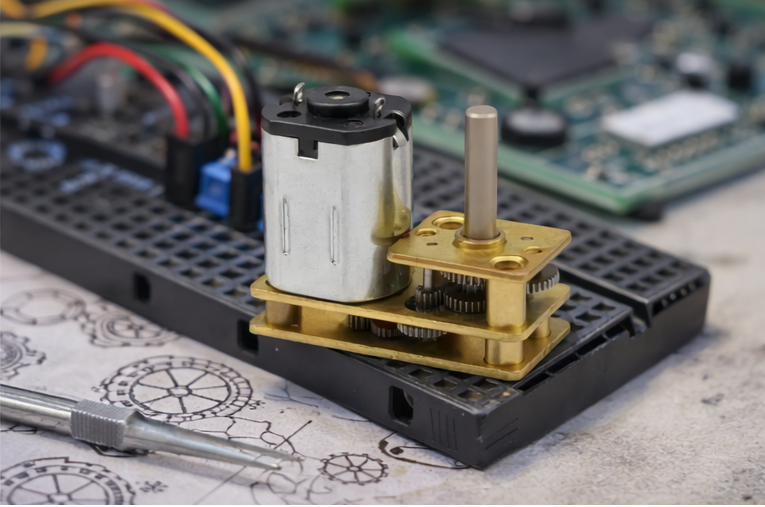

12mm N20 brushed motor with parallel output shaft gearbox for offset layouts
Specs

Key Features

This model uses a parallel output shaft gearbox to support alternative mounting and transmission arrangements within compact devices.

  • Parallel output shaft design for non-inline transmission layouts
  • Compact 12mm diameter motor platform suitable for space-limited systems
  • Integrated motor and gearbox structure for simplified installation
  • Supports a wide applied voltage range for flexible power design
  • Commonly used where shaft alignment flexibility is required
technical Specs

Motors Specifications

Reduction ratio No-Load Rated Load Stall
Rated Voltage (v) Speed (RPM±10%) Current (mA) Speed (RPM±10%) Current (mA) Torque (g.cm) Power (W) Torque (g.cm) Current (mA)
18 12 1055 21 9000 65 16 0.8 110 340
42 12 452 21 385 65 38 0.8 257 340
63 12 301 21 257 65 57 0.8 385 340
80 12 237 21 202 65 72 0.8 490 340
102 12 186 21 158 65 92 0.8 624 340
105 12 180 21 154 65 95 0.8 642 340
115 12 165 21 140 65 104 0.8 703 340
121 12 157 21 103 65 109 0.8 740 340
127 12 149 21 108 65 114 0.8 777 340
157 12 121 21 103 65 141 0.8 960 340
244 12 77 21 66 65 220 0.8 1493 340
298 12 63 21 54 65 268 0.8 1823 340
302 12 62 21 53 65 272 0.8 1848 340
311 12 61 21 52 65 280 0.8 1903 340
345 12 55 21 46 65 310 0.8 2111 340
604 12 31 21 26 65 543 0.8 3696 340
898 12 21 21 18 65 808 0.8 5459 340
992 12 19 21 16 65 992 0.8 6071 340
1032 12 18 21 15 65 928 0.8 6315 340
1576 12 12 21 10 65 1418 0.8 9645 340

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Alternative Shaft Alignment Options

    Parallel output configurations allow designers to manage space and alignment constraints more effectively.

  • Compact Structural Integration

    The gearbox structure is designed to maintain a small footprint while offering layout flexibility.

  • Consistent Assembly Process

    Standardized assembly supports stable structure and repeatable production.

  • Suitable for Compact Product Designs

    Well-suited for devices where inline shaft layouts are not feasible.

Custom

Beyond the Standard: Performance Customized

  • 01

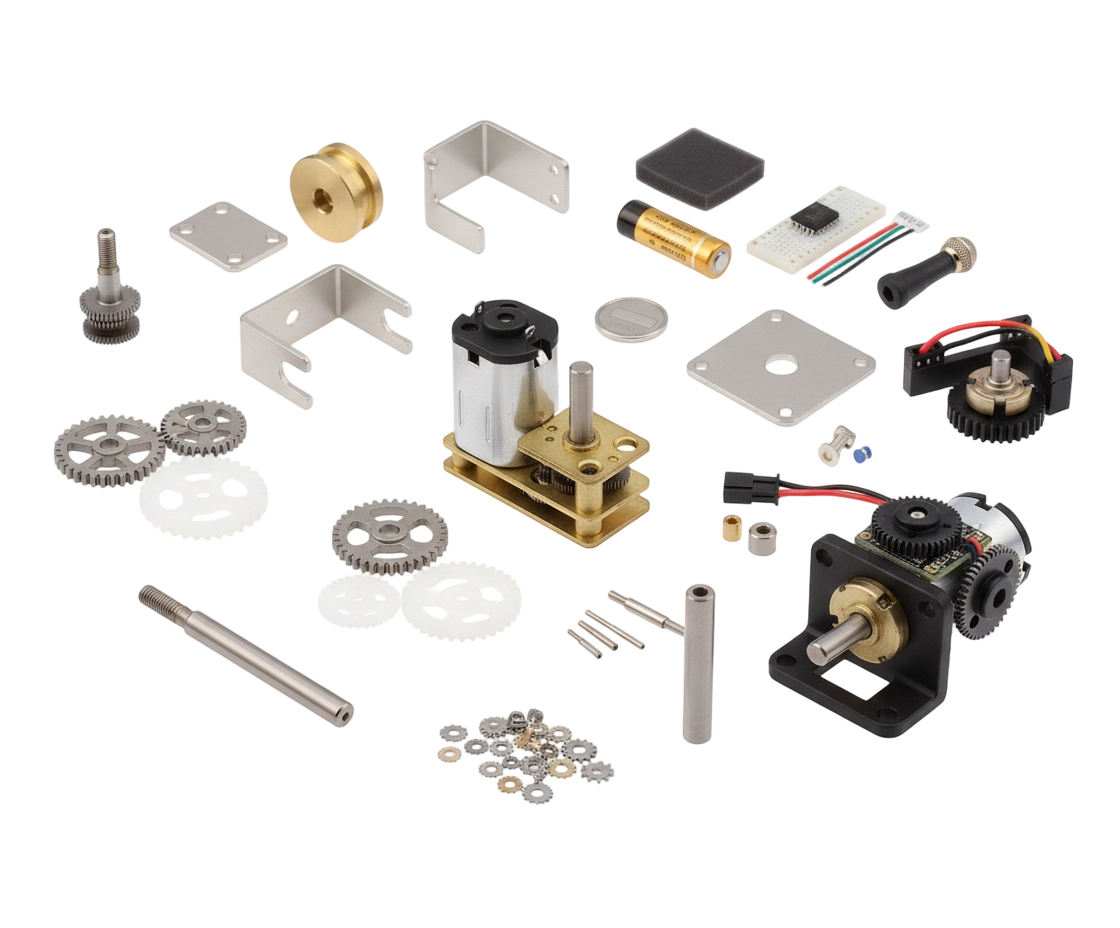

    Voltage Configuration
    Voltage can be selected within the supported range.
  • 02

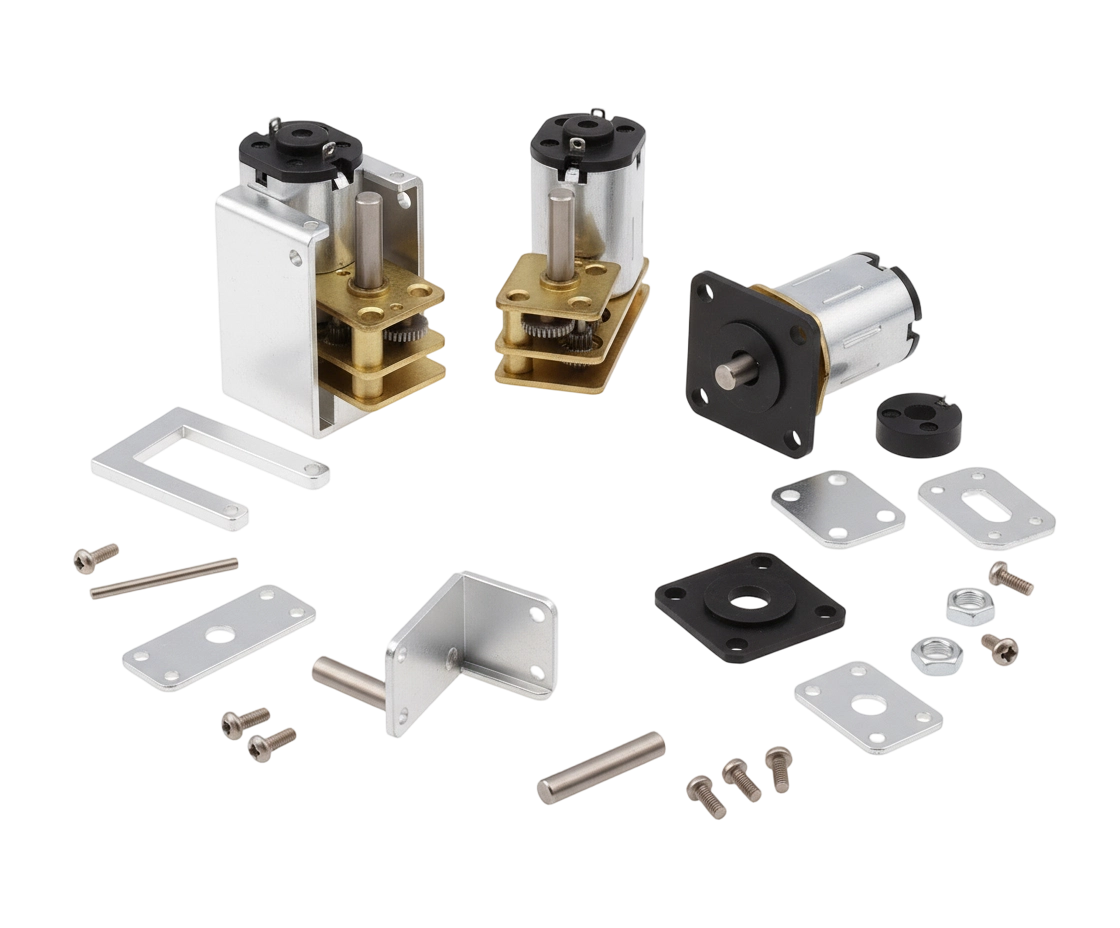

    Gearbox Orientation
    Parallel shaft gearbox matched to the N20 motor.
  • 03

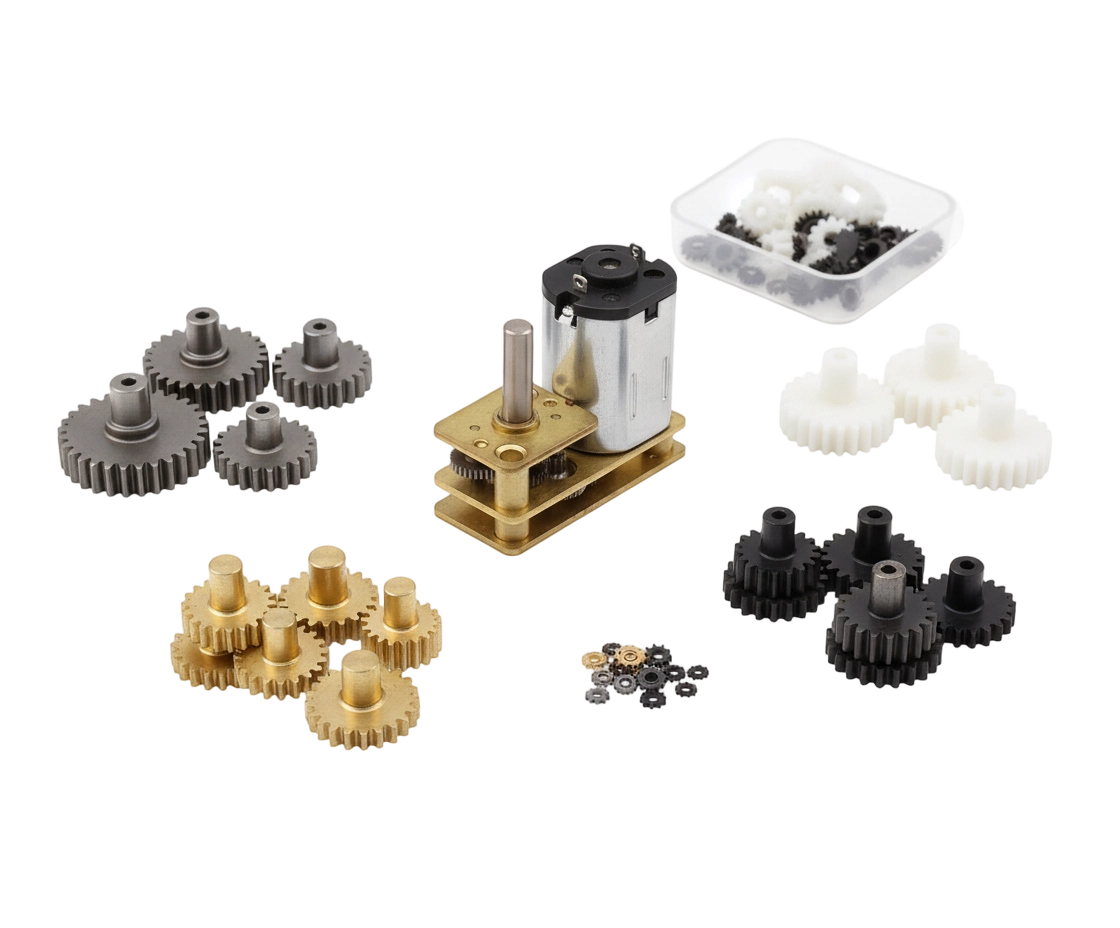

    Gear Material Options
    Material selection available upon request.
  • 04

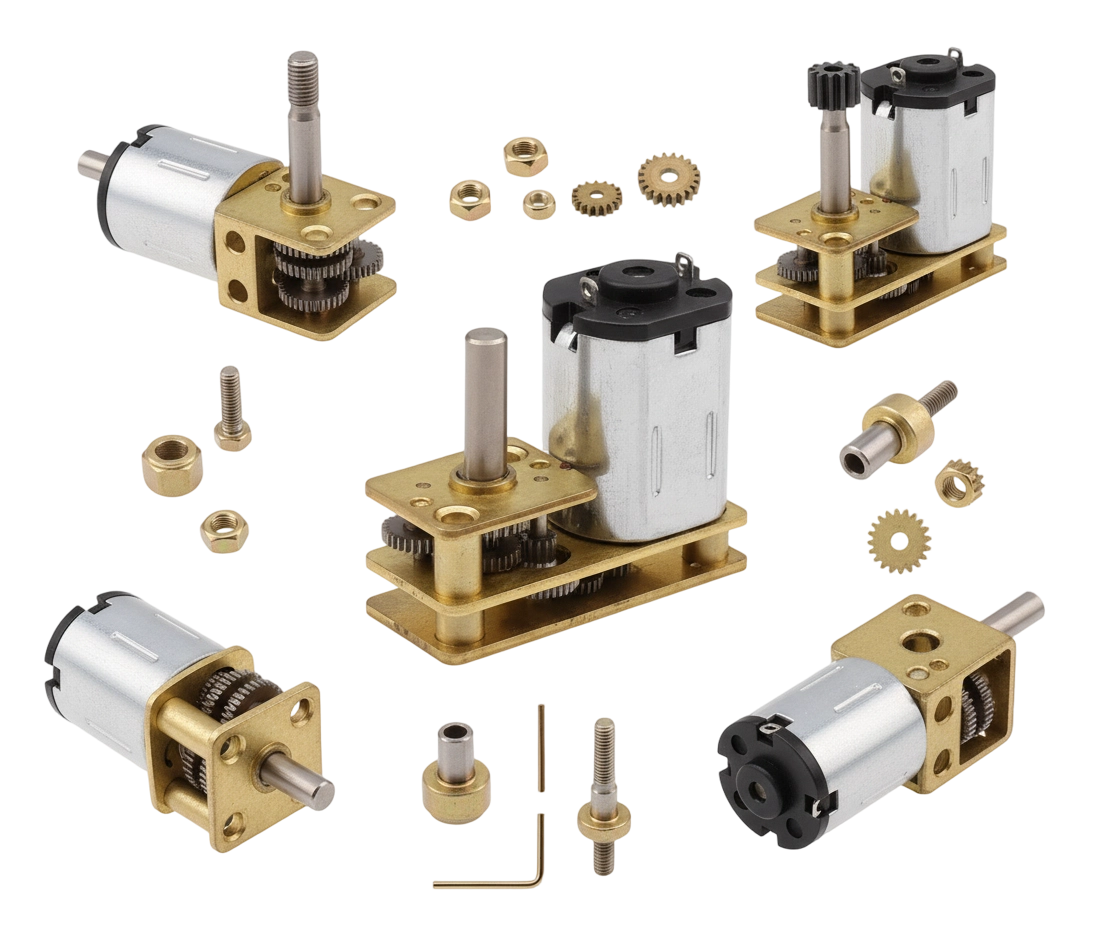

    Output Shaft Adjustments
    Shaft dimensions can be adapted if required.
  • 05

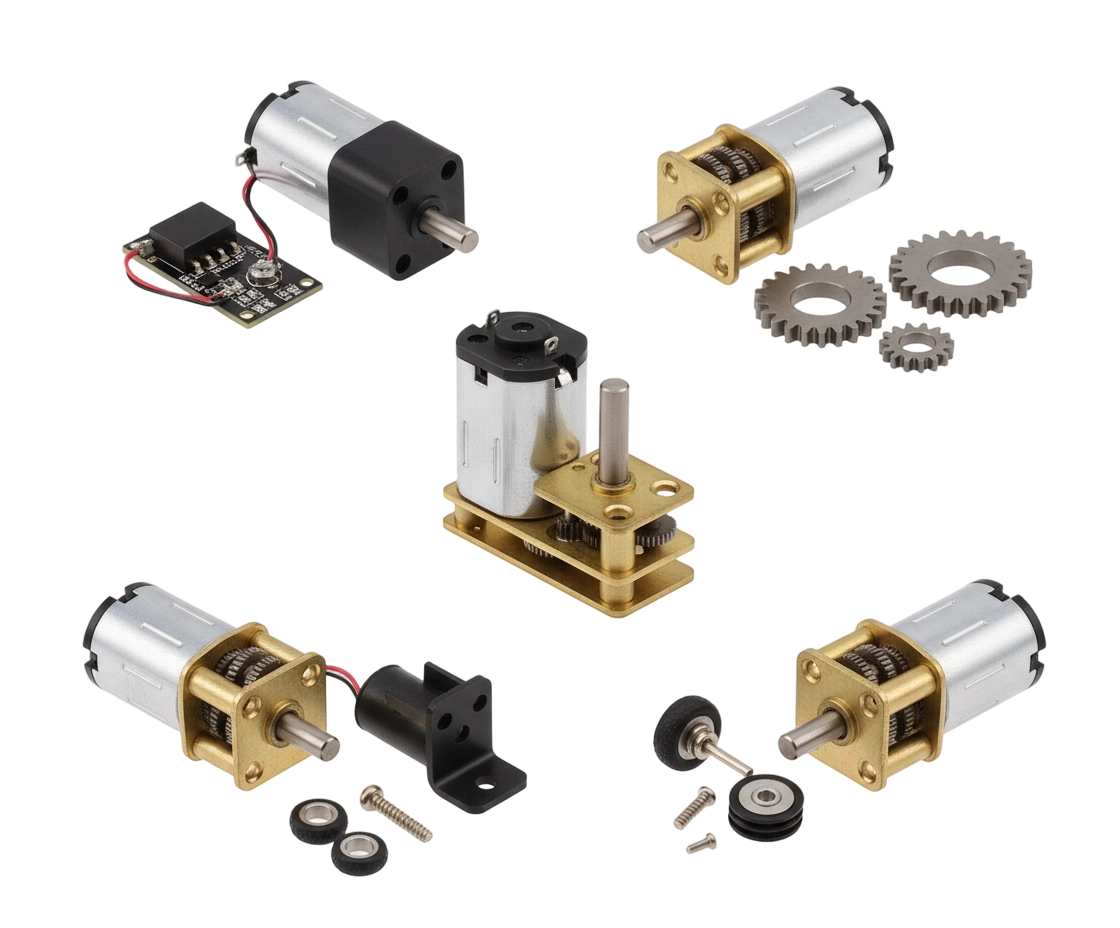

    Application-Based Requests
    Customization reviewed based on project layout needs.
  • Voltage Configuration
  • Gearbox Orientation
  • Gear Material Options
  • Output Shaft Adjustments
  • Application-Based Requests

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

This model is commonly selected for designs requiring compact size with flexible shaft positioning.

What is the advantage of a parallel output shaft gearbox?
It allows offset shaft alignment, making it easier to fit into constrained or non-linear mechanical layouts.
Is this model suitable for compact devices?
Yes. It is designed for compact systems that require alternative shaft positioning.
Does this product include the gearbox as standard?
Yes. The motor and gearbox are supplied as a single integrated unit.
Can this motor support different voltage systems?
Yes. It supports a wide applied voltage range.
Is customization available?
Basic customization options are available based on application needs.
