12mm Diameter 20 Micro Brushed Motor With Gearbox

The longer N30 motor body increases available output capacity without enlarging the compact 12mm gearbox footprint.

Get a Quote

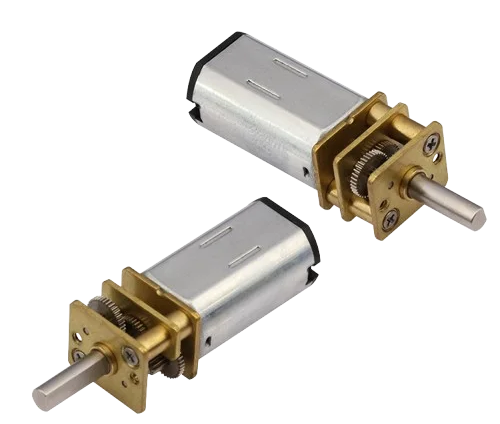

12mm N30 micro brushed motor with gearbox with extended motor length
Specs

Key Features

Based on the 12mm gearbox platform, the N30 version provides an extended motor body while maintaining a compact gearbox interface.

  • 12mm diameter gearbox compatible with compact layouts
  • Longer motor structure compared to N20 variants
  • Integrated gearbox and motor assembly for stable alignment
  • Wide applied voltage range supporting flexible power design
  • Suitable for applications requiring higher motor capacity in small spaces
technical Specs

Motors Specifications

Reduction ratio 10 30 50 100 150 210 250 298 380 1000
Gearbox length mm 9 9 9 9 9 9 9 9 9 12
No-load speed rpm 1200 410 245 120 82 60 50 42 33 12.5
Rated speed rpm 1070 355 210 105 70 50 42 36 28 11
Rated torque Kg.cm 0.024 0.06 0.09 0.18 0.25 0.35 0.38 0.45 0.5 1.0
Max. momentary tolerance torque Kg.cm 0.14 0.38 0.50 1.10 1.50 2.10 2.20 2.50 2.50 3.00

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Extended Motor Configuration

    The N30 motor length provides additional capacity while retaining the same gearbox footprint.

  • Shared 12mm Gearbox Platform

    Using a common gearbox size simplifies interchangeability across 12mm motor variants.

  • Consistent Assembly Quality

    Standardized assembly processes ensure stable alignment and dimensional consistency.

  • Project-Friendly Selection

    This model allows designers to scale motor size without changing mounting structure.

Custom

Beyond the Standard: Performance Customized

  • 01
    Voltage Matching
    Operating voltage can be selected within the supported range.
  • 02
    Gearbox Platform
    Inline spur gearbox matched to the 12mm motor series.
  • 03
    Gear Material Options
    Material selection available based on application conditions.
  • 04
    Output Shaft Configuration
    Shaft length and end form can be adjusted if required.
  • 05
    Project-Specific Requests
    Customization can be reviewed according to application needs.
  • Voltage Matching
  • Gearbox Platform
  • Gear Material Options
  • Output Shaft Configuration
  • Project-Specific Requests

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

For model comparison or project-specific selection, please contact our team.

How does the N30 differ from N20 motors?
The N30 features a longer motor body, providing higher capacity within the same gearbox size.
Is the gearbox size the same as other 12mm models?

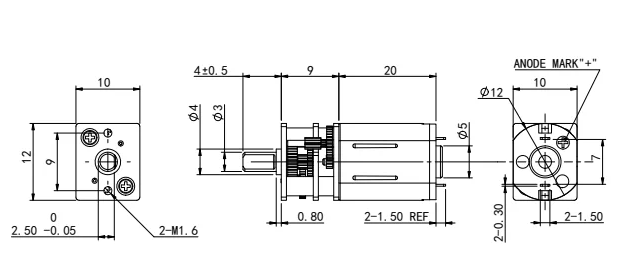

Yes. It uses the same 12 × 10 × L9 mm gearbox platform.
Is this motor suitable for compact installations?
Yes. It maintains a compact footprint despite the longer motor length.
Does this model support stable supply?
Yes. It is suitable for continuous production and repeat orders.
Can this motor be customized?
Customization options are available depending on application requirements.
