10mm Planetary Gearbox & Reducer

This 10mm planetary gearbox is precision-machined for compact, coaxial transmissions that need stable output alignment and flexible ratio selection across different stage lengths.

Get a Quote

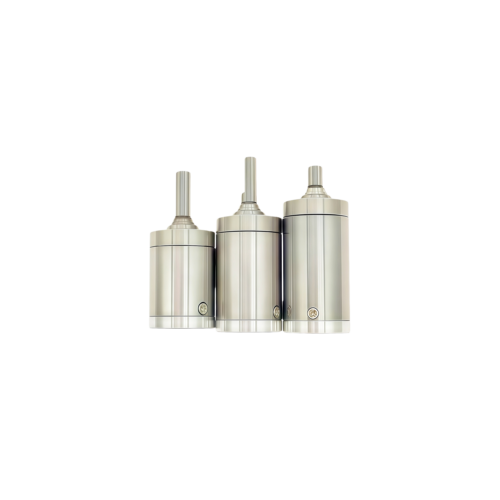

  • 10mm Planetary Gearbox & Reducer Featured Image
Specs

Key Features

This planetary gearbox uses a precision-machined structure to deliver coaxial reduction in compact assemblies while keeping ratio and shaft interfaces configurable.

  • Precision machining gearbox structure for consistent fit and alignment
  • Coaxial planetary layout supports stable output and compact packaging
  • Multi-stage ratio options with defined length by stage class
  • Broad reduction coverage for low-speed positioning and torque-focused outputs
  • Customizable output shaft interface for different couplers and assemblies

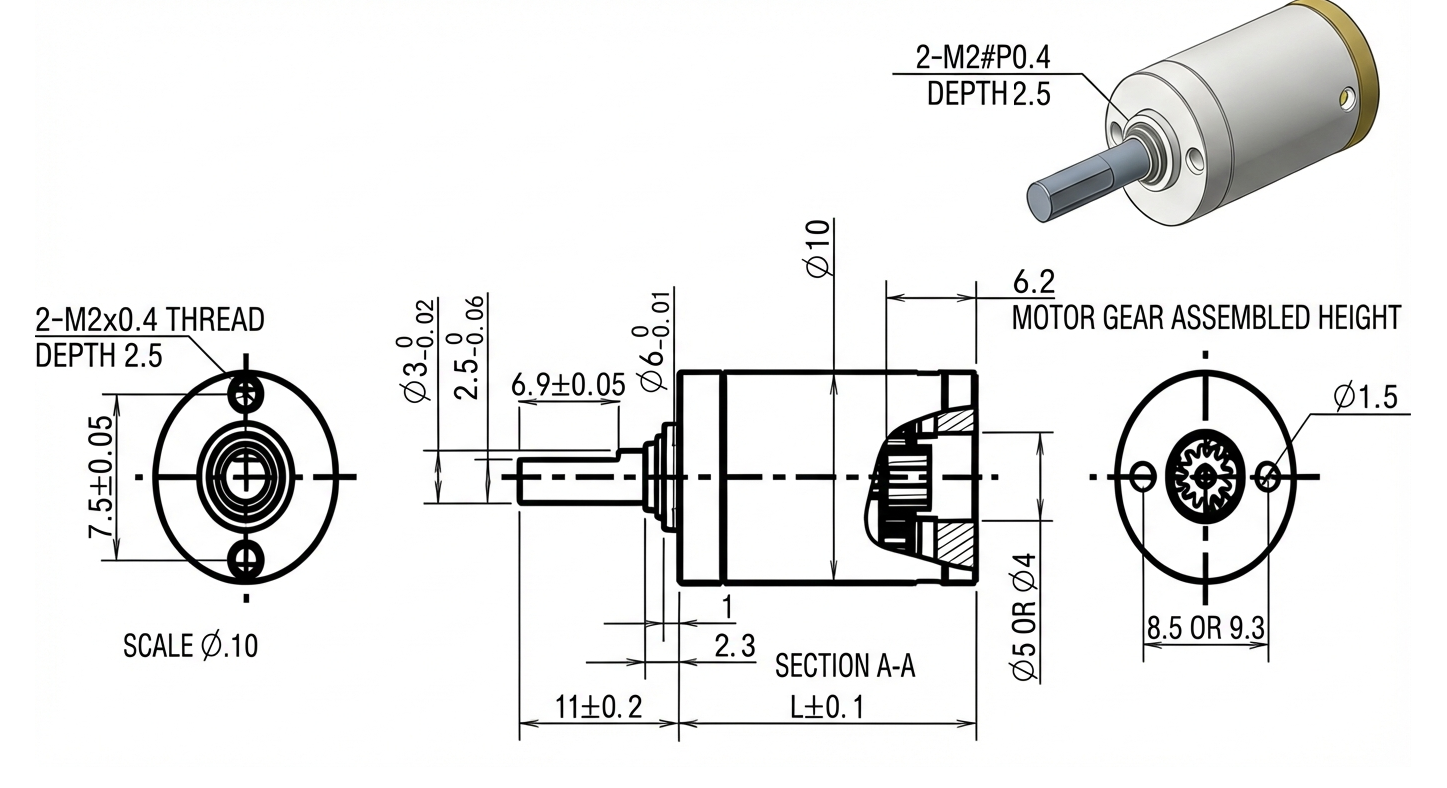

technical Specs

Motors Specifications

Stage Available Gear Ratios Length (mm)
Stage 1 3, 16, 19 10.25
Stage 2 12, 14, 16, 16, 19, 22 13
Stage 3 42, 49, 56, 58, 64, 66, 76, 79, 90, 107 15.75
Stage 4 150, 171, 196, 203, 224, 232, 256, 266, 276, 304, 315, 361, 375, 428, 509 18.5

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Coaxial output for compact alignment

    Planetary reduction keeps input and output on the same axis, which helps when you need a clean mechanical stack-up in tight spaces.

  • Stage-based sizing with clear length selection

    Each stage class has a defined length, making it easier to plan packaging while selecting the target reduction ratio.

  • Precision-machined interface for stable assembly

    A machining-based gearbox structure supports consistent fit when the gearbox is treated as a small transmission module in repeat builds.

  • Ratio flexibility without changing the basic form factor

    Multiple ratio options are available across stage counts, supporting both moderate reduction and higher reduction needs within the same diameter class.

Custom

Beyond the Standard: Performance Customized

  • 01
    Lead Routing Design
    Lead paths can be planned around the gearbox installation to avoid conflicts with mounting space and coupler clearance.
  • 02
    Tailored Shaft Interface
    Shaft end shape can be customized to fit your coupling method, improving assembly consistency and anti-slip performance.
  • 03
    Mounting Orientation
    Share mounting and load directions to ensure stable operation under actual side and axial loads.
  • 04
    Control System Alignment
    For start/stop, reversing, or holding applications, control settings can be tuned to minimize peak torque durations and maintain repeatability.
  • 05
    Application-Specific Configuration
    Provide load type, duty cycle, and target output speed to select the appropriate stage count and gear ratio for optimal performance.
  • Lead Routing Design
  • Tailored Shaft Interface
  • Mounting Orientation
  • Control System Alignment
  • Application-Specific Configuration

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

Higher stage count is typically selected to increase reduction ratio while extending gearbox length and reducing overall efficiency.

Why choose a planetary gearbox instead of a spur gearbox in compact systems?
Planetary gearboxes keep a coaxial layout and typically support higher reduction options within a compact diameter class.
How do I choose the stage count?
Select the reduction ratio first, then match the stage class to the corresponding length requirement for your available space.
Does higher reduction always mean a longer gearbox?
In this series, higher stage counts correspond to longer lengths, so reduction selection should be checked against packaging limits.
Can the output shaft be customized?
Yes. Output shaft interface can be customized to match your coupler, hub, or direct-drive connection method.
What information do you need to confirm the best ratio option?
Target output speed, load torque, duty cycle, and any space or mounting constraints.
